Portable Pregnancy Ultrasound Scanner with Abdominal Convex Transvaginal Transducers

Categories Portable Ultrasound Scanner
Brand Name: BIO
Model Number: 3000W
Place of Origin: China
MOQ: 30 sets
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Delivery Time: 7 working - days since getting full payment
Packaging Details: Suit Case: 465mm*390mm*205mm,1pc/carton
Imaging Modes: B, B|B, 4B, B|M, M
Display: 15 inch LED Screen
Gray: 256
Scanning Depth: 2~24cm
Measurements and Calculations Software Packages: Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc.
Probe frequency: 2.5~10MHz
Probe connector: 1
warranty: 12 months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

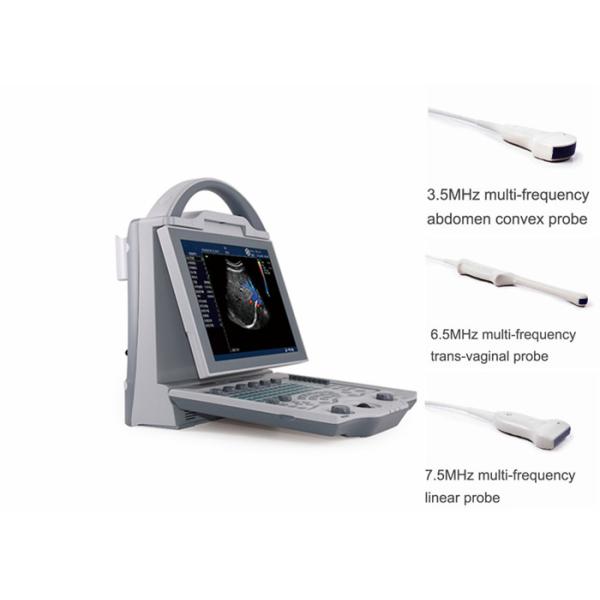

    Portable Pregnancy Ultrasound Scanner with Abdominal Convex Transvaginal Transducers

    Portable Pregnancy Ultrasound Scanner with Abdominal Convex Transvaginal Transducers

    BIO 3000W Ultrasound System is a very high cost-effective device, for it with good image, powerful functions and also pretty appearance, but price is inexpensive.

    Main features:

    1.Color 15' LCD monitor with high resolution, USB port;
    2.Light weight of 2.0kgs, and Laptop design;
    3.U Disk for upgrade.
    4.Built-in battery can drive the main unit to work for more than 3 hours;
    5.General, OB/GYN, cardiology, urinary, small organs, and so on
    6.AV Output,working station, connect with computer, external monitor and HP printer directly
    7.Aluminum suitcase
    8.Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.

    Technical Specification

    Scan modeElectronic linear scan, Electronic convex scan
    Power supplyAC 100~240V, 50/60Hz
    Power consumption≤200VA
    Scanning depth≥170mm(depend on probes)
    Gray scale256
    Geometric position precision≤5%(depend on probes)
    Average no failure operation period≥3000 hours

    Image modeB, B+B, 4B, B+M, M
    Gray256
    Display15” high-resolution LED
    Probe frequency2.5~10MHz
    Probe connector1
    Lateral resolution≤3mm (depth ≤80mm)
    ≤4mm (80mm≤depth ≤130mm)
    Longitudinal resolution≤2mm (depth ≤80mm)
    ≤3mm (80mm≤depth ≤130mm)
    Detectable depth≥160mm
    Blind area:≤5mm
    Geometrical position distortionLateral≤15
    Longitudinal≤10

    Cine loop128 frames cine loop memory
    Zoom×0.8×0.9×1.0×1.1×1.2×1.3×1.4×1.5
    Magnifications in real time
    Permanent Storage1024
    Storage mediaMassive image-storage capacity (external)
    USB disk
    SD card(future)
    Front panel controlBrightness, overall gain of the image
    Focusing methodAutomatic multi-stage focusing
    OSD (On Screen Display)Date, Time, age, sex, Patient ID and hospital information, Gain,
    Focusing, Comments, Scroll, Zoom setting
    MeasurementsDistance, circumference, area/perimeter, volume heart rate, pregnant week, fetal weight, etc
    Body-marksMore than forty different body-markers
    Adjustable biopsy guidelineGuidance for puncture
    Sleep modeSave energy and protect screen and probe
    Parameter PresetSuitable present for different application (Gynecology, Heart, Abdomen)

    B-modeDistance, circumference, area, volume
    M-modeDistance, velocity, heart rate
    Software packageAbdomen (Distance, circumference, area, volume)
    GYN/OB (EDD, GA, BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD, FW)
    Cardiology (Sam, SL, SAI, SD, Dam, DL, DAI, DD, ESV, EDV, SV, EF)

    Standard configurationsOptional
    3000W main unit6.5MHz Trans-vaginal probe
    15”high-resolution LED7.5MHz linear probe
    1pc 3.5MHz R60 convex probe5.0MHz micro-convex probe
    One connector7.5MHz rectal probe
    128 frames cine-loop6.5MHz rectal for vet
    1024 permanent storageHP inkjet printer
    OB reportTrolley
    OB & GYN & Cardiac software
    1 USB port & 1 mini2.0USB port

    Reliable Service
    Quick response to inquiries within one day (depends on time difference). 12 months' warranty for the unit and main parts(freight not included ). Only the cost of parts and freight being charged while warranty expired.
    We have manufacture base in Wuxi, China. Every service request will be transferred to our professional and experienced engineer. Assured solutions will help you out of any possible trouble.

    Product pictures




    Pls kindly check the below catalogue for ultrasound scanner 3000W for reference:

    E-catalogue for portable ultrasound scanner 3000W.pdf
