Self-aligned Pipe Turning Rolls Bed Tank Pipe Vessel Seam Welding , 80T

Categories Pipe Welding Rotator
Brand Name: Ronniewell
Model Number: HGZ80
Certification: CE,ISO,CSA
Place of Origin: China
MOQ: 1set
Price: pls confirm with us
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 20set/month
Delivery Time: 30working days
Packaging Details: Mainframe naked, spare parts packed in case
Application: Rotate work piece
Usage: Metal welding
Applyed industry: Wind tower, pipe, boiler,tank;
Structure: Motorized bogie
Speed control: Variable frequency drive
Voltage: As per required
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

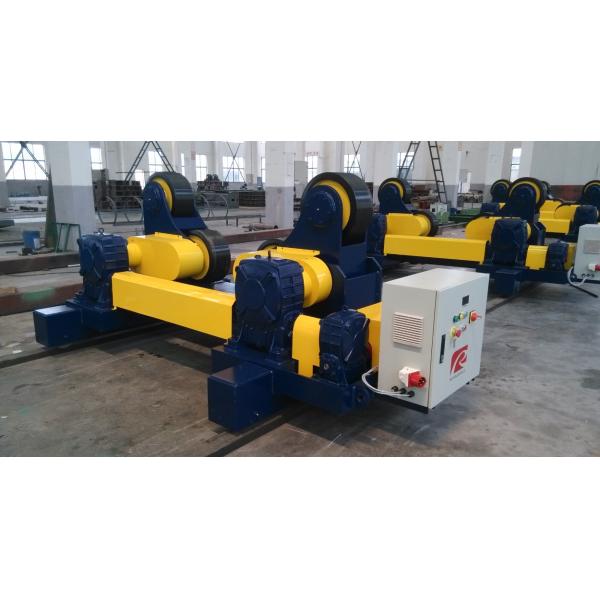

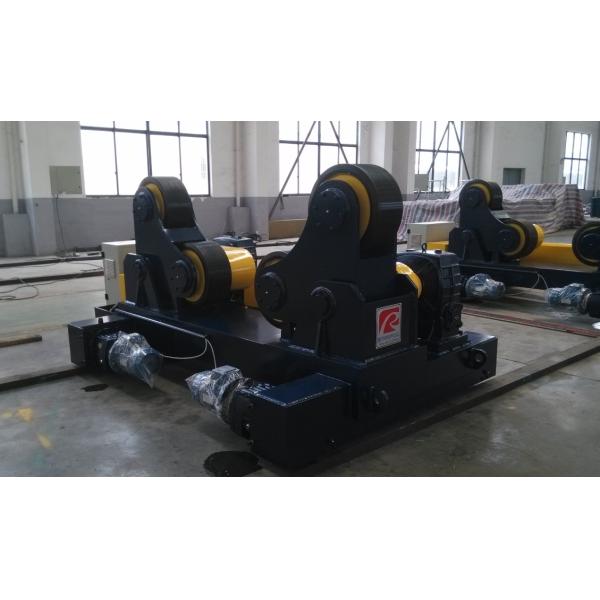

    Self-aligned Pipe Turning Rolls Bed Tank Pipe Vessel Seam Welding , 80T

    Self-aligned Pipe Turning Rolls Bed Tank Pipe Vessel Seam Welding , 80T

    Self aligned turning roller bed function:

    • It is mainly used in switching position of cylinder work piece, to get the ideal welding position and speed.
    • It usually work matching with the equipments, like manipulator and welding machines to form the auto-welding system.
    • It also can be used in manual welding, assembling, polishing and crack-defection, etc.



    Feature of the turning roller bed:
    (1) Each motors and reducers have cover, careful design, ensure the safety.
    (2) 20% overweight design, could making the turning roller bed focus more.
    (3) All the parts using well-known brands in China or international. Quality is reliable.
    (4) Variable frequency drive (VFD)
    control ensure the constant & stable working speed.

    More models technical parameters of the self aligned turning roller bed

    Model

    HGZ-20

    HGZ-40

    HGZ-60

    HGZ-80

    HGZ-100

    HGZ-150

    Rated loading
    (T)

    20

    40

    60

    80

    100

    150

    Vessel diameter
    range (mm)

    500-3500

    600-4200

    750-4800

    850-5000

    1000-5500

    1000-6500

    PU roller
    dia. And width
    (mm)

    350*140

    400*180

    450*180*2

    450*200*2

    500*240*2

    500*260*2

    Linear speed
    (mm/min)

    100-1000mm/min

    Speed control

    Variable frequency drive speed control

    Motor power
    (kW)

    1.5

    3

    4

    4

    5.5

    5.5

    Traveling speed
    - Optional
    (mm/min)

    3000mm/min

    Traveling speed
    - Optional
    (mm/min)

    2*0.75

    2*1.1

    2*1.5

    2*2.2

    2*3

    2*3


    Option:
    1. Hydraulic lifting for fit up pipes;
    2. Anti creep function;
    3. Polyurethane roller, Rubber Roller or steel roller;
    4. Automatic traveling or Manual traveling on the rail;
    5. Customization


    Applied industry:
    1. Wind power fabrication
    2. Pipe manufacturing industries
    3. Pressure vessels
    4. Chemical & fuel storage tank fabrication
    5. Any heavy cylindrical job


    Configuration of turning roller bed:
    ● Inverter and Main electric elements are Siemens/Schneider or equal brand.
    ● Steel or PU roller which can ensure a long time using (at least 2 years).
    ● With lubrication system.
    ● Accept testing before delivery.
    ● Accept special design and custom.


    Detail description of self aligned turning roller bed :

    • The series turning roller bed is absorbing advantages of similar products at home and abroad, designed and manufactured by us according to the operation requirements of several pressure vessel factories.
    • According with mechanical standard JB/T 9187-1999, self-aligned turning roller bed is the device for special purpose adopted to weld metal cylinder especially pressure vessel.
    • It has advantages of advanced technology, reliable quality and simple operation.
    • The turning roller bed series includes the self-alignment, the adjustable, the vehicle, the tilting and the anti-drift types.
    • This Self-aligning turning roller bed is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.
    • It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter, and the linear velocity is displayed by the digital.
    • It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range.
    • We also can design and customize various types of the turning roller bed in accordance with the customers requirement.

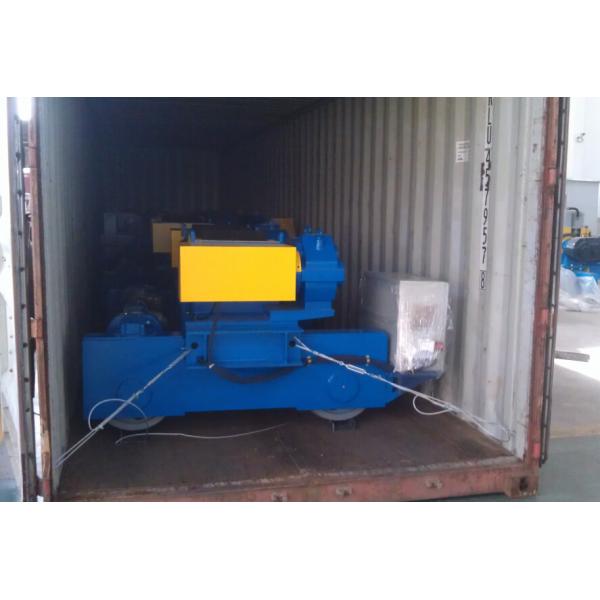

    Delivery picture:

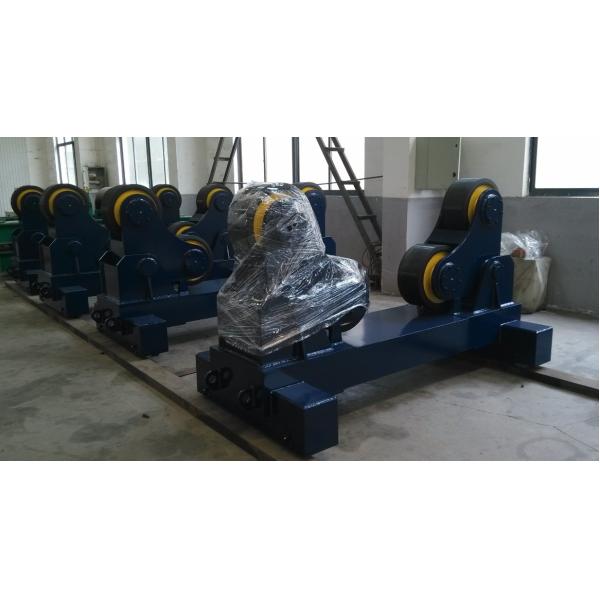

    Workshop picture:



    Name of the machine:
