Heating / Cooling 66kW Air Cooled Modular Chiller Electric Air Source Heat Pump

Categories Air Cooled Modular Chiller
Brand Name: EuroKlimat
Model Number: EKAC 230BRLH
Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
Place of Origin: China
MOQ: 1
Price: negotiation
Payment Terms: L/C, T/T
Supply Ability: 50 pcs per month
Delivery Time: 20 working days after received your payment
Packaging Details: Carton
Product Name: Low-temp high-efficiency model Air-cooled Heat Hump Unit

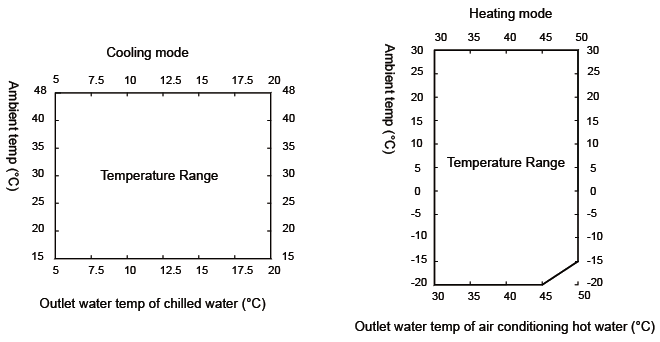

Limiting Temperature: -20 ℃ Cooling and 48℃ Heating
Heating Capacity range: 70 kW~1120 kW
Cooling Capacity range: 66 kW~1056 kW
COP: 3.68
IPLV: 4.33
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

    Heating / Cooling 66kW Air Cooled Modular Chiller Electric Air Source Heat Pump


    Low-temp high-efficiency model Air-cooled Heat Hump Unit


    Specifications:


    Technical data sheet


    Model



    EKAC 230BRLH

    EKAC 460BRLH

    EKAC 690 BRLH

    EKAC 920BRLH

    EKAC 1150BRLH

    EKAC 1380BRLH

    Unit combination

    Master unit

    EKAC230 BRLHM

    EKAC230 BRLHM

    EKAC230 BRLHM

    EKAC230 BRLHM

    EKAC230 BRLHM

    EKAC230 BRLHM

    slave unit

    --

    EKAC230 BRLHS

    2EKAC230 BRLHS

    3EKAC230 BRLHS

    4EKAC230 BRLHS

    5EKAC230 BRLHS

    Nominal cooling capacity

    kW

    66

    132

    198

    264

    330

    396

    USRT

    18.77

    37.54

    56.31

    75.08

    93.85

    112.62

    ×104kcal/h

    5.67

    11.34

    17.01

    22.68

    28.35

    34.02

    Nominal heating capacity

    kW

    70

    140

    210

    280

    350

    420

    USRT

    19.91

    39.82

    59.73

    79.64

    99.55

    119.46

    ×104kcal/h

    6.02

    12.04

    18.06

    24.08

    30.1

    36.12

    Total power of nominal cooling capacity

    kW

    18.1

    36.2

    54.3

    72.4

    90.5

    108.6

    Total power of nominal heating capacity

    kW

    19.0

    38

    57

    76

    95

    114

    Power supply



    380V/3N~/50Hz

    Refrigerant

    Type



    R22

    Control



    Electronic expansion valve

    Compressor

    Type



    Fully hermetic volute compressor

    Lubricant



    Mineral oil (SUNISO 3GS)

    Qty.

    Set

    2

    4

    6

    8

    10

    12

    Fan

    Type



    High-efficiency vacuum braze-welded panel type

    Qty.

    Set

    2

    4

    6

    8

    10

    12

    Water side heat exchanger

    Type



    High-efficiency vacuum braze-welded panel type

    Water flow for
    cooling

    3
    m /h

    11.4

    22.8

    34.2

    45.6

    57

    68.4

    Water flow rate in
    heating mode

    3
    m /h

    12.0

    24

    36

    48

    60

    72

    Water resistance

    kPa

    34

    34

    34

    34

    34

    34

    Recommended diameter for general inlet / outlet water pipe

    inch

    ≥2

    ≥3

    ≥3

    ≥4

    ≥4

    ≥5

    Power cable specification

    Section area of live line

    2
    mm

    ≥10

    ≥35

    ≥70

    ≥95

    ≥120

    ≥150

    Qty. of live lines



    3

    Section area of null line

    2
    mm

    ≥4

    Qty. of null lines



    1

    Section area of grounding line

    2
    mm

    ≥10

    ≥16

    ≥35

    ≥50

    ≥60

    ≥75

    Qty. of grounding lines



    1

    Dimensions

    L x H

    mm

    2012×1840

    Width

    mm

    880

    2125

    3370

    4615

    5860

    7105

    Unit weight

    Net weight

    kg

    590

    1180

    1770

    2360

    2950

    3540

    Operating weight

    kg

    600

    1200

    1800

    2400

    3000

    3600


    Note:
    ■ Test conditions for nominal cooling capacity: outlet water temperature 7°C; water flow: 0.172m3/(h·kw); outdoor ambient temperature 35°C.
    ■ Test conditions for nominal heating capacity: outlet water temperature 45°C; water flow: 0.172m3/(h·kW); outdoor dry/web bulb temperature
    7°C/6°C.
    ■ Water resistance at the air conditioner side includes water pressure drop of the unit and the attached Y-shaped filter.
    ■ Main Pipes of combined units need to be customized and installed on site. The diameter of the pipes must meet design requirements. EK
    does not provide the pipes.
    ■ Modular units can be formed using the 1 - 16 basic modules of same type or of different types as per practical needs. The above table lists
    the parameters for common module combinations.
    ■ For on-site electric wiring, see the name plate or installation menu of the unit.


    Description


    1. The low-temperature high-efficiency modular air cooled heat pump unit features a full-load COP up to 3.68, meeting the national standard for tier-1 energy saving products (3.4). Both the cooling and heating energy efficiency of the low-temperature high efficiency modular air-cooled heat pump unit is greatly improved to save operation cost for customers (value added). The energy efficiency is especially excellent with partial workload, bringing comfort to customers at much lower cost.

    2. The EKAC low-temperature high-efficiency unit features leading-edge EVI (Enhanced Vapor Injection) compressors, increasing refrigerant recycling by as much as 20%. The evaporation capacity is improved by mid-pressure refrigerant intake. One compressor compresses refrigerant 2 times in each cycle. Half-M fins are used to improve the heat-exchange efficiency of the heat exchanger. The unit features state-of-the-art cross diagonal convection angles for stainless steel braze-welded panel-type heat exchanger and stainless steel braze welded panel-type economizer (used to increase the enthalpy differentiation between the inlet and outlet of the evaporator). An EXV is used to precisely control the operation of the unit.

    3. The EKAC low-temperature high-efficiency modular air-cooled heat pump unit features excellent heating COP when the ambient temperature is low (20% higher than common air-cooled heat pump unit when the ambient temperature is -10°C). The lower ambient temperature limit is expanded from -10°C of common units to -20°C. This greatly improves cooling performance in areas where the winter is cold, reducing or eliminating the need for auxiliary heaters

    4. Each modular unit has two power gears. When multiple modular units are combined, there could be many power gears. When working at a partial workload (99% of the operation time), the unit intelligently regulates the output based on the actual workload, making the operation efficiency even higher. With an optional 2-way valve water control feature, the unit can send out signals to cut off chilled water. This enables automatic flow control for pumps in line with the transducer, which helps save more energy.

    5. Currently, centralize heating by using heat pipes are very common. This type of heat provision wastes a lot of heat in the heating pipes, and is low in efficiency. Other defects include fixed heating period, environment pollution, difficult to maintain and collection fees, and not meeting national requirements on energy saving. The EKAC low-temperature high-efficiency modular air-cooled heat pump unit can provide enough heat in an ambient temperature as low as -20°C. The heating period, output capacity, and indoor temperature can be flexibly conditioned as required by the customer. The unit provides both heating and cooling functions, saving installation and maintenance costs. Unit of this series meets the trend for energy saving technologies, and is revolutionary compared with traditional heat provision solutions.
