Laser drilling machine 50W brass laser engraving machine 100 * 100mm

Categories Fiber Laser Marking Machine
Brand Name: Suntop Laser
Model Number: ST-FL20-LDEBM
Certification: CE & ISO9001
Place of Origin: China
MOQ: 1 set
Price: USD16580-USD19850
Payment Terms: T/T, Western Union
Supply Ability: 190 sets / month
Delivery Time: 18 work days
Packaging Details: Packed with plywood wooden box which suitable for sea or air shipping .
Laser power: 50W ( other power can be optional )
Pulse width: 90 -120ns
Repeat frequency: 20 - 200KHZ
Cooling: Air cooling
laser wavelength: 1064nm
Single pulse energy: 1 MJ
Min. line width: 0.02mm
Min. word height: 0.5mm
Marking range: 100 * 100mm (300*300mm optional )
laser ourput stability: 2%
Laser beam quality: less than 2
Power supply: AC220V/50HZ
Machone total power consumption: less than 900W
Graphic format supported: AI, PLT, DXF,BMP,DWG etc
application materials: All metals and most of nonmetals
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

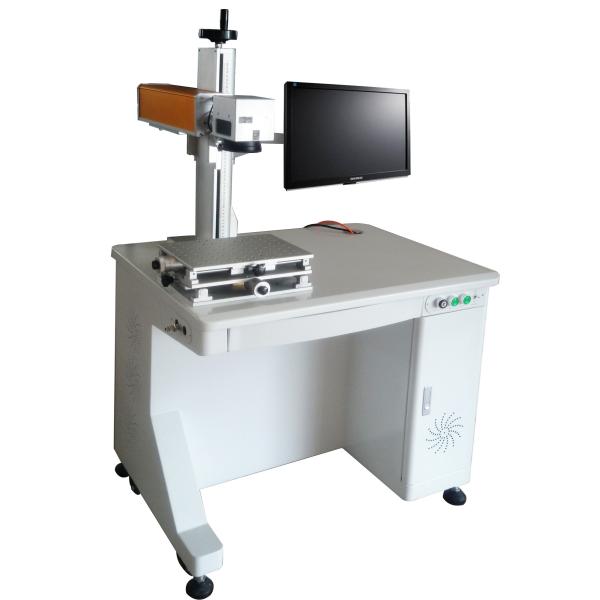

    Laser drilling machine 50W brass laser engraving machine 100 * 100mm

    Laser drilling machine with laser power 50W for brass materials/brass laser engraving machine

    1. Machine General characteristics:

    This kinds of fiber laser drilling and engraving system exclusive designed for brass products industry.

    It's specially for drilling the smaill hole on thin brass sheet metal products, the hole diameter can be up to mm, high precision and very fast speed.

    Fast hole drilling speed/engraving speed,clear marking number and Without any consumable parts, energy saving and environmental protection.

    We can customized the automation system from which can highly improve the laser marking efficiency.

    Advantages of our brass products fiber laser engraving and drilling machine:

    Adopt our own developed advanced marking software which has many customized functions, the high-speed scanning galvanometer key parts are imported from Germany .our machine the Germany top quality fiber laser source, no maintenance and no future wearing parts, the fiber laser source estimated working hours is 100,000 hours.

    We warranty this quality machine maintenance free and 24 months guarantee for whole machine,Large lifting range, apply to different dimensions of products marking, rotary axis and other non-standard tooling can be added depend on customer's actual requirements.

    Environmental requirement is simple, without constant temperature and humidity and water cooling facilities. Minimal supplies, simplest maintenance.Up and down working table which makes the machine more convenient to adjust focus point, machine with the He-Ne red light positioning makes operators easy to observe the laser marking range before marking.

    2. Applications industries:

    It is suitable for processing fields that need high engraving and drilling holes quality on brass, smoothness and accuracy.

    This kinds of fiber laser marking has advantage of high beam quality and high reliability compare with other kinds of traditional laser marking machine.

    It is widely used in: advertising industry, arts industry, electronic components industry, medical device industry, glasses watch and clock industry, IC card industry, plastic tool industry, kitchen and bathroom appliance, etc.

    3. Fiber laser marking machine main technical parameters :

    Laser power10W20W30W50W
    Length of laser weave1064nm1064nm1064nm1064nm
    Marking scope110x110~ 250x250110x110~ 250x250110x110~ 250x250110x110~ 250x250
    Mark depth0.3mm0.4mm0.6mm1.0mm
    Marker speed≤15000mm/s≤15000mm/s≤15000mm/s≤15000mm/s
    Min line width0.05mm0.05mm0.05mm0.05mm
    min character0.15 mm0.15 mm0.15 mm0.15 mm
    Repeat precision±0.002mm±0.002mm±0.002mm±0.002mm
    Gross power0.4KW0.5KW0.6KW1KW
    Power supply220V(±10%)/50Hz/ 3A220V(±10%)/50Hz/ 3A220V(±10%)/50Hz/ 3A220V(±10%)/50Hz/ 3A
    Operating temperature10-35°C10-35°C10-35°C10-35°C

    PS: the power 10W and 20W mainly for products shallow marking and engraving, the power 30W and 50W mainly for deep and fast marking.

    4, Machine some application materials for reference:

    17-4 PH stainless steelMagnesium
    303 stainlessMetal-plated ceramics
    4043 steelMolybdenum
    6061 AluminumNickel plated 1215 mild steel
    ABS (white/black)Nickel plated brass
    Aluminum, 6061Nickel plated gold
    Aluminum, yellow chromateNickel plated Kovar
    Bayer 2807 Makrolon polycarbonateNickel plated steel
    Bayers bayblend FR110Nylon
    Black/white ABSPEEK, white
    BrassPolybutylene Terephthalate
    Black/white polycarbonatePolycarbonate (black/white)
    Brushed aluminumPolycarbonate resin 121-R, GE Plastics
    Carbon fiberPolycarbonate, Bayer 2807 Makrolon
    Carbon nanotubePolysulphone
    Ceramics, metal-platedRynite PET
    Clear coat anodized aluminumSantoprene
    Cobalt chrome steelSilicon carbide
    Colored delrin (black/brown)Silicon steel
    Compacted powder iron with phosphate coatingSilicon wafers
    CopperStainless steel 303
    DAP - Diallyl PhthalateStainless steel 17-4 PH
    Delrin, colored (black/brown)Steel 4043
    GE Plastics polycarbonate resin 121-RSteel, machine tool
    Glass filled PEEKVarious inconel metals (nickel-chromium super alloys)
    Glass filed TeflonWhite PEEK
    Hard coat anodized aluminumYellow chromate aluminum
    Inconel metals (various)Zinc plated mild steel
    Machine tool steelAnd Many More

    5, Suntop fiber laser engraver main advantages:

    5.1. We not only provide the machine itself, but also provide the professional laser solutions at customer end.

    5.2. Have the professional QC team for machine quality controal, we need at least 3 days to test the machine's stability before machine shipping out,

    5.3. We can customized the laser marking machine as per customer's requirements, for example to design the special fixtures, the automation system and the corresponding matching services.

    5.4. Recommend the machine as per customer's exact needs with the concept of Economic and practical.

    5.5. Our machine's fiber laser source adopt the Germany IPG or China's top quality Raycus famous brand, other key optic parts we adopt the famous brand wo ensure the machine with exporting standard ( A top quality ) .

    5.6. After sale team response customer's problems within 12 hours for oversea market, So buy our laser machines without any future worries .

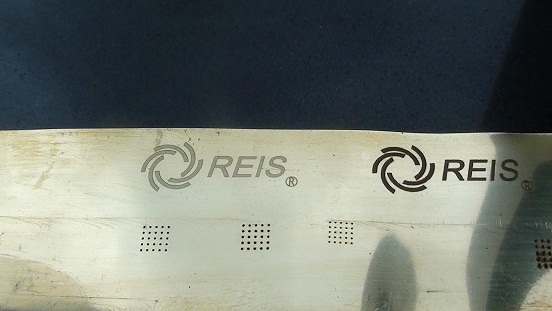

    6. The real laser drilling samples of our this machine for reference as follows:

    Welcome to contact us for more informations about laser marking machines, we can customized different kinds of laser marking system depend on customer's actual requirements.
