Wall Mount Fiber Optic Termination Box , SC Fiber Optic Cable Termination Boxes

Categories Enterprise Security Network
Brand Name: HICORPWELL
Model Number: SC/LC 2/4 Cores Wall Mount Fiber Optic Terminal Box
Certification: IEC 60794-2-10/11
Place of Origin: China
MOQ: 1set
Price: negotiation
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000pcs Per Month
Packaging Details: 1 pc/box Delivery Time 3-5 days based on quantity
Size: 150mm×110mm×33mm
Application: Networking
Name: SC/LC 2/4 Cores Wall Mount Fiber Optic Terminal Box
No of Ports: 2 OR 4 Ports
Connectors: SC、FC、E2000, ST
Cable Option: Indoor FO cable
Certificate: CE, ROHS , ISO
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

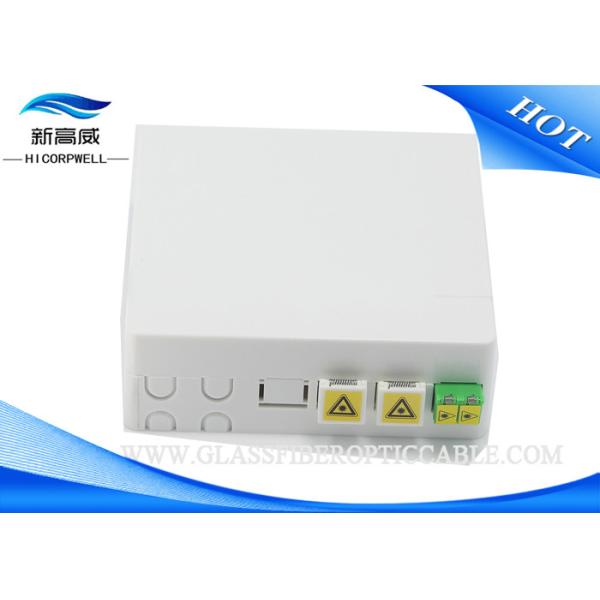

    Wall Mount Fiber Optic Termination Box , SC Fiber Optic Cable Termination Boxes

    SC/LC 2/4 Cores Wall Mount Fiber Optic Terminal Box Enterprise Security Network

    -- Material: PC or ABS


    -- It’s applicable for FTTH, FTTO and FTTD.


    -- The clasp design of the cover reduces the installation strength.


    -- Match with other A86 panel in house.


    -- Compatible adapter: SC. FC. LC


    -- The big-diameter wrapping trap in the socket guarantees the cable bending radius.


    Suitable for three splice way:


    pigtail + Mechanical Splicer+ Adapter


    pigtail + fused splicer + Adapter


    fast installation connector + Adapter


    The box is light and compact, especially suitable for protective connection of fiber cables


    and pigtails in FTTH.


    Features of the box


    1. This box could be used for wall-mounted and desktop-mounted applications;


    2. The base and cover of the box adopts “self-clip” method, which is easy and


    convenient to open and close;


    3. Could be used for adaptors such as SC,FC, LC Duplex;


    4. The max capacity is 4 fibers;


    Installation method


    1. Open the package of the box to check all the components.


    2. Press the front side of the box, withdraw the cover and slide it backwards.


    3. Indoor wiring fiber cable needed to lead in the location that fix the terminal box,


    The length of stripping is about 120cm from the end.


    4. It is suitable for two routing methods: dark-routing and right-routing.


    5. Outside fiber cable leads in fiber tray through cable outlet of tray as picture 9/10.


    6. Installing the adaptor, inserting the pigtail plug, Taking the pigtail through into splice tray.


    7. Splice as per usual, and then put the splice protective tube into the slot of tray.
