Economical Bevel Gear Cutting Machine , Manual Gear Grinding Machine

Categories Gear Hobbing Machine
Brand Name: Baishun
Model Number: Y3150
Certification: ISO; CCC; CE
Place of Origin: Zhengzhou City, Henan Province, China
MOQ: 1set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/month
Delivery Time: 20 workingdays
Packaging Details: Exported standard package for gear hobbing machine
CNC or Not: CNC
Power(kw): 3kw
Type: Bevel Gear Cutting Machine
Voltage: 380v/415v/ as customer's requirement
Max Module: 5/6MM
Diameter of worktable mandrel: 30mm
Color: as customer's requirement
Dimension(L*W*H): 1825*960*1730mm
CNC control system: KND or as requirement
Max diameter of workpiece: 500mm
Max diameter of hob: 120
Weight: 2600kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

    Economical Bevel Gear Cutting Machine , Manual Gear Grinding Machine

    Chinese famous brand Economical Manual Gear Hobbing Machine for sale


    Product Discription


    Bevel Gear Cutting Machine has sufficient rigidity. When the gear is sheared, it can be machined to the required tooth depth at one time. It can also be divided into several cuttings (stratified cutting). When cutting, it must be changed every time according to certain rules. Cutting rate, such as the choice of appropriate cutting speed, feed and a reasonable cut depth, and accurate installation of the workpiece, the machine can cut out seven precision gears. As the machine has a hydraulic balancing device to balance the cutting tool of the cutting resistance, so the machine can be used for milling, in order to improve machine tool production efficiency. The machine tool is equipped with a tool holder rapid movement device and automatically stop the cutting mechanism at the end of the operation, so the machine is not only widely applicable to gear processing, and easy to operate, while thirsty for multi-machine management.


    Technical ParameterUnitY3150E
    Max work piece diametermm500
    Max modulusmm8
    Max machining widthmm250
    Min machining number of teeth6
    The largest machining spiral angle+-45
    Scope of main tool turning speed and graderpm/grade40-250/9
    Max turning angle of tool240
    Max tool loading dimensions(diameter* length)mm160 *160
    Main motorkw6.45
    Spindle taperMorse 5
    Max axial amount of movement of toolmm50
    Distance between axis line of tool and worktable facemm235-535
    Min distance between tool axis and worktable axismm30
    Distance between back rest under face and worktable facemm380-630
    Machine size(length* width* height)mm2440*1370* 1800
    Weightkg4500

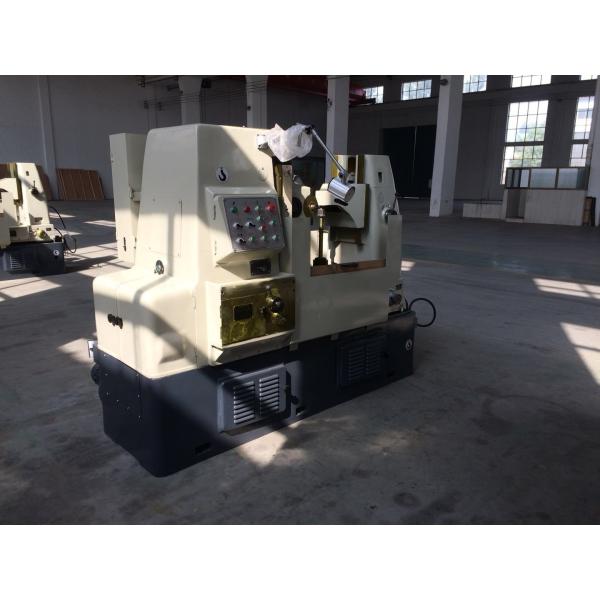

    Product photos for your reference:



    The feature of YK3150 Bevel Gear Cutting Machine :


    1. Type of construction :Horizontal type

    2. The number of spindle: two ,the X axis and z axis is linkage .

    3. The system :KND CNC system

    4. Resolution rato:0.001mm


    Y3150 Bevel Gear Cutting Machine is a kind of vertical hobbing machine, Y3150 hobbing machine's maximum processing diameter of 500mm, the largest processing module for the 6mm cast iron, steel 5mm. Y3150 hobbing machine is one of the most widely used vertical hobbing machine in China, which has the advantages of reasonable design structure, wide processing range and convenient operation. Y3150 hobbing machine can process straight and helical gears, worm gears, sprockets and short spline shafts. The machine is suitable for single piece production and batch production, processing various cylindrical spur gears, helical gears and warrants. Such as with more than the same type of machine tool is the most reasonable use of the separation of the number of machine tools designed for precision cutting to ensure the processing of sophisticated machine tools.
    Our Services

    1. 24 Hours after sales service by E-mail or Phone.

    2. 100% response rate.

    3. Engineers available to service overseas.

    4. OEM service is available

    5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you withfactory price.
