Screening 500t/H Feeding 450mm Stone Crushing Equipment

Categories Mining Crushing Machine
Brand Name: SANME
Model Number: SMH120,SMH180,SMH250,SMH350,SMH550
Certification: ISO, CE
Place of Origin: Shanghai, China
MOQ: Negotiate
Price: Negotiate
Payment Terms: T/T, L/C
Supply Ability: 50 sets per Month
Delivery Time: 2 months
Packaging Details: Standard container, spare parts will be packed in wooden cases
Max feeding size: 450mm
Capacity(t/h): 100-500t/h
Applicable Industries: Construction works , Energy & Mining, Stone crushing plant
Product name: sand making production line
Application: Energy & Mining
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

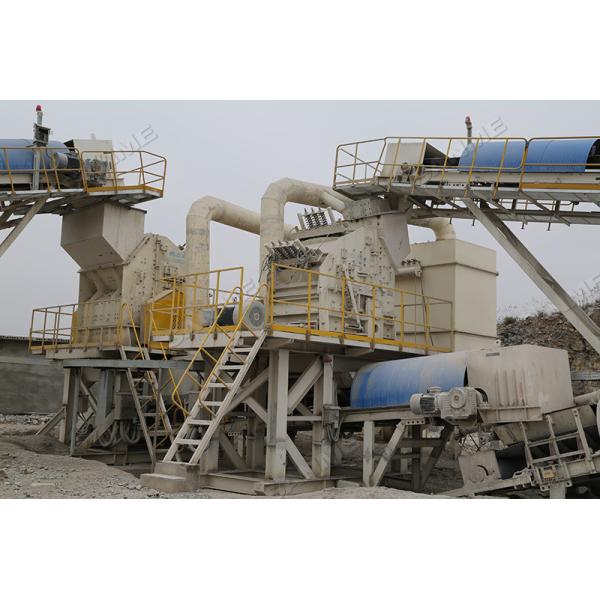

    Screening 500t/H Feeding 450mm Stone Crushing Equipment

    Wet Sand Making Price

    VSI series sand making machine adpots high-speed movement of materials mutual self-broken and friction between materials to crush.This series of equipment is not only crushing stone, making sand and also playing shaping role with the finished products.

    BASIC PROCESS OF BASALT SAND MAKING PLANT


    The basalt sand making process is divided into four stages: coarse crushing, medium fine crushing, sand making and screening.


    The first stage: coarse crushing


    The Basalt stone blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.


    The second stage: medium broken


    The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium crushing. The crushed stones are conveyed to the vibrating screen through a belt conveyor to sieve out different specifications of stones. The stones that meet the requirements of the customer's particle size are conveyed to the finished product pile through the belt conveyor. The cone crusher crushes again, forming a closed circuit cycle.


    The third stage: sand making


    The crushed material is larger than the size of the two-layer screen, and the stone is conveyed to the sand maker machine through the belt conveyor for fine crushing and shaping.


    The fourth stage: screening


    The finely crushed and reshaped materials are screened by circular vibrating screen for coarse sand, medium sand and fine sand.

    Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

    ModelRotation Speed of Impeller (r/min)Max Feed Size (mm)Throughput (t/h) (Full feeding center / center plus waterfall feeding)Motor Power (kw)Overall Dimensions (mm)Weight(motor not included) (kg)
    VC726L1881-24993560-10290-1761103600*1969*2200≤7055
    VC726M70-126108-211132
    VC726H96-150124-255160
    VC730L1630-216640109-153145-2601804600*2150*2480≤10000
    VC730M135-200175-340220
    VC730H160-243211-410264
    VC733L1455-193455165-248215-4152645500*2563*3178≤14020
    VC733M192-286285-532320
    VC733H238-350325-585400
    VC743L1132-150460230-346309-5774005850*2740*3031≤21040
    VC743M246-373335-630440
    VC743H281-405366-683500
    VC766L1132-150460362-545486-9092*3155850*2740*3050≤21840
    VC766M397-602540-10162*355
    VC788L517-59765460-692618-11542*4006000*3040*3456≤23220
    VC788M560-848761-14322*500
    VC799L517-59765644-967865-16152*5606000*3122*3625≤24980
    VC799M704-1068960-18042*630

    Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

    ModelRotation Speed of Impeller (r/min)Max Feed Size (mm)Throughput (t/h) (Full feeding center / center plus waterfall feeding)Motor Power (kw)Overall Dimensions (mm)Weight(motor not included) (kg)
    VCU726L1881-24995586-143108-2111103600*1969*2200≤6950
    VCU726M98-176124-253132
    VCU726H132-210143-300160
    VCU730L1630-216665150-212162-3101804600*2150*2482≤9910
    VCU730M186-280203-408220
    VCU730H220-340245-480264
    VCU733L1455-193480230-338255-4972645500*2563*3178≤13820
    VCU733M268-398296-562320
    VCU733H327-485373-696400
    VCU743L1132-1504100305-467362-6784005850*2740*3031≤21240
    VCU743M335-506379-746440
    VCU743H375-540439-800500
