    Tumble Belt Automatic Shot Blasting Machine , 200L Volume Industrial Shot Blaster

    Tumble Belt Shot Blast Machine Q328 With φ800mm Drum Diameter 200L Volume


    Working principle

    Add the required number of workpieces in the clean room, start the machine, belt begins to rotate, the workpiece is cleaned by high speed continuous blasting shots, the shots and dust fall into bottom cabinet through the holes of belt after blasted, big particles will leave on wire mesh, the small ones will be transported to separator, dust will be sucked into dust collector, the good shots will fall into abrasive hopper and ready for recycle using.


    Application

    Tumble belt shot blast machine is suitable for:

    casting parts
    forging parts
    casting tube and elbows
    other small fabricated metal work pieces


    Description

    Tumble blasting machine with rubber belt is ideal for processing mass-produced parts, which can be tumbled and exposure of all surfaces to the blasting stream, with high cleaning efficiency.


    Specification


    No.ItemQtyIndex
    1Max Weight of Single Part 10 kg
    2Capacity200L
    3Working Efficiency1.5-2.5t/h
    4Surface Cleaning Requirement GB8923-88 A-B Sa2.5
    5Volume 0.2m³
    6Blast Wheel1pcType:Q034
    Blast Volume:180 kg/min
    Power:11 kw
    7Abrasive Recommend Φ0.4~Φ1.2mm(steel shot and steel cut wire)
    8Abrasive Fist Feed ≈0.1T
    9Elevator1setLift Capacity:1.5t/h
    Power:2.2 kw
    10Screw Conveyor1setCapacity:1.0t/h
    11Separator1setCapacity:1.0t/h
    Air Speed:4~5 m/s
    12Tumble Belt System1setDrum Diameter:Φ800mm
    13Noise Level ≤85 dB
    14Filter Type2pcs Cartridge, diameter 350mm x H660mm
    15Dust Emission ≤80 mg/m³
    16Process Air Volume Total Air Volume:2800m³/h
    Fan Type:No.4-68
    Power:3kw
    17Input Power380V/50Hz/3Phase
    18Total Power about 17.7kw(include dust collector 3kw)


    Parts Introduction

    This is a small cleaning equipment, mainly composed by the cabinet, blasting system, abrasive recycle system, dust collector, electrical system and etc.

    a. Blasting Cabinet(Longer Serive Time)

    Inside the cabinet, there equips with wearing-resistant rubber to carry the products rotate. The shell is protected by special wear-resistant alloy shield mounted on end sides of belt, which is made by high chromium iron casting.



    b. TS Blast Wheel (High Efficiency + Longer Service time)

    It is key part of shot blasting machine, consists of blades, control cage, wheel disc, impeller, protective linings, wheel house, feeding pipe, special motor and etc.


    c. Door (Good Sealing)

    It is single swing door hanging with wear-resistant rubber to protect the door and sealing.


    d. Elevator + Air Wash Separator

    (with advanced design, dust and abrasive can be separated up to 99.5%)

    To ensure conveyor belt not slip when machine is working, the pulley was made into a squirrel cage, that increase friction between belt and pulley, reduce the press-tightening force, extend belt service life. While elevator is equipped with a tension device, belt can be tensed by adjusting the upper bolt when it loose.


    e. Cartridge Dust Collector(More Easier to Clean)

    Pulse-jet Air Clean System

    The dust collector has a push button to “pulse” the cartridges with a jet of compressed air between blast cycle to purge the filter. Upgrade option, the part can be programmed in PLC.


    f. Electrical Control Panel (More Safty)

    Qualified electronic components from famous company, such as Schneider, Chint or other Equivalent brand;

    With Emergency Button; Control Voltage 24V;

    Interlock System: there is a limit switch above the door, only after the door closed, can the blasting wheel be started.


    Before and After



    Why choose tumble belt shot blasting machine from TS Blasting?


    No.

    TS Machine

    Other supplier

    Result


    1

    Protective plate in blasting zone SP Mn13

    Low chromium casting

    Service life of Mn13 is 8000-10000, Low chromium casting is 1500-2000h

    2Equip with 1 sets dust collector with pulse-jet air clean systemEquip with 1 set bag filter or cartridge filterBag filter need manual vibration, filter area is small with big occupation, ash removal difficulty
    3

    Electronic brand are Schneider/Chint

    Electronic brand is Delixi

    Choosing big brand Electrical components, with high stability of equipment

    4

    Top sealing uses a total of 5 layer protection (sealing brush and sealing rubber)

    Top seal 2 layer of protection

    5 layer seals are more effective in preventing steel shots and dust escape out

    5

    Equip with safety protection such as ladder, guardrail and etc.

    None

    Ladder and guardrails to ensure the safety of staff for repair and maintain purpose.

    6

    Equip with sealing device and screen mesh at each transmission bearing

    None

    Bearing equipped with sealing device is not easy to break down, and protect the transmission parts and motor.

    7

    Dust-removing fan outlet equipped with silencer

    None

    Silencers can effectively reduce noise decibels and protect the health of workers.


    Package

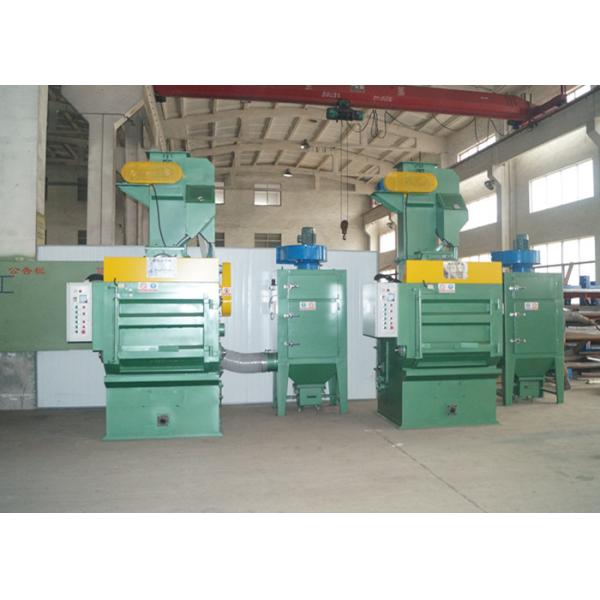

    Buy Tumble Belt Automatic Shot Blasting Machine , 200L Volume Industrial Shot Blaster at wholesale prices
