Categories | Overhead Hydraulic Door Closer |
---|---|
Brand Name: | DORHAUS, Dorrenhaus |
Model Number: | D202, D203 |
Certification: | ISO9001:2015, CCC |
Place of Origin: | Zhejiang, China |
MOQ: | 100 pcs |
Price: | USD5.50-USD5.80 / pc |
Payment Terms: | D/P, L/C, , T/T, Western Union, MoneyGram |
Supply Ability: | 20,000pcs / month |
Delivery Time: | around 35 days |
Packaging Details: | 1 pc in 1 paper box, 20 pcs in carton of 430*260*300mm, 24ctns in 1 wooden pallet size: 110*85cm |
Main Keywords: | Overhead Hydraulic Door Closer |
Warranty Period: | 2 years |
Width Range: | 850-950mm |
Open Angle Limit: | 115degree |
Temperature Range: | -40℃ to 45℃ |
Weight Range: | 25-65kg |
Optional Function: | Hold-open |
Closing Force: | size two and three |

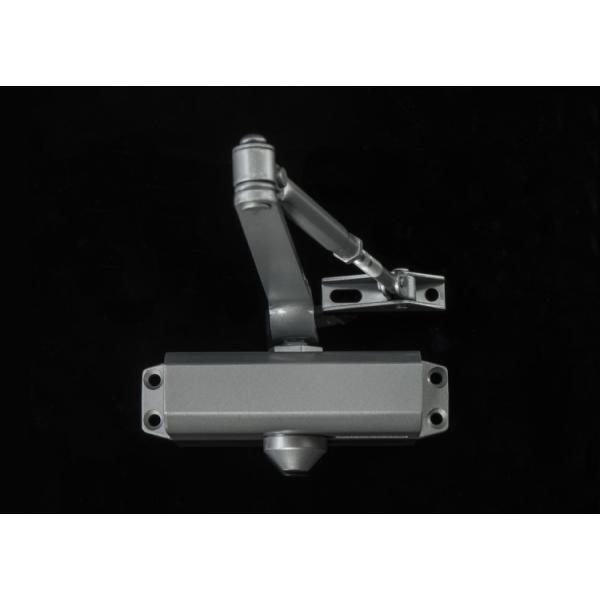

Silent Overhead Hydraulic Closer D200 Smooth Running Easy Close for
Indoor Door
Dorhaus D200 overhead hydraulic closer have fixed spring size 2 and
three,
applicable for installation on indoor doors up to max. 950mm width
and 65kg
in weight. The closer is of CCC marked for safety meeting Chinese national
standards, certifire fire rating tested up to 2 hours.
1. Double single adjusting screws controlling door closing and
latching speed
3. The external shape: streamlined design, Elegance and Graceful
4. Precision casting aluminum closing housing with strength screw
thread arm
5. Overhead Hydraulic Door Closer Accord with Chinese National
Standard
6. Non handed design, for regular arm and top jamb overhead mounting
7. Structure: Rack and Pinion Design, Powder Bearing for economical
purpose
8. Meet the requirements of implementation rules for compulsory
certification
9. Refined Fuchs brand lubricating fluid especially for door closer
lubrication
► Long-term cooperative manufacturer of world's top door control
brands
Finishes - Silver, Gold, White, Bronze, Black, Brown
* SOFT, NO MANUAL CLOSING REQUIRED: let the door do the work, enjoy automatic
closing and latching, maintaining quiet and security.
* SPRING THRUST, EASY CLOSING: screw thread swing arm will not impact opening,
easy close the door slow enough to allow for elegant entry and exit
Max Open | Fire Proof |
| Product Certification | Life Cycles Factory Tested |
115º | GA93-2004 |
| CCC | 200,000 |
| Width | Door | Closer Body | Mounting |
| 850mm | 25-45kg | 144*36*56mm | 132*19mm |
| 900mm | 40-65kg | 144*36*56mm | 132*19mm |
