| Categories | Pneumatic Air Cylinders |
|---|---|
| Place of Origin: | Ningbo |
| Brand Name: | FESTO or oem |
| Model Number: | FESTO ADVU Φ16-100mm |
| Certification: | CE, ISO9001 |
| MOQ: | 1 piece |
| Price: | USD8-15 |
| Packaging Details: | carton,pallet or according to customers' requirement |
| Delivery Time: | 5 working days after receiving the customers' payment |
| Payment Terms: | T/T,Western Union,L/C |
| Supply Ability: | 15000 pcs per month |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |

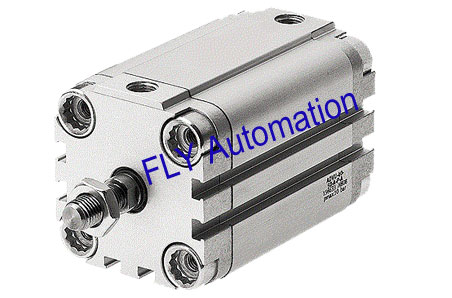

FESTO ADVU Φ16-100mm Thin Pneumatic Cylinder
| Bore(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Action | Double acting, single rod/double rod | |||||||||
| Fluid | Filtered compressed air | |||||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||||
| Operating | ADVU - -P-A | 0.12~1.0MPa | 0.1~1.0MPa | 0.08~1.0MPa | 0.06~1.0MPa | |||||
| pressure range | ADVU - -P-A-S2 | 0.13~1.0MPa | 0.12~1.0MPa | 0.1~1.0MPa | 0.8~1.0MPa | |||||
| Ambient and fluid temperature | -20~80 (No freezing) | |||||||||
| Port size | M5 | G1/8" | G1/4" | |||||||
| Piston rod thread | Female thread | M4 | M5 | M6 | M8 | M10 | M12 | |||
| Male thread | M8 | M10×1.25 | M12×1.25 | M16×1.5 | M20×1.5 | |||||
| Cushion | Rubber bumper | |||||||||
| Bore size(mm) | GB | D1φH9 | E | EE | H | L2 | L3 | L4 | φMM | PL | RT | T2 | TG | ZJ | 1 |
| 16 | 18.5 | 6 | 29 | M5 | 1 | 38 | 3 | 16 | 8 | 8 | M4 | 4 | 18 | 42.5 | 7 |
| 20 | 18.5 | 6 | 36 | M5 | 1.5 | 38 | 4 | 18 | 10 | 8 | M5 | 4 | 22 | 42.5 | 9 |
| 25 | 18.5 | 6 | 40 | M5 | 1.5 | 39.5 | 4 | 18 | 10 | 8 | M5 | 4 | 26 | 45 | 9 |
| 32 | 21.5 | 6 | 50 | G1/8 | 2 | 44.5 | 5 | 20 | 12 | 8 | M6 | 4 | 32 | 50.5 | 10 |
| 40 | 21.5 | 6 | 60 | G1/8 | 2.5 | 45.5 | 5 | 20 | 12 | 8 | M6 | 4 | 42 | 52 | 10 |
| 50 | 22 | 6 | 68 | G1/8 | 3 | 45.5 | 6 | 20 | 16 | 8 | M8 | 4 | 50 | 53 | 13 |
| 63 | 24.5 | 8 | 87 | G1/8 | 4 | 50 | 8 | 25 | 16 | 8 | M10 | 4 | 62 | 57.5 | 13 |
| 80 | 27.5 | 8 | 107 | G1/8 | 4 | 56 | 8 | 25 | 20 | 8.5 | M10 | 4 | 82 | 64 | 17 |
| 100 | 32.5 | 8 | 128 | G1/4 | 5 | 66.5 | 8 | 25 | 35 | 11 | M10 | 4 | 103 | 76.5 | 22 |
|
