High Energy Density 3.6V LiSOCl2 Battery ER17505 with Excellent Storage Life

High energy density 3.6V LiSOCl2 Battery ER17505 with Excellent Storage Life

Description:

1. The model name is ER17505 and the international stander model name is A

2. The voltage is 3.6V and the rated capacity is 3200mAh

3. High energy density: the battery can reach 420WH/KG and 800WH/dm3

4. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load,

the end voltage is 2.0V or 2.5V.

5. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged,

the capacity output is still more than 90%.

6 . Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃

7. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than

10years under room temperature.

Application:

1. Intelligent water meter, Ammeter, Gas Meter
2. Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
3. Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
4. Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.

Packing Method:

70PCS/layer, 700Pcs/Carton, Weight: 20KG Size:44*27*33cm

Specification:

Pictures:

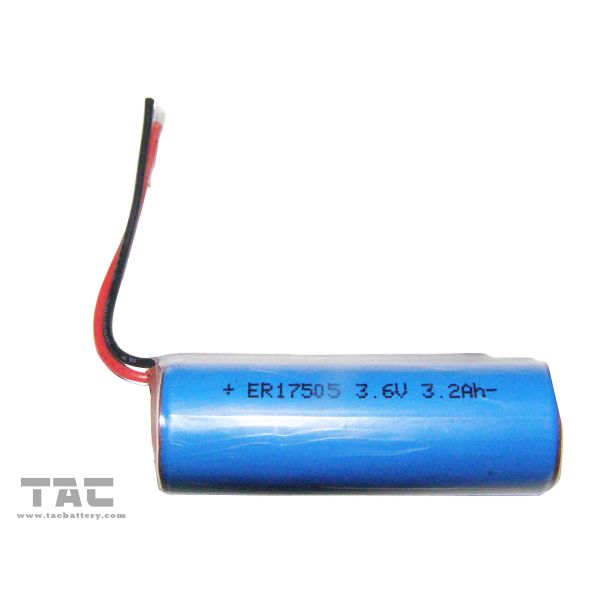

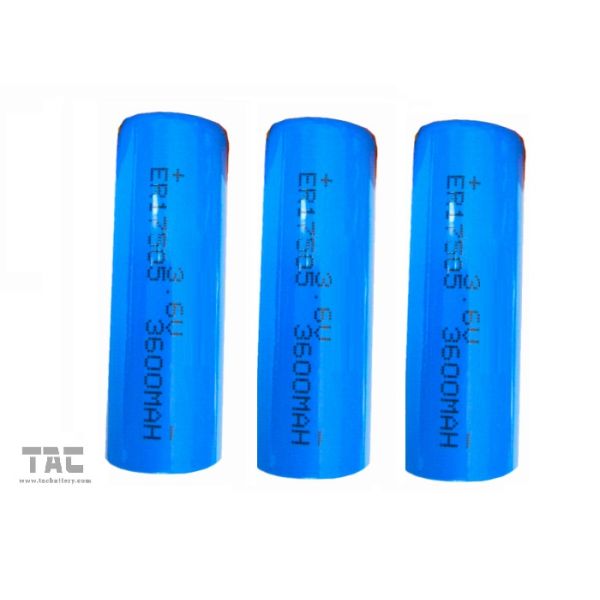

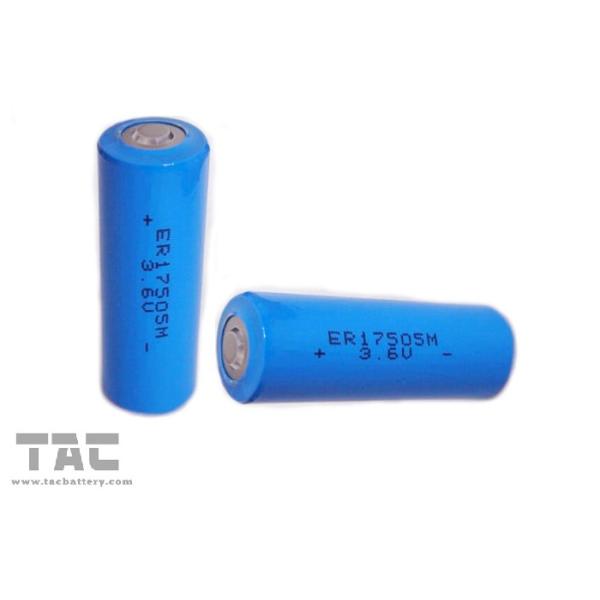

High energy density 3.6V LiSOCl2 Battery ER17505 with Excellent Storage Life

Tac Support all size for lisocl2

Guangzhou Sunland New Energy Technology Co., Ltd. (Sunland Power) is a senior professional service provider of battery application. Aiming at serving industrial users, it is dedicated to providing industrial users with optimized battery supporting solutions and safe, environmental friendly and cost-effective battery products.
It has a R & D, engineering and management team with more than 10 years of industry experience
From upstream to downstream, the battery industry has the advantage of vertical integration
Specializing in batteries, battery packs, battery management systems and energy solutions
The products are widely used in medical devices, coal mine security, electronic appliances, power supply and standby energy storage system. For example, the power supply system of electric bicycle; Solar energy storage power supply system, UPS backup power supply system. At the same time, it is also an ideal choice for vehicle starting power supply, military painting and other fields.
We provide professional design and customization services according to the special needs of customers.
