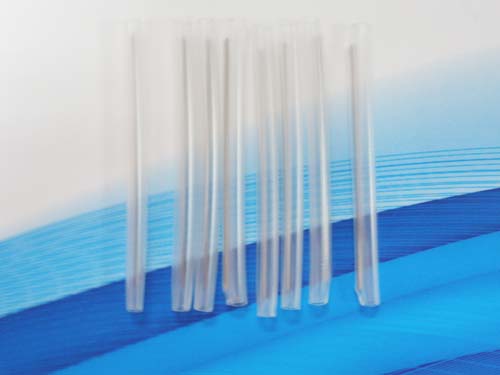

Good Moisture Hot Melt Tube Drop Cable Single Splice Protection Fiber Optic Splice Sleeves

Quick Details:

Brand Name: DYS

Model Number: Heat-shrinkable

Type:Double :Good Moisture

Length: 60mm

Steel OD: 1.5mm

Materails: plastic and steel

Specifications

			Hot-melt tube(D)		Steel(D)
Model	Constriction Diameter(mm)	Length (mm)	Inside Diameter (mm)	Length (mm)	Outside Diameter (mm)	Length (mm)	Packgae(pcs)
60	3.3±0.1	60	1.4	60	1.5	55	100
60B	2.9±0.1	60	1.3	60	1.5	56	100
45	3.1±0.1	45	1.4	45	1.5	40	100
40	3.1±0.1	40	1.4	40	1.5	36	100
23	3.1±0.1	23	1.4	23	1.5	18	100
61M	2.7±0.1	61	1.3	61	1.2	55	100
60M	2.7±0.1	60	1.3	60	1.2	56	100
45M	2.7±0.1	45	1.3	45	1.2	40	100
40M	2.7±0.1	40	1.3	23	1.2	36	100
30M	2.7±0.1	30	1.3	23	1.2	26	100
25M	2.7±0.1	25	1.3	23	1.2	21	100
40T-S	1.5±0.1	40	0.5	40	0.7	40	100
40TS	1.9±0.1	40	1.2	40	0.7	40	100
60T	2.0±0.1	60	0.5	60	1.0	56	100
40T	2.0±0.1	40	0.5	40	1.0	36	100
60A	2.5±0.1	60	1.3	60	1.0	56	100
40A	2.5±0.1	40	1.3	40	1.0	36	100
40S	1.3±0.1	40	0.5	40	0.5	40	100

Applications

·Use the enhanced wire, hot-melt tube and cross-linked polyolefin composition

·Reconstruct the fiber coating

·Junction to provide a good mechanical strength

·Ensure good optical transmission properties

Features

·Good moisture and environmental performance

·Transparent casing can be connected better before contraction

·Easily operating to the optical fiber

·Waterproof, RoHS compliant

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
