Metal Roof IBR Sheeting Roll Forming Machine For 0.3 - 0.8mm Material Thickness

Categories Roof Roll Forming Machine
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-RWM
MOQ: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Material: PPGI, Color steel, GI.
Axis diameter: 76mm
Working speed: 0-15m/min
Hydraulic power: 3 KW
Roller stands: About 13-20 (depend onprofile)
Transporting Type: Chain Transmission
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Metal Roof IBR Sheeting Roll Forming Machine For 0.3 - 0.8mm Material Thickness

Metal Roof IBR Sheeting Roll Forming Machine For 0.3 - 0.8mm Material Thickness

Main Specifications of IBR Sheeting Roll Forming Machine


  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Forming Station: 13-20 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 76mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Cutting Type of IBR Sheeting Roll Forming Machine: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Machine Weight: about 5 Ton

Main Components


Decoiler / Uncoiler1 Unit
Feeding Guide1 Unit
IBR Sheeting Roll Forming Machine1 Unit
Hydraulic Cutting System1 Unit
Hydraulic Station1 Unit
PLC Computer Control Box1 Unit
Support Tables2 Units

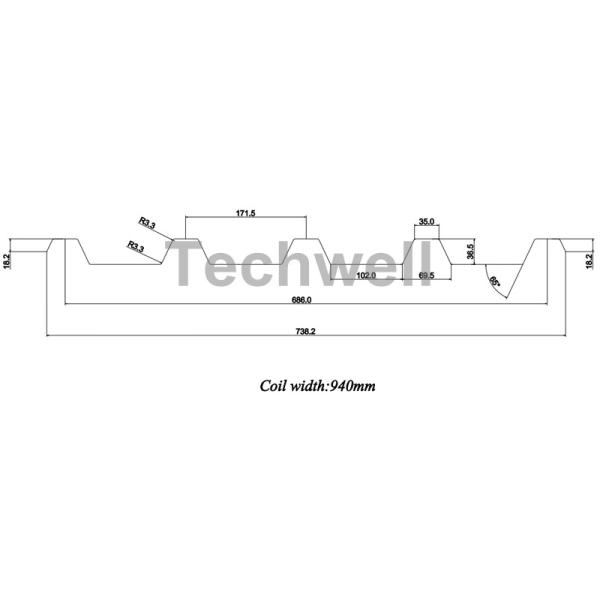

Sample IBR Drawings


Applications


IBR Sheeting, IBR Sheets, Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
