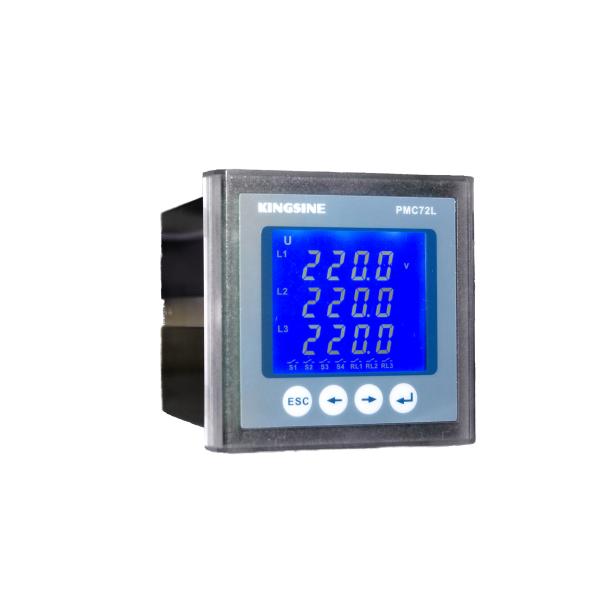

Three-phase Multifunctional Power Meter / Monitoring Meter PMC72

Three-phase Multifunctional Power Meter / Monitoring Meter PMC72

Big LCD display with Blue Backlight
Wide temperature range
Wide angle display

Function Features

• Adopts 22 AD for achieve electric parameter measurement, electric energy metering, wide dynamic range, high accuracy;
• Electric parameter over-limit alarm monitoring, alarm output relay association;
• Support 2-channel DI/DO,1 channel electric energy pulse output;
• Support MODBUS-RTS standard protocol, RS-485 communication.

Overview

PMC72 series three-phase electric monitoring meter adopts Segment type LCD screen,beautiful and grand,high contrast; With high-speed processor as the core, measurement of electric parameters using 22 AD, electric energy metering, wide dynamic range, high accuracy. Can optional configure various binary,relay,RS-485 communication module, can easily fulfill the integration of various intelligent distribution system.

Series Model

• PMC72-I Three-phase digital current meter
• PMC72-U Three-phase digital voltage meter
• PMC72-P Three-phase digital power meter
• PMC72-C Three-phase digital power factor meter
• PMC72-Z Three-phase electric monitoring meter
• PMC72L-I PMC72-L-I Three-phase LCD screen current meter
• PMC72L-U PMC72L-U Three-phase LCD screen voltage meter
• PMC72L-P PMC72L-P Three-phase LCD screen power meter
• PMC72L-C PMC72L-C Three-phase LCD screen power factor meter
• PMC72L-Z PMC72L-Z Three-phase electric monitoring meter

Applications

• Industrial distribution automation system
• Power plant auxiliary system
• Substation automation system
• Energy management system
• Intelligent mansion electrical engineering
• Switch gear of high & low voltage

Function Features

Technical Parameter

Selection Guide

Example: order model is: PMC72L-I-3-1-1-SR

It means PMC72L 3-phase LED display current meter has rated measuring is 220/380V 5A,system frequency 50Hz,power supply is 85~265VAC/45~65Hz,option is 2-channel binary input and 2-channel relay output.
