INNOLUX 13.3inch N133BGE-EA1 LCD Panel

Categories LCD Panel Types
Place of Origin: Japan
Brand Name: INNOLUX
Certification: RoHS Compliant
Model Number: N133BGE-EA1
MOQ: 1 Pcs
Price: Pls Contact sales team
Packaging Details: MODULE
Delivery Time: stock
Payment Terms: T/T , Paypal, Western Union ,Escrow etc.
Supply Ability: 1000
Panel Model: N133BGE-EA1
Panel Brand: INNOLUX
Descrition: a-Si TFT-LCD ,13.3 inch, 1366×768
Panel Type: a-Si TFT-LCD
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

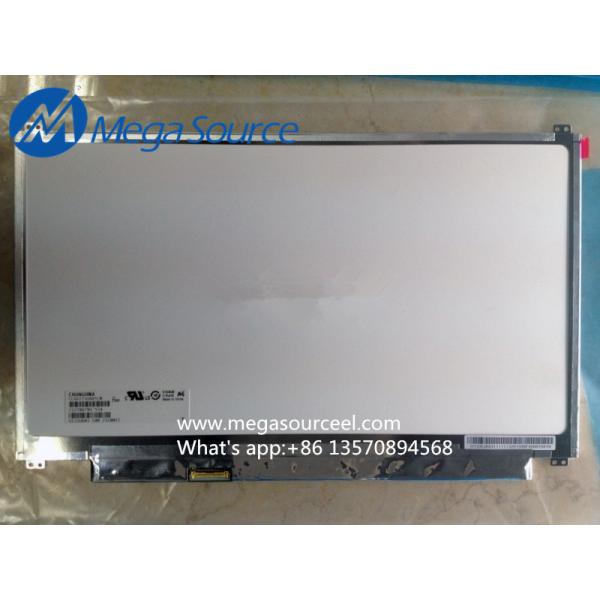

INNOLUX 13.3inch N133BGE-EA1 LCD Panel

INNOLUX 13.3inch N133BGE-EA1 LCD Panel

Specification for N133BGE-EA1:

N133BGE-EA1 Basic Information

Panel Model

N133BGE-EA1

Panel Brand

INNOLUX

Descrition

a-Si TFT-LCD ,13.3 inch, 1366×768

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

N133BGE-EA1 Mechanical Features

Dot Resolution

1366(RGB)×768 (WXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

118 PPI

Aspect Ratio

16:9 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.0716×0.2148 mm (H×V)

Pixel Pitch

0.2148×0.2148 mm (H×V)

Weight

224.5/240.0g (Typ./Max.)

Surface

Hard coating (3H)

Active Area

293.42×164.97 mm (H×V)

Bezel Area

296.42×167.97 mm (H×V)

Outline Dimension

306.3×189.15 mm (H×V)

Outline Depth

2.67/2.85 (Typ./Max.) mm

Shape Style

Slim (PCBA Flat, Depth ≤3.2mm)

Holes & Brackets

Without

Landscape or Portrait

Landscape type

Touch Panel

Without

N133BGE-EA1 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

300 cd/m² (Typ.)

Contrast Ratio

650 : 1 (Typ.) (Transmissive)

Display Color

262K (6-bit)

Color Gamut

45% NTSC (CIE1931)

Response Time

3/8 (Typ.)(Tr/Td)

Viewing Angle

45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

6 o'clock

White color Chromaticity

Wx:0.313; Wy:0.329

Sunlight Readable

N

N133BGE-EA1 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

Total Power Consumption

1.98W (Max.)

N133BGE-EA1 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

Lamp Life Time

15K(Min.) (Hours)

Interface Type

Included in panel signal interface

Lamp Driver Board

1.27W (Max.)

N133BGE-EA1 Signal Interface

Signal Category

eDP

Signal Class

eDP (1 Lane)

Input Voltage for Panel

3.3V (Typ.)

Input Current for Panel

200/220mA (Typ./Max.)

Panel Power Consumption

0.71W (Max.)

Interface Type

Connector

Signal Interface

I-PEX - 20455-030E-12, Pitch:0.5 mm, Pin:30 pins
