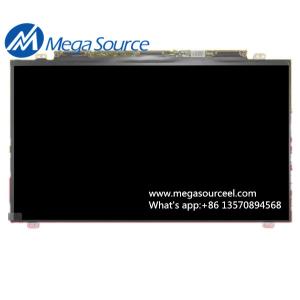

SAMSUNG 15.6inch LTN156AT02-P01 LCD Panel

Categories LCD Panel Types
Place of Origin: Japan
Brand Name: SAMSUNG
Certification: RoHS Compliant
Model Number: LTN156AT02-P01
MOQ: 1 Pcs
Price: Pls Contact sales team
Packaging Details: MODULE
Delivery Time: stock
Payment Terms: T/T , Paypal, Western Union ,Escrow etc.
Supply Ability: 1000
Panel Model: LTN156AT02-P01
Panel Brand: SAMSUNG
Descrition: a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type: a-Si TFT-LCD
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SAMSUNG 15.6inch LTN156AT02-P01 LCD Panel

SAMSUNG 15.6inch LTN156AT02-P01 LCD Panel

Specification for LTN156AT02-P01:

LTN156AT02-P01 Basic Information

Panel Model

LTN156AT02-P01

Panel Brand

SAMSUNG

Descrition

a-Si TFT-LCD ,15.6 inch, 1366×768

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

LTN156AT02-P01 Mechanical Features

Dot Resolution

1366(RGB)×768 (WXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

100 PPI

Aspect Ratio

16:9 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.084×0.252 mm (H×V)

Pixel Pitch

0.252×0.252 mm (H×V)

Active Area

344.232×193.536 mm (H×V)

Outline Depth

5.5 (Max.) mm

Shape Style

Wedge (PCBA Bent, Depth ≥5.2mm)

Landscape or Portrait

Landscape type

Touch Panel

Without

LTN156AT02-P01 Optical Features

Display Mode

TN, Normally White, Transmissive

Display Color

262K (6-bit)

Viewing Direction

6 o'clock

Sunlight Readable

N

LTN156AT02-P01 Electronics Feature

Vertical Frequency

60Hz

LTN156AT02-P01 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

LTN156AT02-P01 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (1 ch, 6-bit)

Interface Type

Connector
