SAMSUNG 15inch LTB150X1-L01 LCD Panel

Categories LCD Panel Types
Place of Origin: Japan
Brand Name: SAMSUNG
Certification: RoHS Compliant
Model Number: LTB150X1-L01
MOQ: 1 PCS
Price: Pls Contact sales team
Packaging Details: MODULE
Delivery Time: stock
Payment Terms: T/T , Paypal, Western Union Escrow etc.
Supply Ability: 1000
Panel Model: LTB150X1-L01
Panel Brand: SAMSUNG
Descrition: a-Si TFT-LCD ,15.0 inch, 1024×768
Panel Type: a-Si TFT-LCD
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

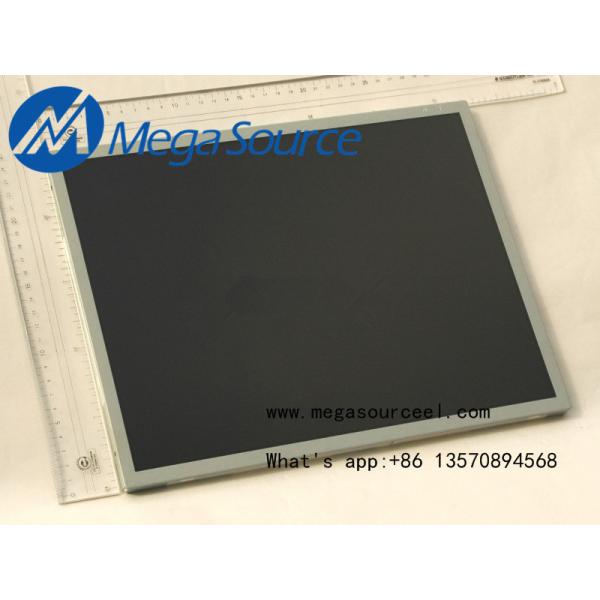

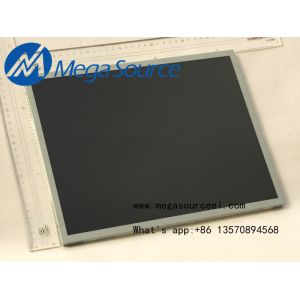

SAMSUNG 15inch LTB150X1-L01 LCD Panel

SAMSUNG 15inch LTB150X1-L01 LCD Panel

Specification for LTB150X1-L01:

LTB150X1-L01 Basic Information

Panel Model

LTB150X1-L01

Panel Brand

SAMSUNG

Descrition

a-Si TFT-LCD ,15.0 inch, 1024×768

Panel Type

a-Si TFT-LCD

LTB150X1-L01 Mechanical Features

Dot Resolution

1024(RGB)×768 (XGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

85 PPI

Aspect Ratio

4:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.099×0.297 mm (H×V)

Pixel Pitch

0.297×0.297 mm (H×V)

Weight

1.29Kgs (Max.)

Active Area

304.1×228.1 mm (H×V)

Outline Dimension

326.5×253.5 mm (H×V)

Outline Depth

15.5 mm

Touch Panel

Without

LTB150X1-L01 Optical Features

Display Mode

S-PVA, Normally Black, Transmissive

Brightness

250 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (Transmissive)

Display Color

16.7M (8-bit)

Color Gamut

72% NTSC (CIE1931)

Response Time

12 (Typ.)(G to G)

Viewing Angle

90/90/90/90 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

Symmetry

Sunlight Readable

N

LTB150X1-L01 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (1 ch, 8-bit)
