| Categories | FAG Machine tool spindle bearing |
|---|---|
| Place of Origin: | Germany |
| Brand Name: | FAG |
| Model Number: | B7019-C-T-P4S-UL |
| Certification: | ORIGINAL |
| Price: | NEGOTIATION |
| Packaging Details: | Standard carton |
| Delivery Time: | 2 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/MONTH |
| MOQ: | 2PCS |
FAG bearings B7019-C-T-P4S-UL adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances | ||
d: 95mm D: 145mm B: 24mm | ||
Type: | B | Standard Steel balls |
Dimension series: | 70 | Medium series |
Dimension（dxDxh） | 95x145x24mm | |
Contact angle: | C | C =15° E = 25° |
Cages: | T | Plastic fiber cage, outer ring guided |
Precision: | P4S | P4S FAG standard, reference to DIN620, higher than P4 |
Bearing arrangement: | U | single bearing, universal assemble |
Preload: | L | light preload |

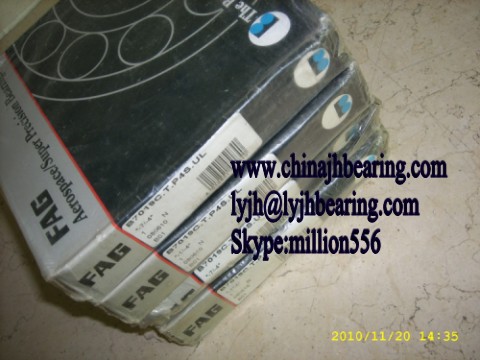

B7019-C-T-P4S-UL High Precision Ball Bearing B7019.C.T.P4S UL
Machine tool main spindle bearing
B7019-C-T-P4S-UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany
Item: B7019-C-T-P4S-UL FAG Ball Bearing，FAG machine tool main spindle bearing
Type: FAG Angular Spindle Ball Bearing
ball: steel ball
Quality: P4 Grade
Dimensions: 95mm x145mm x24mm /Metric
ID (inner diameter)/Bore: 95mm
OD (outer diameter): 145mm
Width/Height/thickness: 24mm
Size:95 x 145 x 24mm
Quantity: One Bearing
Dynamic load rating Cr: 81000 N
Static load rating Cor: 54000 N
Limiting Speed:
Grease Lubrication: 9500 RPM
Oil Lubrication: 15000 RPM
The delivery time: in stock, within one day after getting the order
Package:standard carton or standard wooden case
Shipping term:TNT,FEDEX,DHL Express or your required.
|
