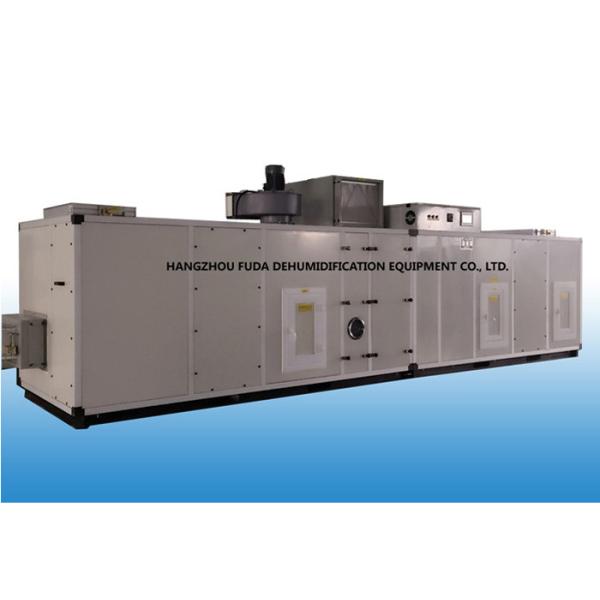

Desiccant Rotor Pharmaceutical Industry Dehumidifer For Dry Air 30%

Desiccant Rotor Pharmaceutical Industry Dehumidifier for Dry Air 30%

Quick Details:

Style: cooling combined with rotor

Desiccant Rotor: Sweden Proflute

Desiccant: silica gel rotor

Process Airflow: 12000m³ /h

Supply Air Parameters: T=25℃ RH=30%

Dehumidifying Efficiency: High

Installed Power: 12.6kw

Power Supply: 380V/3P/50Hz or customized

Certification: ISO9001:2008

Features: intelligent, energy-saving

Usage: air temperature and humidity control

General Description:

ZCB Series Industrial Desiccant Dehumidifier removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications:

• War Industry, Scientific Research, Electric Power Transportation
• Lithium Battery Industry, Biotechnology Pharmaceutical Industry
• Chemical, Daily Chemical Industry, Food Beverage Industry
• Safety Glazing Material Industry, Tyre and Rubber Industry
• Medical Instrument, Vegetables Frozen, Precise Instrument
• Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Specifications:

Competitive Advantage:

• Sweden Proflute silicon gel wheel
• A totally self contained unit
• PLC automatic control system, human-machine interface
• Aluminum alloy frame, anti-cold bridge
• Body modularization design, foam injected double wall casing
• Stainless steel drain pan and bottom boards
• Process and reactivation air flow sectors are insulated
• Electric or steam heating or convert type can be available
• All operation parameters can be on-line observed, ensuring operation reliability
• High temperature safety thermostat cutout
• Electrical interlocking of fan motors, heaters and rotor driving

User Friendly Automatic Interface Control System:

Production Workflow Chart:

We can make suitbale dehumidifying solution for you according to your requirements. If you are interest on our product, kindly contact us now.

Hangzhou Fuda Dehumidification Equipment Co., Ltd. is a national high-tech enterprise and one of the earliest established manufacturers in China specializing in research and development as well as manufacturing of desiccant rotor dehumidifiers. The company also provides design and installation services for various HVAC projects. In 1995, our company was founded by an engineer who participated in the research and trial manufacture of the first desiccant rotor dehumidifier in China. We have a team of professional technicians with 40 years of experience in R&D, structure design, production, installation, and adjustment of desiccant rotor dehumidifiers. We have established a complete set of scientific production, assembly, and adjustment criteria and own international advanced Vaisala temperature and humidity meters and low dew point test instruments. Our rigorous testing method guarantees the advancement, stability, and dependability of "Fuda" products.

Fuda Company has been focusing on integrating advanced technology from both domestic and international sources since its establishment. It collaborates with renowned international manufacturers of silica gel and molecular sieve rotors such as Sweden Proflute and America Coobase. By promptly collecting market information, extracting valuable insights, and prioritizing research development and innovation, the company continuously enhances product quality, positioning Fuda products as leaders in China. Our company places significant emphasis on scientific and technological innovation, research, and development, and leverages the expertise and experimental equipment of the China University of Metrology to jointly develop advanced, newly designed, sophisticated, energy-efficient, and environmentally friendly dehumidification equipment. In recent years, Fuda Company has been honored with the titles of National High-tech Enterprise, Hangzhou Economic-Technological Development Zone Science and Technology Enterprise, and Hangzhou High-tech Enterprise. The company currently holds 4 invention patents, 25 utility model patents, and 14 provincial new products.

Fuda products are widely utilized in various industries, including military, nuclear power, railway, shipbuilding, biopharmaceuticals, food, lithium battery, medical instruments, fine chemicals, rubber tires, electronic instruments, safety glass, film, plastic, wood molding, fruit and vegetable cold storage, power equipment, university laboratories, warehouses, libraries, hospitals, hotels, swimming pools, and villas. These products have been exported to North America, South America, Europe, the Middle East, Southeast Asia, and other regions, such as the United States, the UK, Italy, Australia, Brazil, Japan, Saudi Arabia, Oman, Uzbekistan, Pakistan, Bangladesh, Indonesia, Sri Lanka, the Philippines, Thailand, Egypt, Algeria and so on.

Thanks to 40 years of experience in dehumidification, Fuda Company has become a renowned brand in the field of domestic desiccant rotor dehumidifiers. They specialize in providing constant temperature and constant humidity dehumidification systems for various industries. These systems are part of turnkey projects that integrate temperature and humidity control, water, electricity, and cleanliness. Fuda Company is highly praised by customers both at home and abroad for their expertise in dehumidification.
