Pressure vessel tank

Categories Pressure vessel
Place of Origin: China
Brand Name: EH
Certification: ISO9001:2000
Model Number: Pressure vessel tank-001
MOQ: 1set
Price: Negotiable
Packaging Details: Ply-Wooden Cases
Delivery Time: 30-90 Days
Payment Terms: T/T,L/C
Supply Ability: 10sets per Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

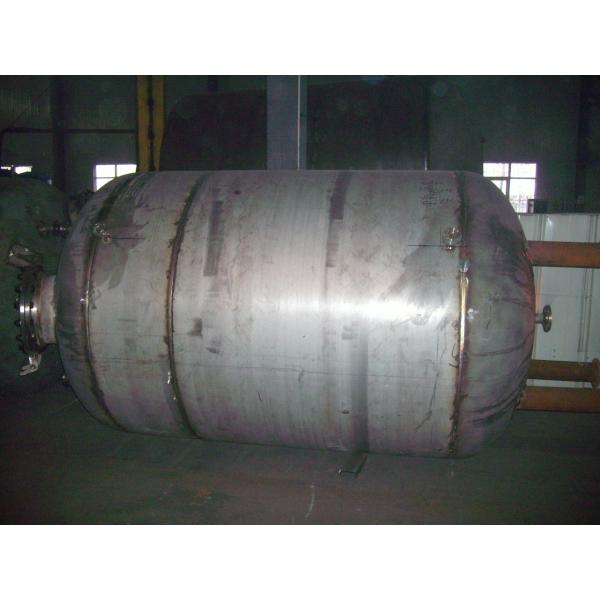

Pressure vessel tank


We offer different dimensions of LPG Tank from 12~100 m3.

Semi-trailer running gear can be configured according to user requirements air suspension system or a leaf spring suspension. Our biggest LPG semi-trailer can carry 58.8-cbm tanker which is the biggest & the best in China.

Our LPG tank all passed strict detection of quality and identification of specialist tangence.


Technical SpecificationParameterSubjectparameter
TankmodelCLG2400-50Liquid indicatorModelUHZ-518C14
LPG Tanker
Overall dimensions11657*2428*3028 mmVersionMagnetic
Net weight10760 KgNominal pressure2.5 Mpa
Vessel typeScope of testing50~2300 mm
Designing pressure1.77 Mpaprecision2.5
Working pressure1.61 MpaModelA42F-2.5-80
Safety ValveVersionBuilt-in
Designing temperature-19~50Nominal pressure2.5 Mpa
Loading materialLiquid petroleum/propane gasNominal radiusDN80
Corrosion margin1.00 mmOpening pressure1.68-1.76 Mpa
Volume50 m3Re-seating pressure≥0.8 Mpa opening pressure
Heat treatmentBulkHandling SystemFeed pipeDN80
Filling factor420 Kg/ m3Drain pipeDN80
Tanker & pressure parts16 MnRAdmission portDN50
material
Hydraulic test pressure2.22 MpaSewage outfall portDN80
Gas tight test pressure1.77 MpaVent nozzle portDN80
Cylinder thickness13.56 mmStandard
Head thickness13.53 mmGB 150-1998 Pressure Vessels
Service life10 years
Safety regulation of pressure vessel
