Sucker Solenoids︱Tubular Electromagnets︱Robot Electromagnets︱Holding Solenoids

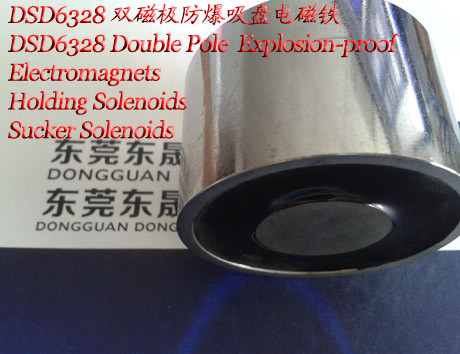

Sucker Solenoids︱Electromagnets-sucker︱ Double pole explosion-proof Sucker Solenoids︱Tubular Electromagnets︱Holding Solenoids----DSD6328(Solenoid Valve︱Solenoid pump ︱Electromagnets)

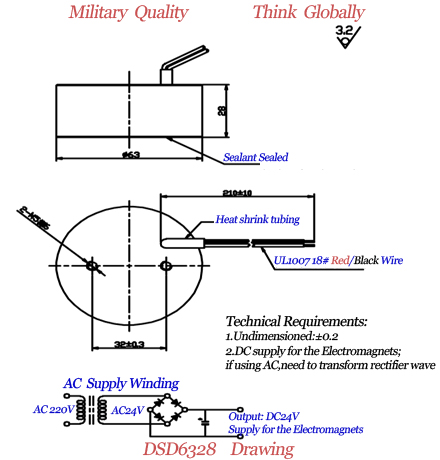

1. Size: ￠63mm, H 28mm

3. Life: Ninety million times (Energized: 2s, De-energized: 2s)

4. Feature:

1) Tubular design

2) Double pole explosion-proof type Sucker Solenoids

3) Using vacuum potting machining the housing

4) Reliable, sealed and adaptable to environment

5) Conforms to the American military standard

6) Extremely long service life

5. Application:

It is used for oil exploration machinery and the robot of the oil well mechanical inspection.

Attentions:

The retention of Sucker Solenoid is in proportion to the pull-in surface and flatness. Thus, the pull-in surface should be smooth and the surface area of the object should be larger than or the same to the Electromagnetic pull-in area to ensure the maximum retention.

How to select the Electromagnets?

1) How long is the stroke?

Operating distance of the Electromagnets

2) The adsorption requirements of the Electromagnet

3) Power Supply

4) How much is duty cycle of the Electromagnet?
