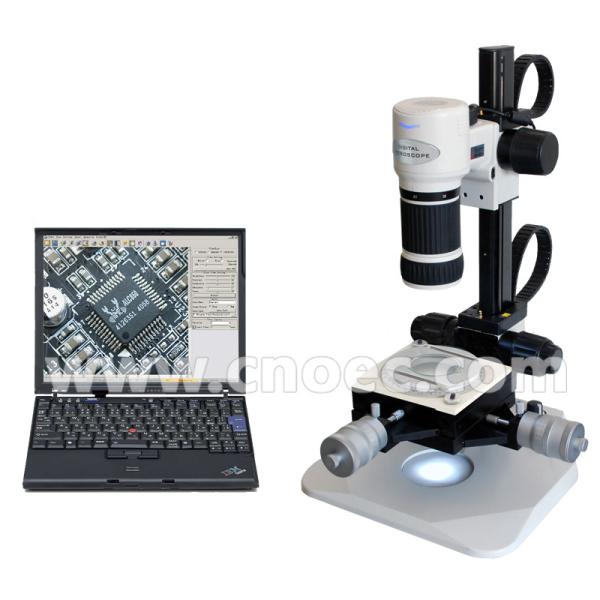

Student 1000X Optical Microscope With Digital Camera A32.0601-230
Description:
Digital Optical Microscope, equipped with a digital camera allowing observation of a sample via a computer. Microscopes can also be partly or wholly computer-controlled with various levels of automation. Digital microscopy allows greater analysis of a microscope image, for example measurements of distances and areas, store your micro image, share and show them to your friends easily!
Specifications:
A32.0601-230 Digital Video Zoom Specification | ||
Zoom Body of Zoom Range | 0.7x-4.5x | |
Zoom Ratio | 1:6.5 | |
Total Magnification | 4.7x-1000x | |
Semi-plan Achromatic Objective | 0.3x, 0.5x, 0.75x, 1.5x and 2x (optional) | |
High-Power Objective Lens | 5x and 10x (optional) | |
Image Sensor | 1.3M pixel 1/2" color CMOS | |
Pixel Size | 5.2um x 5.2um | |
Spectrum Response | 400nm-1000nm | |
Scanning Type | Progressive scanning | |
Exposal Type | ERS | |
Resolution | 1280x1024 | |
Transmission Rate | 16f/s@1280*1024, 30f/s@640*480, 30f/s@320*240 | |
White Balance | Automatic operation supported | |
Exposal Control | Manual opertion supported | |
Image Output | USB2.0, 480Mb/s | |
| Function | Image capture, video recording and measuring function | |
| Laser Pointer | Wave length: 650nm | |
| Working Temperature | 0-50 degree | |
| Minimum System Requirement | Windows 2000, XP and Vista Operation System | |
| PIII 800 CPU or above | ||
| 256MB Memory or above | ||
| 64MB video memory or above | ||
| USB2.0 interfaces | ||
| 1024*768 resolution monitor or above | ||
| 76mm stage LED high track stand | 76mm scope holder | |
| Travel length: 500mm | ||
| Travel distance:253mm | ||
| Coaxial focus: 23mm/circle | ||
| Fine focus: 0.56mm/circle | ||
| XY travel range:2x2'' (50x50mm), the top of XY Dimensions: 150x150mm, Accuracy: 0.005mm or above oer 5mm | ||
| LED transmitted lighting base size: 320x316x21mm | ||
| With a 95x5mm glass plate | ||
| Voltage input: AC 90-240V, 50/60Hz | ||
Optional Accessories | ||
Objectives | 0.3x, Semi-Plan, Outer Dia.30mm, W.D.331mm | A52.0626-03 |
| 0.5x, Semi-Plan, Outer Dia.30mm, W.D.198mm | A52.0626-05 | |
| 0.75x, Semi-Plan, Outer Dia.30mm, W.D.131mm | A52.0626-75 | |
| 1.5x, Semi-Plan, Outer Dia.30mm, W.D.63mm | A52.0626-15 | |
| 2.0x, Semi-Plan, Outer Dia.30mm, W.D.46mm | A52.0626-20 | |
| 5x Infinity corrected long working distance objective | A52.0627-5 | |
| 10x Infinity corrected long working distance objective | A52.0627-10 | |
Illumination Accessories | Iris Diaphragm | A56.0606 |
| LED side light | A56.0607 | |
Tripod & Accessories | Tripod,Full Size, 3.5Kgs, with Panhead. | A50.0604-11 |
| Tilt Ball Head | A50.0604-12 | |
| Super Mag Slider, Made of Magnesium Alloy | A50.0604-13 | |
| Extension Bar, Total Length 600mm | A50.0604-14 | |
| Laptop Tray | A50.0604-15 | |
| Tilt Ball Head Adapte | A50.0604-16 | |
| Polarizing Microscope | Polarizer | A5P.0602 |
Rechargeable Battery | 4.8V 2200mA/h, Nickel hydrogen battery | A50.0602 |
| Battery Charger, Input Voltage 100-240V 50/60Hz, Output Voltage 6.0-6.5V, Current 250-350mA | A50.0602-R | |




|
