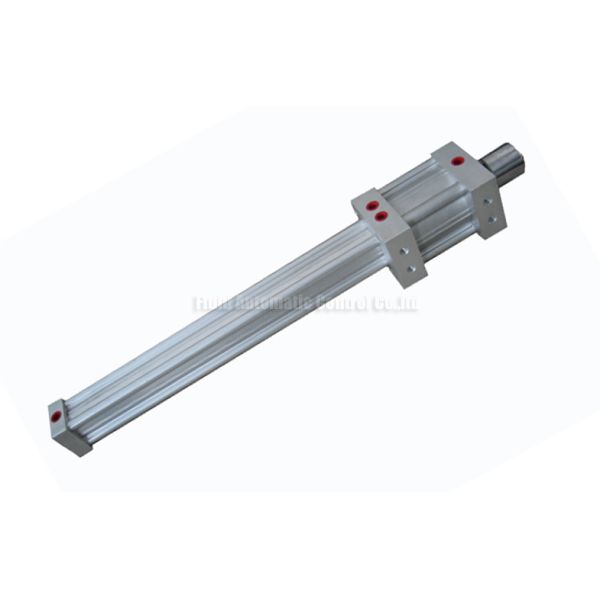

Tie Rod Double Action Pneumatic Air Cylinder For Bottle Blower Machine
BAB bottle blower machine double action air cylinder combined with two cylinder model BAB 63-50-40-360
Quick Detail:
* BAB series bottle blower machine air cylinder adopts new seal material and buffer structure.
* With tie-rod or tie-rod hidden type barrel for option
* Combined with two cylinder, enclosure cylinder and Stretch air cylinder
* Enclosure cylinder bore size from 50mm~250mm,Stretch cylinder from 32mm~100mm
* Motion pattern in double action
* Buffer structure ensure smooth motion
* With high pressure,stable operation
* Tight seal good performance in wear-resisatnce
* Long service life cycle.
Applications:
BAB series bottle blower cylinder designed specially for bottler blower machine,it has been used widely and maturely applied to high pressure pneumatic system like bottle blower machine to meet with the large volume poly-ester bottle requirement
Specifications:
ORDERING CODE | ||||
BAB | 63 (Enclosure cylinder) | 50 (Enclosure cylinder) | 40 (Stretch cylinder) | 360 (Stretch cylinder) |
BAB:Bottle blower machine Sealing Stretch air cylinder with buffer | Bore Size(Enclosure Cylinder) | Stroke (Enclosure cylinder) | Bore size(Stretch cylinder) | Stroke (Stretch cylinder) |
50:50mm | 32:32mm | |||
63:63mm | 40:40mm | |||
80:80mm | 50:50mm | |||
100:100mm | 63:63mm | |||
BA:Bottle blower machine Sealing Stretch air cylinder without buffer | 125:125mm | 80:80mm | ||
160:160mm | ||||
200:200mm | 100:100mm | |||
250:250mm | ||||
SPECIFICATION | ||||||||
Bore size(mm) (Enclosure cylinder) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 |
Stroke Range (Enclosure cylinder) | 30mm~100mm | |||||||
Bore size(mm) (Stretch cylinder) | 32 | 40 | 50 | 63 | 80 | 100 | ||
Stroke Range (Stretch cylinder) | 100mm~1000mm | |||||||
Working Fluid | Filter compressed air | |||||||
Motion Pattern | Double action | |||||||
Pressure Endurance | 1.5MPa | |||||||
Operating pressure range | 0.1~0.9MPa | |||||||
Ambient Temperature | -5~70ºC | |||||||
Speed Range | 30~800mm/s | |||||||
