300*600mm Slim Panel

Categories	LED panel light
Place of Origin:	ZhongshanGuangdong
Brand Name:	GL
Certification:	CE
Model Number:	LC-N006-S3*600
MOQ:	100sets
Packaging Details:	Neutral factory box
Delivery Time:	5-30 days upon order quantity
Payment Terms:	L/C,T/T, Western Union
Supply Ability:	30000pcs

Contact Now

Add to Cart

Company Info.

AMI Lighting & Electronic Appliance Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

300*600mm Slim Panel

Model No: LC-N006-S3*600

Wattage: 18W&27&36W

Luminance: on the chart below

Input Voltage: AC110~240V/50~60Hz

CRI: above 82

Certificate: CE&RoHS, FCC listed power supply

Warranty: 3 years'

Features:

►Ultra-slim(11mm) and fashionable design with superior light guide panel, natural soft light, anti-glare.

►Special circuit design, single broken LED won't affect other LEDs.

►Constant current design, low heat, highly stable performance, with external driver, you could replace driver easily if there are any problems with driver.

►New high efficiency driver with heat protection system which ensures it could work under unstable voltage.

►Energy saving, it could save 10 times energy more than that of incandescent fixtures, Save 2 times of CFL luminaries at same illumination.

►The brightness or color can be dimmable with remote controller or 1~10V dimmer. (optional)

►CE & ROHS approved, with 3 years warranty. UL approved driver is optional.

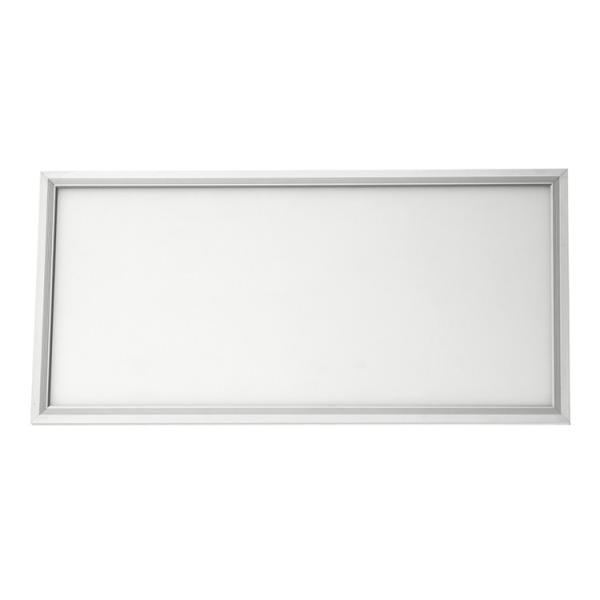

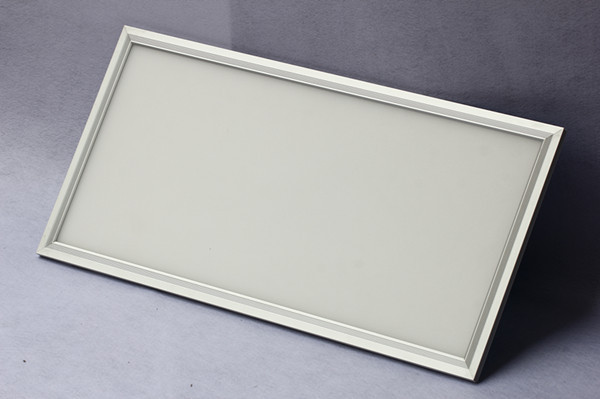

Photo:

Specification:

Item NO.	LC-N006-S3*60018W	LC-N006-S3*60027W	LC-N006-S3*60036W
Dimension	*30060011mm*
LED type	Epistar SMD3014
Power	18W	27W	36W
LED Qty	180pcs	270pcs	360pcs
Lumen output	1260~1380lm	1890~2030lm	2520~2700lm
Input Voltage	AC100-240V, 50/60HZ
Color Temperature	WW(2800-3200K) PW(4000-4500K), CW(5500-6500K)
Beam Angle	120 degree
Material	Die-casting 6063#Aluminum + PMMA Cover + LGP
Surface Finish	White/Silver optional
Dimmable	1-10V/Triac/PWM optional
CRI	>82
Power Factor	>92
IP Rate	IP40, Indoor use only
Work Temperature	-20℃~+40℃
Warranty	3 Years
Certificate	CE, RoHS approval, UL,ETL,PSE SAA listed power supply

Details:
