Home > Steel Pipes >

Carbon Steel Seamless Pipe

Carbon Steel Seamless Pipe

Carbon Steel Seamless Pipe
Carbon Steel Seamless Pipe
Categories Carbon Steel Pipe
Brand Name: Cosco Steel
Certification: ISO,SGS,CQC,etc.
Place of Origin: China
MOQ: 500Kgs/ one size
Price: Negotiation
Payment Terms: T/T, L/C at sight
Supply Ability: 600Tons/Month
Delivery Time: 10-15 days
Packaging Details: Plastic bag in bundle,Wooden box,etc.
Steel Grade: Gr.A, Gr.B, Gr.C,10#,20#,A53 Gr.B etc
End of pipe: PE(plain end),BE(beveled end)
Outside Diameter: NPS 1/8 to NPS 18
Length: 4.8-6.7m,10.7-11.8 or fixed length
Wall thickness:: Sch10s,Sch40s,Sch80s according to ANSI B36.10
Tolerance Of wall thickness: Not be more than +/-12.5%
Surface Finish: Zine coated,3PE coated,black paint coated etc.
Market: U.S.A,Ukraine,Russia,Nigeria,and Middle east,etc
Contact Now
Company Info.
HAINER STEEL INDUSTRIAL CO.,LIMITED
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

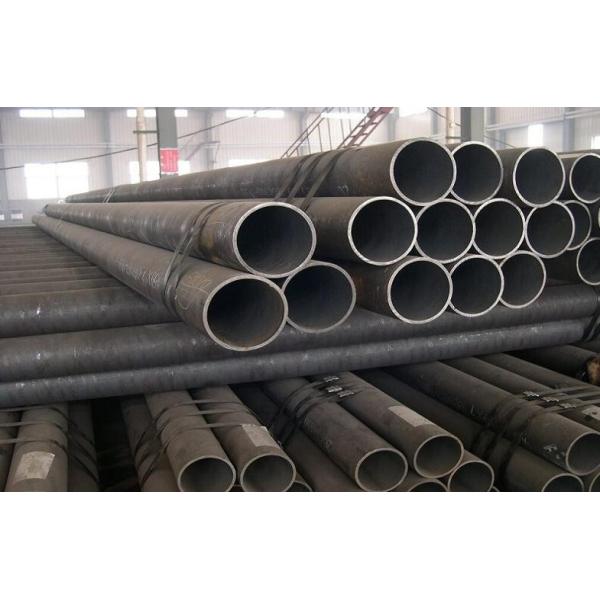

Carbon Steel Seamless Pipe


A106 Gr.B Carbon Steel Seamless Pipe For High-Temperature Service


Description:

  1. Product name: High-temperature seamless steel pipe ATM A106 Gr.B
  2. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
  3. Packing: Black paint coated,Pipe cap both end,plastic bag in bundle
  4. H.S Code: 7306.9000 / 7304.9000 etc.

Applications:


We,this type seamless pipe be used in

  1. Oil,gas,war industry, electric power,chemical industry
  2. Paper making,pharmaceutical
  3. Boiler,heating supply,shipbuilding and other industries

Specifications


Designation A106-02a

Standard Specification for Seamless Carbon Steel Pipe For High-temperature Service

Ordering information

  • Quantity(feet,meters, or number of lengths)
  • Name of material (seamless carbon steel pipe)
  • Manufacture (hot finish or cold finish)
  • Size(NPS and schedule number,outside diameter and wall thickness)
  • Special outside diameter tolerance
  • Length (specific or random)
  • Test report requirements
  • End use of material
  • Hydro-static test
  • Special requirements

Chemical Composition

ASTM A106 ( Chemical Requirements,Composition % )

Grade A Grade B Grade C

Carbon, max (A)

0.25

0.30

0.35

Manganese

0.27 - 0.93

0.29-1.06

0.29-1.06

Phosphorus,max

0.035

0.035

0.035

Sulfur,max

0.035

0.035

0.035

Silicon,min

0.10

0.10

0.10

Chrome,max (B)

0.40

0.40

0.40

Copper,max (B)

0.40

0.40

0.40

Molybdenum,max (B)

0.15

0.15

0.15

Nickel,max (B)

0.40

0.40

0.40

Vanadium,max (B)

0.08

0.08

0.08

(A)For each reduction of 0.01% below the specified carbon maximum,

An increase of 0.06% manganese above the specified maximum will

be permitted up to a maximum of 1.35%

(B)These five elements combined shall not exceed 1%


Variations in Outside

Diameter

1/8 to 1 1/2,incl

+0.4mm

-0.4mm

Over 1 1/2 to 4,incl

+0.79mm

0.79mm

Over 4 to 8,incl

+1.59mm

0.79mm

Over 8 to 18,incl

+2.38mm

0.79mm

Over 18 to 26,incl

+3.18mm

0.79mm

Over 26 to 34,incl

+3.97mm

0.79mm



Our advantage


We owned special equipment for manufacturing various high precision products

  1. Eddy current test machine
  2. Hydro-static pressure test machine
  3. Ultrasonic test machine
  4. Metallographic microscope
  5. Hydraulic universal test machine
