| Categories | Industrial Ventilation Fans |
|---|---|
| Brand Name: | TOPFAN/ODM/OEM |
| Model Number: | MX15051ABH22 |
| Certification: | CE/ROHS |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | US$8 -12 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600,000pcs per month |
| Delivery Time: | 5-12 working days after received your payment |
| Packaging Details: | carton |
| Product Name: | AC Cooling Fan |
| Voltage: | 110V / 220V / 380V |
| Frame: | Aluminum |
| Impeller: | Plastic |
| Bearing type: | Ball Bearing/Sleeve bearing |
| Motor: | Impedance Protected |
| Size: | 150x150x51mm(6.0"x6.0"x2.0") |

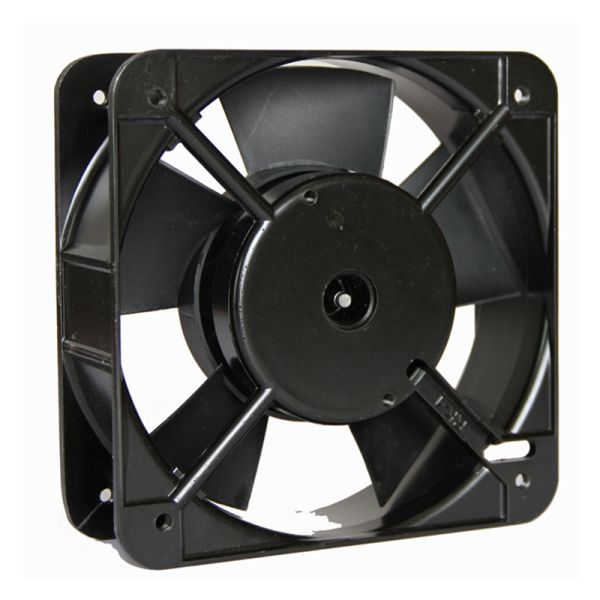

220V AC Industrial Fans / 150x150x51mm AC Ventilation Fans , AC Cooling Fans
220V 150x150x51mm AC Industrial Fan, low noise and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Description:
Specification
Model | MX15051ABH22 |
Outline Dimension | 150x150x51mm |
Rated Voltage | AC 220V |
Voltage Range | AC 200V~240V |
Frequency | 50/60Hz |
Rated Current | 0.26/0.28A±10% |
Power Consumption | 44/35W±10% |
Speed | 2500/2200RPM±10% |
Max. Air flow | 190/155CFM±10% |
Max. Static Pressure | 0.55/0.50Inch-H2O |
Noise Level | 53/48dB(A) |
Weight | 850g |
Dielectric Strength | 1800V/0.5mA/3s |
Temperature Test of Run | t=<70K |
Locked Rotor Protection | t=<130K |
Environmental Specification | Operating Temperature:-20℃~85℃ Operating Humidity:20%~85%RH Storage Temperature:-30℃~140℃ Storage Humidity:20%~95%RH |

|
