25.6V 10ah LiFePO4 Electric Car Batteries LFP8067220-8S1P 256Wh

25.6V 10ah LiFePO4 Electric Car Batteries LFP8067220-8S1P 256Wh

25.6V 10ah LiFePO4 Electric Car Batteries LFP8067220-8S1P 256Wh
25.6V 10ah LiFePO4 Electric Car Batteries LFP8067220-8S1P 256Wh
Categories LiFePO4 Battery Pack
Place of Origin: China
Brand Name: Melasta
Model Number: LFP8067220-8S1P
Certification: CE, ROHS, KC, UN
Price: Negotiable
Packaging Details: Melasta standard carton
Payment Terms: L/C, T/T, D/P, Paypal
Supply Ability: 50000PCS/Day
MOQ: 100pcs
e-mail: linda.hou@melasta.com
skype: linda.hubei
Contact Now
Company Info.
Shenzhen Melasta Battery Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

25.6V 10ah LiFePO4 Electric Car Batteries LFP8067220-8S1P 256Wh

25.6V 10ah LiFePO4 Electric Car Batteries LFP8067220-8S1P 256Wh

Basic Info.

Model NO.:LFP8067220-8S1P
Type:LiFePO4 Battery Pack
Connection Mode:Series and Parallel
Output Voltage Range:16V-29.2V
Capacity:10ah
Max Continuous Discharge Current:10A
Peak Discharge Current:30A
Max Dimension:66mm X 70mm X 230mm
Weight:2000g
Export Markets:Global

Additional Info.

Trademark:Melasta
Packing:Standard Package
Standard:CE, RoHS
Origin:China
HS Code:85078020
Production Capacity:50000pack / Day
Short Products technical specification describe:

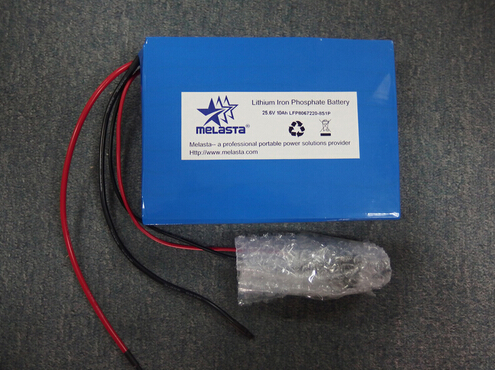

MELASTA LiFePO4 Battery Pack: 25.6V 10Ah with PCM (LFP8067220-8S1P, 256Wh)
Battery pack type: 24V 10Ah
Max Dimensions (LxWxH): 66mm X 70mm X 230mm
Weight approx. 2.0kg

Product Description

This LiFePO4 Battery pack was assemble by 8PCS LFP8067220 LiFePO4 single cells. So the real voltage of this battery pack is 25.6 Volt, the working voltage range from 16 V to 29.2V. Usually, we use it to replace the 24V Lead acid battery, this is why we called it 36V battery. And LiFePO4 has trends to be widely applied in Hybrid Electric Vehicles, E-Bikes, E- Scooters, Power tools, Medical device, RC models, Robot etc. Electric products for it's performance as below:
1) Long cycle life: More than 2000 times (charge and discharge at 1C, 80% capacity retention after 2000 cycles).
2) High safety: No fire and explosion in overcharge test and in short-circuit test, nail test, heat shock up to 130 celsius degree test.
3) Good charging and discharging performance.
4) Environmental-friendly: All raw material of the batteries are environmental-friendly.
5) Wide working temperature range: From -10 celsius degree to 70 celsius degree.
Accessories:
1. Protection One PCM (30A/35A limited) installed with the battery pack and protects the battery from
Overcharge (>29.2V)
Over discharge (<16V)
Over drain ( >35 AMPS)
Short circuits
Must wait min of 30 minutes after battery is fully charged to allow the PCM to perform balance function on all the cells within the pack.
2. Prewired Charge: UL 3135 AWG#18(red and black), Length= 205± 5mm;
Discharge wire: UL3135 AWG#12(red and black), Length=185 ± 5mm
Plug: No available ( depands on cutomers requirement)
MELASTA LiFePO4 Battery Pack:25.6V 10Ah with PCM (LFP8067220-8S1P, 256Wh )
PackageMELASTA LiFePO4 Battery Pack:25.6V 10Ah with PCM (LFP8067220-8S1P, 256Wh )
Output voltage24V working voltage, peak voltage29.2V, cut-off Voltage: 16V
Battery Capacity10Ah (256Wh)
Cycle life> 1500 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
ProtectionOne PCM (30A/35A limited) installed with the battery pack and protects the battery from
Overcharge (> 29.2V)
Over discharge (<16V)
Over drain ( >35 Amps)
Short circuits
Must wait min of 30 minutes after battery is fully charged to allow the PCM to perform balance function on all the cells within the pack.
Charging rateStandard charge: 0.2C ( 2A); charge time: 6h
Fast charge: 0.4C( 4A); charge time: 3.6h
Discharging RateStandard discharge: 0.2C ( 2A),
Max continuos dishcarge: 1.25C(12.5A continuous limited by PCM)
Peak discharge: 2.5C(25A < 30 seconds limited by PCM)
Charging temperature:0 to 45 degrees Celsius
Discharge temperature:-10 to 70 degrees Celsius
Storage temperature:-20 to 40 degrees Celsius
Max Dimensions (LxWxH)66mm X 70mm X 230mm
Weightapprox.2.0kg
Cycle life is 4-5 times more than NiMH pack, so it is much economic
WarningPlease negotiate with MELASTA technicians to learn more Knowledge on LiFePO4 battery .
