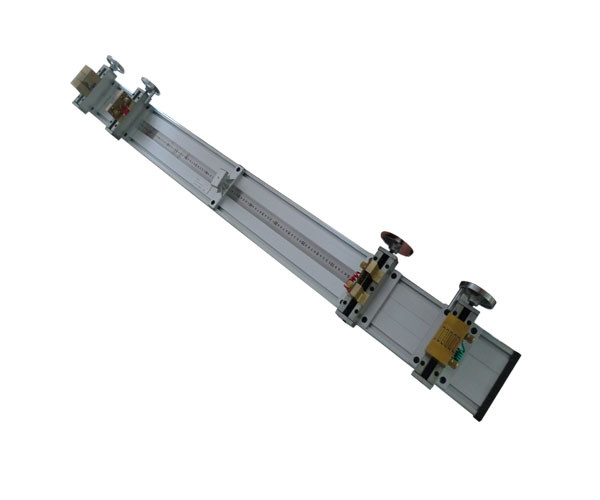

1M General Conductor Electric Resistance Fixture Device GB5023.2

General Conductor Electric Resistance Fixture

This general conductor electric resistance fixture complies with GB5023.2-97 national standard requirements, supporting the use of the electric bridge.

Fixture current end shape is a right angle shape of the jaws of death, making current end well contact with the specimen, and the uniform distribution of the current in measured cores, reducing contact resistance measurements. Suitable for circular, fan-shaped copper and aluminum wire and enameled wire.

Test length: 1M, with voltage measurement end and current input

Jig size: Jig in contact with the sample length is 50mm

Voltage fixture opening distance: 42.5mm

Current fixture opening distance: 13.8mm, can measure the sample which diameter is less than Φ26
