| Brand Name: | Gaoxin |
| Model Number: | GX-5079 |
| Certification: | ISO 2008 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | negotiation |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 15 working days |
| Packaging Details: | Non-fumigation wooden box |
| material: | 304# stainless steel |
| color: | grey |
| type: | vertical type |
| Volume: | 560 * 320* 750 mm |
| Weight: | 69kg |
| Power: | 1∮ AC 220V , 50HZ |

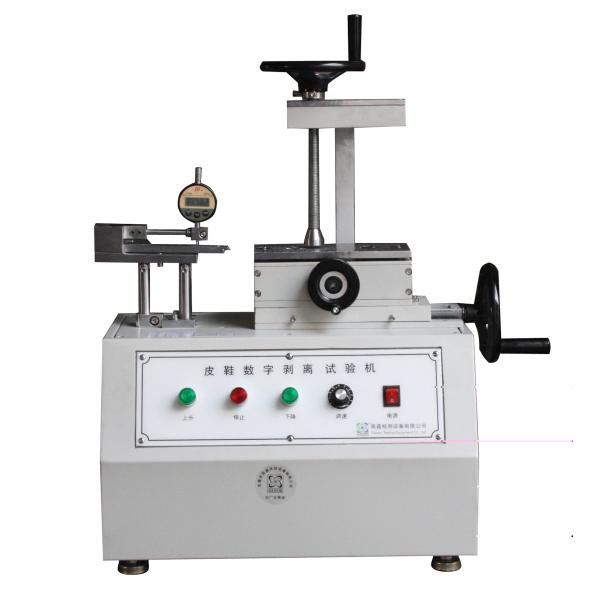

Silver Steel Footwear Testing Equipment For Peel Strength Test For BS 20344 Standard
1. Quick Details:
Alternative name | Shoe Peeling Strength Testing Instrument |
Function | Tester is used to determine the peeling strength between the sole and upper of a shoe. |
Weight | 69kg |
Volume | 560 * 320* 750 mm |
Corresponding test standard | GB/T 3903.3-2008. BS 20344 |
2. Description:
Shoes Peel Strength Tester is used to determine the peeling strength between the sole and upper of a shoe. by peeling blade, peel the upper of the shoe from its sole to get the peeling force, then based on the blade's width to calculate its peeling strength.
3. Features:
a. Elegant and nice structure design
b. Easy to operate
c. Test peeling strength between the sole and upper of a shoe
4. Specifications:
Model | GX-5079 |
Width of cutter | 20±0.1mm and 10±0.05 mm |
Speed of cutter moving down | 20±2mm/min (adjustable) |
Distance between locating rod and pull rod | 50~70 mm |
Dial indicator | 0.001~ 10 mm |
Average elevating range | 40 mm |
Volume | 560 * 320* 750 mm |
Weight | 69kg |
Power | 1∮ AC 220V , 50HZ |

|
