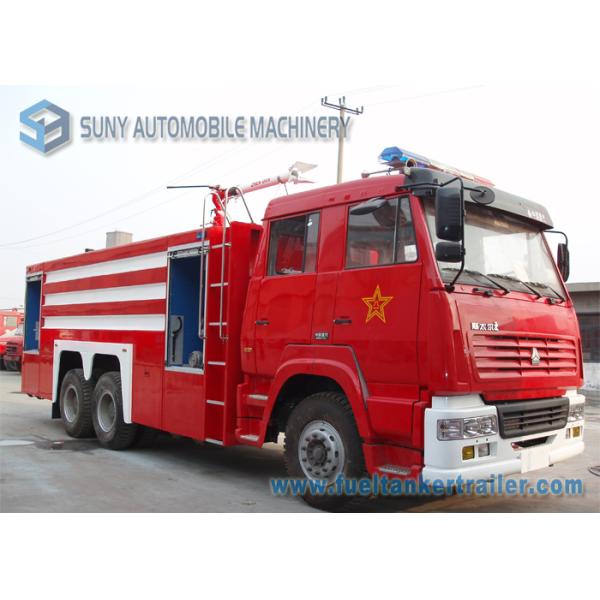

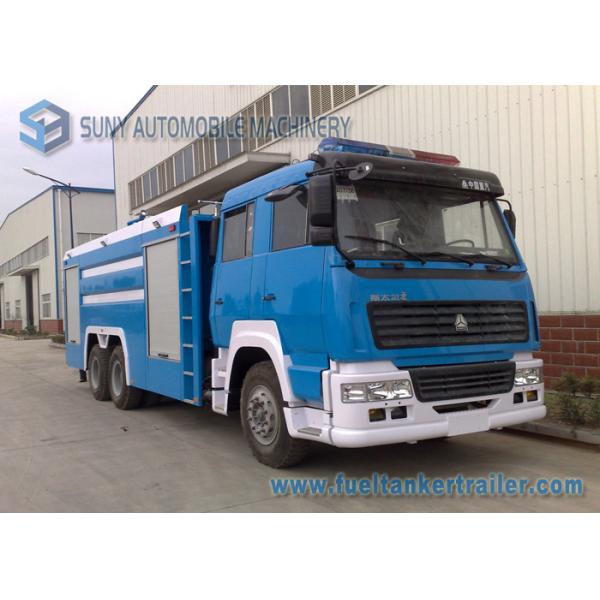

HOWO 15000L 6X4 3 Axle Fire Fighting Trucks ZZ5347V4647D1 Chassis

Categories Fire Fighting Vehicle
Brand Name: SUNY
Model Number: SY5251XFHW
Certification: CCC, ASME, BV, SGS, etc
Place of Origin: China
MOQ: 1 unit
Price: USD65000 /set- USD85000/set
Payment Terms: Western Union, T/T, L/C
Supply Ability: 200 set per month
Delivery Time: 15-25 working days
Packaging Details: Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/ model: HOWO/ ZZ5347V4647D1
Water tank capacity: 15000L
Tank material: Q235
Dimension: 10540*2500*3680 mm
Engine: D12.42-40
Drive: 6x4
Wheel base: 4600+ 1350 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HOWO 15000L 6X4 3 Axle Fire Fighting Trucks ZZ5347V4647D1 Chassis

HOWO 15000 L 6X4 3 Axle Water Tank Fire Fighting Truck 420 Hp Double Row
Description & application:
1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
2- There are Water and foam fire truck, Dry powder fire truck and Ladder fire truck optional

Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.


Specifications:


HOWO 15000 L 6X4 3 Axle Water Tank Fire Fighting Truck 420 Hp Double Row


Product

Fire truck

Vehicle

description

Overall dimensions ( mm )

10540*2500*3680

GVW ( kg )

29880

Mass in working order ( kg )

14320

Rated loading capacity ( kg )

15000

chassis

parameters

Chassis mod

ZZ5347V4647D1

Fact cubage ( L )

17000

tanker dimension ( mm )

15000

Approach/Departure angle ( ° )

16/12

F/R overhang ( mm )

1570/2790

Wheel base ( mm )

4600+1350

F/R track base ( mm )

2022/1830

Traction system

6X4

Number of axles

3

F/R axle-load ( Kg )

7000/22800

Spring plate

10/12

Tire specification

12.00-20

Number of tires

10

Electric system

24V

Allowable passengers in cab

2+4

Air-conditioner

Y


Engine

Engine model

D10.28-40 D12.38-40 D12.42-40

Type of fuel

diesel

Exhaust ( ml )

9726 11596

Rated Power ( kw )

276 279 309

Horse power

375 380 420

Max speed (km / h )

80

Emission standard

EUR 4

Equipment

Middle and low pressure pump :CB20.10/30.60

Flow:middle pressure 30 L / S low pressure 60 L / S

Pressure: middle pressure 2.0MPa low pressure 1.0MPa

PL48 Fire Pump Flow: 48 L / S

Pressure: 1.0~1.2 MPa

Fire distance ( water ) : ≥ 65 m

Production cycle

15-20 days

Warranty

12 month, from the date of supply
