| Categories | Submersible Fountain Pumps |
|---|---|
| Brand Name: | YICHENG |
| Model Number: | QS series |
| Certification: | CE |
| Place of Origin: | Guangzhou, China |
| MOQ: | one piece |
| Price: | negotiation |
| Payment Terms: | T/T, western union, L/C, Ex-worked |
| Supply Ability: | 1000000pcs/month |
| Delivery Time: | within one week |
| Packaging Details: | carton |
| Material: | Iron |
| Speed: | 2860 rpm |
| Type: | diving |
| Phase: | 380V or 220V(requests) |
| Depth into water: | totally into water |
| Water quality: | PH 6.5~8.5 |

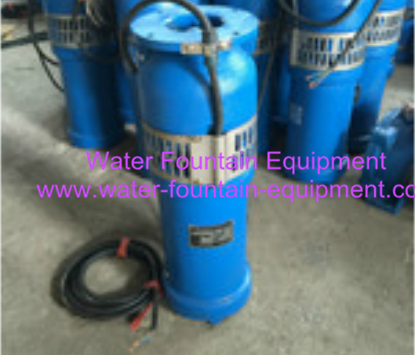

Diving Type Cast Iron Underwater Fountain Pumps For Water Fountains Flange Connect
Description:
QS series diving type is pump and three-phase asynchronous electric submersible pump units into electric power irrigation and drainage machinery. With small volume, light weight, mobile convenience, easy installation and don't need to water before driving, etc.
Widely used in agricultural irrigation, industrial water supply and drainage, municipal construction and fountain, engineering and other industries.
Connection would be flange type, you can ask us to offer the flange or buy yourself.
Features:
1. Motor: F class insulation
2. Bearing: NSK brand
3. O rings and cable: silastic
Working conditions:
1. Power Supply: 380V/50Hz, 3 Phases
2. Medium: on Corrosive clean water with Temperature less than +30°C, the practical ratio less than 0.01%; diameter less than 0.2 mm; PH 6.5~8.5
3. Pump shall be submerged totally in water, under liquid length from 0.5m to 5m.
| Model | Flow | Head | Power | Output | Rotate | Max radial | Weight | Flange Size | |||
| Rate | size | Speed | size x height | outer size | inner size | certre distance | qty of bolt hole & size | ||||
| (m3/h) | (m) | (KW) | (mm) | (rpm) | (mm) | (kg) | (mm) | (mm) | (mm) | (pcs) (mm) | |
| QS65-7-2.2 | 65 | 7 | 2.2 | 100 | 2860 | 160 x 647 | 45 | 170 | 100 | 150 | 4 - Φ11 |
| QS25-17-2.2 | 25 | 17 | 2.2 | 52 | 2860 | 160 x 641 | 45 | 156 | 50 | 135 | 4 - Φ11 |
| QS100-6-3 | 100 | 6 | 3 | 125 | 2860 | 174 x 742 | 48 | 174 | 125 | 155 | 4 - Φ11 |
| QS65-10-3 | 65 | 10 | 3 | 95 | 2860 | 160 x 687 | 45 | 170 | 90 | 150 | 4 - Φ11 |
| QS20-30/2-3 | 20 | 30 | 3 | 60 | 2860 | 160 x 795 | 50 | 156 | 50 | 135 | 4 - Φ11 |
| QS100-9-4 | 100 | 9 | 4 | 90 | 2860 | 210 x 651 | 60 | 183 | 90 | 165 | 4 - Φ11 |
| QS40-20-4 | 40 | 20 | 4 | 70 | 2860 | 210 x 656 | 70 | 180 | 80 | 160 | 4 - Φ11 |
| QS25-32-4 | 25 | 32 | 4 | 70 | 2860 | 210 x 643 | 73 | 150 | 80 | 130 | 4 - Φ11 |
| QS65-13-4 | 65 | 13 | 4 | 70 | 2860 | 210 x 670 | 60 | 180 | 90 | 160 | 4 - Φ11 |
| QS20-37-4 | 20 | 37 | 4 | 52 | 2860 | 184 x 895 | 60 | 135 | 56 | 108 | 4 - Φ11 |
| QS40-25-5.5 | 40 | 25 | 5.5 | 70 | 2860 | 210 x 705 | 72 | 180 | 75 | 160 | 4 - Φ11 |
| QS32-30/2-5.5 | 32 | 30 | 5.5 | 76 | 2860 | 184 x 852 | 75 | 162 | 78 | 145 | 4 - Φ11 |
| QS250-5-5.5 | 250 | 5 | 5.5 | 140 | 2860 | 210 x 727 | 70 | 210 | 140 | 190 | 4 - Φ11 |
| QS100-12-5.5 | 100 | 12 | 5.5 | 90 | 2860 | 210 x 710 | 75 | 180 | 90 | 160 | 4 - Φ11 |
| QS100-10-5.5 | 100 | 10 | 5.5 | 90 | 2860 | 210 x 651 | 76 | 183 | 90 | 165 | 6 - Φ11 |
| QS30-36/2-5.5 | 30 | 36 | 5.5 | 60 | 2860 | 184 x 840 | 75 | 165 | 63 | 134 | 4 - Φ11 |
| QS40-28-5.5 | 40 | 28 | 5.5 | 70 | 2860 | 210 x 705 | 75 | 180 | 75 | 160 | 4 - Φ11 |
| QS65-18-5.5 | 65 | 18 | 5.5 | 90 | 2860 | 210 x 685 | 75 | 180 | 90 | 165 | 4 - Φ9 |
| QS160-8-5.5 | 160 | 8 | 5.5 | 115 | 2860 | 210 x 747 | 75 | 210 | 125 | 190 | 4 - Φ11 |
| QS20-50/4-5.5 | 20 | 50 | 5.5 | 52 | 2860 | 184 x 990 | 80 | 135 | 56 | 108 | 4 - Φ11 |
| QS80-12-5.5 | 80 | 12 | 5.5 | 88 | 2860 | 184 x 766 | 70 | 166 | 85 | 145 | 4 - Φ11 |
| QS50-24/2-5.5 | 50 | 24 | 5.5 | 88 | 2860 | 184 x 892 | 80 | 80 | 166 | 84 | 4 - Φ11 |
| QS100-13-5.5 | 100 | 13 | 5.5 | 90 | 2860 | 210 x 710 | 75 | 75 | 180 | 90 | 4 - Φ11 |
| QS20-75/5-7.5 | 20 | 75 | 7.5 | 52 | 2860 | 184 x 1078 | 98 | 98 | 135 | 56 | 4 - Φ11 |
| QS50-36/3-7.5 | 50 | 36 | 7.5 | 88 | 2860 | 184 x 1060 | 90 | 90 | 166 | 84 | 4 - Φ11 |
| QS40-40/2-7.5 | 40 | 40 | 7.5 | 65 | 2860 | 184 x 907 | 75 | 75 | 150 | 65 | 4 - Φ11 |
| QS80-22/2-7.5 | 80 | 22 | 7.5 | 88 | 2860 | 184 x 963 | 90 | 90 | 166 | 85 | 4 - Φ11 |
| QS80-20-7.5 | 80 | 20 | 7.5 | 85 | 2860 | 210 x 707 | 82 | 82 | 184 | 86 | 4 - Φ11 |
| QS100-15-7.5 | 100 | 15 | 7.5 | 90 | 2860 | 210 x 725 | 75 | 75 | 180 | 90 | 4 - Φ11 |
| QS32-45/3-7.5 | 32 | 45 | 7.5 | 76 | 2860 | 184 x 1000 | 90 | 90 | 162 | 78 | 4 - Φ11 |
| QS25-56/2-7.5 | 25 | 56 | 7.5 | 65 | 2860 | 184 x 878 | 80 | 80 | 150 | 66 | 4 - Φ11 |
| QS65-25-7.5 | 65 | 25 | 7.5 | 75 | 2860 | 210 x 739 | 75 | 75 | 180 | 75 | 4 - Φ11 |
| QS12.5-100/5-7.5 | 12.5 | 100 | 7.5 | 52 | 2860 | 252 x 1045 | 99 | 99 | 35 | 56 | 4 - Φ11 |
|
