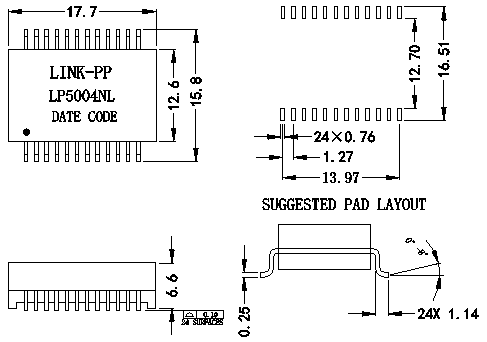

S558-5999-AR-F Gigabit Transformer , LP5004NL Lan 1000Base-T Xfrmr 24Pins SMT

S558-5999-AR-F Gigabit Transformer , LP5004NL Lan 1000Base-T Xfrmr 24Pins SMT

Electrical Specifications @ 25°C

1CT : 1CT Transmitter, 1CT : 1CT Receiver

Surface Mount XFRMR MOD LAN GIGABIT EXTEMP 24P

Lead free / RoHS Compliant S558-5999-AR-F 1000Base-T

Inductance OCL: 350uH Min @ 100KHz 0.2V 8mA DC BIAS,
350mA Current Capability
Leakage Inductance: 0.50uH Max @ 100KHz 0.2V
Interwinding Capacitance: 25PF TYP @ 100KHz 0.2V
DC Resistance: 0.9Ω Max
Turn Ratio: 1CT:1CT±5%

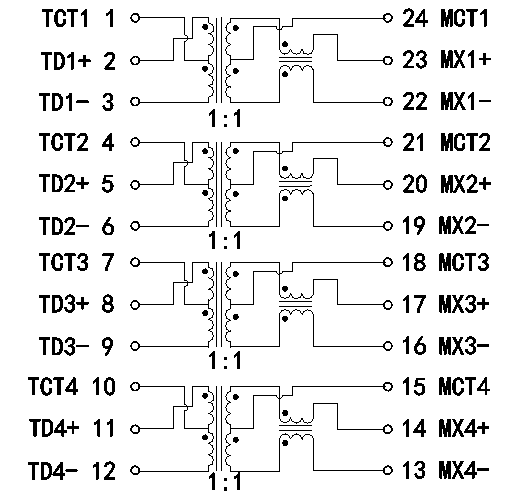

Polarity: 2-23,5-20 ,8-17,11-14In-Phase
Return Loss 0.5-30 MHz - 18dB Min
40.0MHz - 14.4 dB Min
50.0MHz - 13.1 dB Min
60-80MHz - 12.0 dB Min
Cross Talk: 0.50-60MHz - 40dB Min
60-100MHz -35dB Min
Common Mode Rejection: 0.5-100MHz - 20dB Min
Isolation HI-POT: 1500VAC 1mA 1S
Product Type: Green Product & Halogen Free Products
Operating Temperature: -40℃ TO ＋85℃

NOTES:

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias current.
4.RoHS"NL" peak solder rating 255±5℃.
