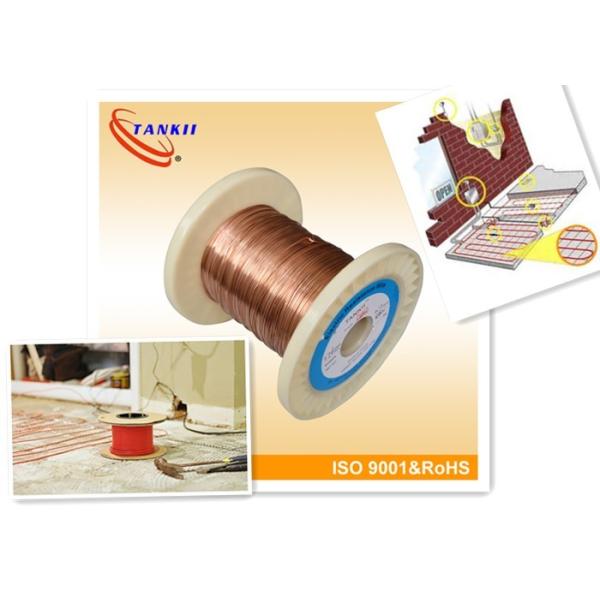

Dia 0.8mm 1.2mm CuNi23Mn Copper Nickel Wire For Under Floor Heating Cable

Dia 0.8mm 1.2mm CuNi23Mn Copper Nickel Wire for Under Floor Heating Cable

Product Description
CuNi23 alloy wire: low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.ng cable.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
23	0.5	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250℃
Resisivity at 20℃	0.35%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	16(Max)
Melting Point	115℃
Tensile Strength,N/mm2 Annealed,Soft	270~420 Mpa
Tensile Strength,N/mm2 Cold Rolled	350~840 Mpa
Elongation(anneal)	25% (Max)
Elongation(cold rolled)	2% (Max)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite
Magnetic Property	Non

CuNi23Mn Tradenames:

Alloy 180, CuNi 180, 180 Alloy, MWS-180, Cuprothal 180, Midohm, HAI-180, Cu-Ni 23, Alloy 380, Nickel alloy 180

Resistance Alloy 180 – CuNi23Mn Sizes / Temper Capabilities

Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm

Enameled condition is available

prothal 30

Resistance Alloy 30-CuNi2 Size/Temper Capabilities
1, Condition: Bright, Annealed, Soft
2, Wire/Ribbon diameter 0.02mm-1.0mm packing in spool, big than 1.50mm packing in coil
3, Rod, Bar diameter 1mm-30mm
4, Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
5, Enameled condition is available

Resistance Serise:

Main property type		NC003 Cuni1	NC005 CuNI2	NC010 CuNI6	NC012 CuNi8	NC015 CuNI10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNI44
Main chemical composition	Ni	1	2	6	8	10	14.2	19	23	30	34	44
	MN	/	/	/	/	/	0.3	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest
Max Working Temperature		/	200	220	250	250	300	300	300	350	350	400
Density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Resistivity at 20 °c		0.03 ±10%	0.05± 10%	0.10± 10%	0.12± 10%	0.15± 10%	0.20± 5%	0.25± 5%	0.30± 5%	0.35± 5%	0.40± 5%	0.49± 5%
Temperature Coefficient of Resistance		<100	<120	<60	<57	<50	<38	<25	<16	<10	-0	<-6
Tensile Strength mpa		>210	>220	>250	>270	>290	>310	>340	>350	>400	>400	>420
Elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25	>25	>25
Melting Point °c		1085	1090	1095	1097	1100	1115	1135	1150	1170	1180	1280
Coefficient Of Conductivity		145	130	92	75	59	48	38	33	27	25	23

Product Tags:


*From:	Your email address is incorrect!
*To:	Shanghai Tankii Alloy Material Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Copper Nickel Alloy Wire
Brand Name:	TANKII
Model Number:	CuNi23
Certification:	ISO
Place of Origin:	China
MOQ:	20kg
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	20,000kg/Week
Packaging Details:	Wire/Ribbon diameter 0.02mm-1.0mm packing in spool, big than 1.50mm packing in coil
State:	Soft annealled or Hard
Sample supply:	small sample supply is available
Conductor Type:	: Solid
Application:	: Heating
series:	: CuNi(1,2,6,8,10,14,19,23)
Type:	: Bar,Wire, Ribbon and Strip
