| Categories | Grinding Media Balls |
|---|---|
| Brand Name: | ZW |
| Model Number: | 45#,60Mn B2,B3,B4,High Chrome,Low Chrome |
| Certification: | ISO9001:2008 |
| Place of Origin: | Jinan city,Shandong province,China |
| MOQ: | 1 Ton |
| Price: | Negotiable |
| Payment Terms: | Western Union, D/P, D/A, L/C, T/T |
| Supply Ability: | Annual output 50000 tons |
| Delivery Time: | 10-20 days after order confirmation |
| Packaging Details: | big bags ,steel drum |
| Key words: | grinding media ball , grinding ball, grinding steel ball, mill ball |
| Breakage Guarantee: | 1% Max |
| Surface Hardness: | HRC 60-68 |
| Production Line: | forging and casting |
| Heating method: | By electric furance |
| Service: | One-stop Service |
| Quality Control: | By Inner and the third party |
| HS Code: | 73261100 |
| Company Info. |
| Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Manufacturer : Jinan Zhongwei

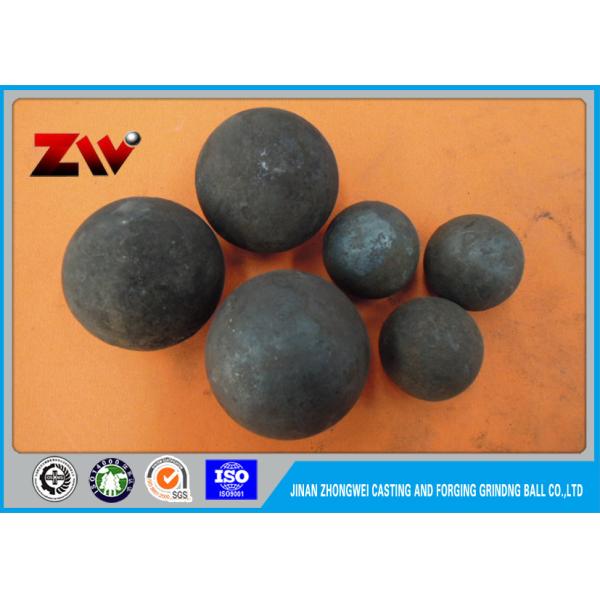

We mainly produce Forged Grinding media Balls, Rolled Grinding media Balls
and Cast Grinding media Balls as follows:
1). 60Mn Forged Grinding Balls and Rolled Grinding Balls (20mm to 180mm)
2). B2 Forged Grinding Balls and Rolled Grinding Balls (20mm to 180mm)
3). B3 Forged Grinding Balls and Rolled Grinding Balls (20mm to 180mm)
4). B4 Forged Grinding Balls and Rolled Grinding Balls (20mm to 180mm)
5). High chrome cast grinding ball (12.7mm to 120mm)
6) . Medium chrome cast grinding ball (12.7mm to 120mm)
7). Low chrome cast grinding ball (12.7mm to 120mm)
Type and Chemical Composition of Forged grinding media balls Ball
Name | Material | C | Mn | Si | Cr | S | P |
ZW-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
ZW-2 | 60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
ZW-3 | 65Mn | 0.60-0.70 | 0.90-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
ZW-4 | B2 | 0.70-0.85 | 0.70-0.80 | 0.17-0.37 | 0.2-0.7 | ≤0.03 | ≤0.03 |
ZW-5 | 75SiMn | 0.70-0.90 | 0.70-1.20 | 0.4-0.8 | ≤0.25 | ≤0.03 | ≤0.03 |
ZW-6 | Wear-resistant Alloy | 0.50-0.65 | 0.4-1.0 | 1.4-1.8 | 0.9-1.2 | ≤0.03 | ≤0.03 |
Type and Chemical Composition of Cast iron grinding media Ball
Chemical composition ( % )
Name | C | Si | Mn | Cr | Mo | Cu | P | S |
High Chrome grinding balls | 2.0-3.2 | ≤1.0 | 0.3-2.5 | 10.0-28.0 | ≤3.0 | ≤1.0 | ≤0.1 | ≤0.1 |
Medium Chrome grinding balls | 2.0-3.2 | ≤1.0 | 0.3-2.5 | 3.0-6.0 | 0-1.0 | 0-1.2 | ≤0.1 | ≤0.06 |
Low Chrome grinding balls | 2.1-3.6 | ≤1.5 | 0.3-2.5 | 1.0-3.0 | 0-1.0 | 0-0.8 | ≤0.1 | ≤0.1 |
Physical Property of Forged grinding media Ball
Name | Material | Impact Test(Ak.J/cm²) | Endurance Test Times(5m/T) | Surface Hardness (Φ25mm- Φ60mm) | Core Hardness (Φ25mm- Φ60mm) | Surface Hardness (Φ70mm- Φ100mm) | Core Hardness (Φ70mm- Φ100mm) | Breakage |
ZW-1 | 50Mn | ≥12 | ≥10000 | ≥56 | ≥35 | ≥56 | ≥28 | <1% |
ZW-2 | 60Mn | ≥13 | ≥10000 | ≥58 | ≥38 | ≥58 | ≥29 | <1% |
ZW-3 | 65Mn | ≥15 | ≥12000 | ≥60 | ≥42 | ≥60 | ≥30 | <1% |
ZW-4 | B2 | ≥17 | ≥12000 | ≥60 | ≥52 | ≥60 | ≥50 | <1% |
ZW-5 | 75SiMn | ≥16 | ≥12000 | ≥60 | ≥50 | ≥60 | ≥48 | <1% |
ZW-6 | Wear-resistant Alloy | ≥17 | ≥12000 | ≥60 | ≥54 | ≥60 | ≥52 | <1% |
Physical Propertof Casting grinding media Ball
MAME | BRAND | HARDNESS | IMPACT VALUE ak(J/cm2) | METALLOGRAPHIC ORGANIZATION | BALLS | |
FATIGUE LIFE | ||||||
QUENCHING STATE(A) | NO- QUENCHING STATE(A) | IMPACT | ||||
High Chromium Casting Ball | ZQCr26 | ≥60 | ≥45 | ≥4.0 | M+C | ≥8000 |
ZQCr20 | ≥60 | ≥45 | ≥3.5 | ≥8000 | ||
ZQCr17 | ≥60 | ≥49 | ≥3.0 | ≥8000 | ||
ZQCr13 | ≥60 | ≥50 | ≥2.3 | ≥8000 | ||
Grinding Media Packaging
Big bags (1000Kg Per Bag)
Steel drums (850~920Kg Per Drum)
Grinding Media Balls Applied Fields
1. Mining
2. Cement Plants
3. Chemical Industries
4. Power Stations
Shipping and delivery
Port of loading:Qingdao Port,China
Delivery time : Normally 2-3 weeks after down payment received.
Partial shippment allowed
FAQ
· Payment terms : T/T (30% DP,balance against copy of B/L.; L/C
· Samples : Free samples are provided for test before trial order
· MOQ : 1 Ton
For more information about our products ,Pls feel free to contact us.
TEL: +86 15588873848
Contact : Jessise
|
High Hardness Grinding Media Balls
High hardness forged steel grinding media balls / steel mill media
55-65HRC Hardness Grinding Media Balls for ball mill with 55-65HRC Hardness
25-150mm 45# 60Mn B2 B3 Low medium high chrome grinding media balls for mining cement coal
SAG and AG Ball milling media , forged steel grinding ball WITH 50-55HRC Hardness
Good Wear Resistant Grinding Media Ball Forged And Cast Low Wear
125mm Forged grinding media ball for ball mill with B3 B4 materials HRC 60-65
Mineral Processing grinding media steel balls for ball mill 60mn HRC 58-62
Forged Grinding Media steel balls for Ball Mill Diameter 20mm to 150mm
Chemical Industry grinding media balls , forged Diameter 20mm - 150mm
