| Brand Name: | MX |
| Model Number: | MX12038ABH22 |
| Certification: | CE / ROHS |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | negotiation |
| Payment Terms: | T / T or western Union |
| Supply Ability: | 40 , 000pcs per month |
| Delivery Time: | 7 - 10 working days after received your payment |
| Packaging Details: | carton |
| Size: | 120mm X 120mm X 38mm |
| Voltage: | 110 / 120V , 220 / 230V |
| Frequency: | 50 / 60Hz |
| Speed: | 2500rpm |
| Motor: | AC Brushless type |
| Power: | 25 / 16 W |

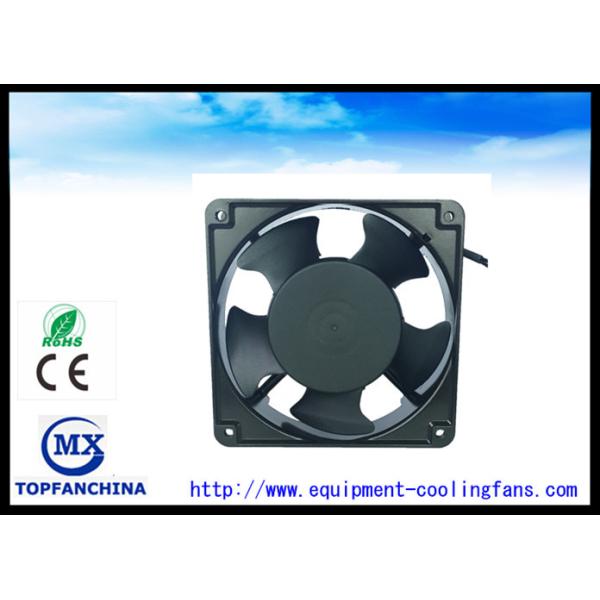

120mm Electronic Equipment Cooling Fans 110v / 220v AC Brushless Fan
AC fan , low noise and long life expectancy , are widely used in network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
Description :
Specification :
| Bearing Type | Ball Bearing |
| Function | IP55 , IP58 , IP66 , IP68 , Waterproof and dustproof |
| Frame and Impeller | 94V - 0 fireproof , metal frame and plastic impeller |
| Voltage | AC110V 120V 220V 240V |
| Temperature range | - 40 ℃ to + 125 ℃ |
| Expected Life | <80000 hours |
Model:
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No . | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3 / min | Inch - H2O | dB - A | g |
| B . S | 110 / 120 | 50 / 60 | 0 . 14 / 0 . 12 | 25 / 16 | 2500 / 2800 | 87/ 1 60 | 2 . 46 / 2 . 85 | 0 . 26 / 0 . 32 | 34 / 40 | 500 | |
MX12038 ABH22 | B . S | 220 / 240 | 50 / 60 | 0 . 22 / 0 . 27 | 25 / 16 | 2500 / 2800 | 87 / 160 | 2 . 46 / 2 . 85 | 0 . 26 / 0 . 32 | 34 / 40 | 500 |

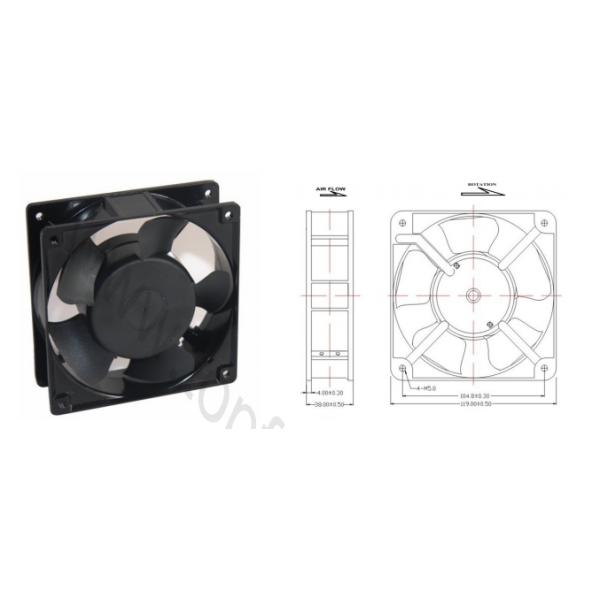

Dimension :

Fan Performance Curve :

Some Details :


|
