| Brand Name: | LEDIKA |
| Model Number: | FT5295 |
| Certification: | SGS / CE |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | negotiation |
| Payment Terms: | T/T 30% deposit, 70% balance |
| Supply Ability: | 50pcs per month |
| Delivery Time: | within 2-3 weeks |
| Packaging Details: | foam packing |
| Application: | Heavy Duty Project |
| Model: | FT5295 |
| Events: | Exhibition,auto show |
| Color: | Silver, Black |
| Connector: | Spigot |
| Main tube: | 50*4mm |
| Weight: | 20kg per meter |
| Size of truss: | 1m-4m |
| Material: | Aluminum 6082-T6 |
Aluminum Spigot Folding Truss 520mm*950mm for Auto Show



Description:

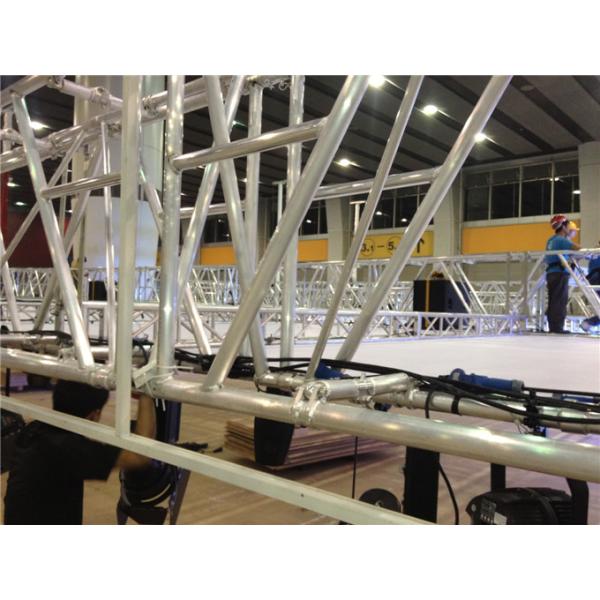

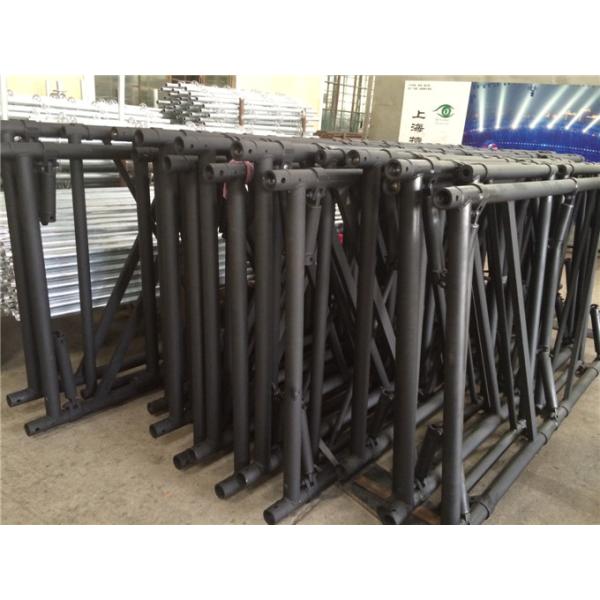

Heavy duty folding truss is normally use for big events like auto show, becuase it is heavy so we have designed the truss to be folding which is easy for transportion and fast for installation.

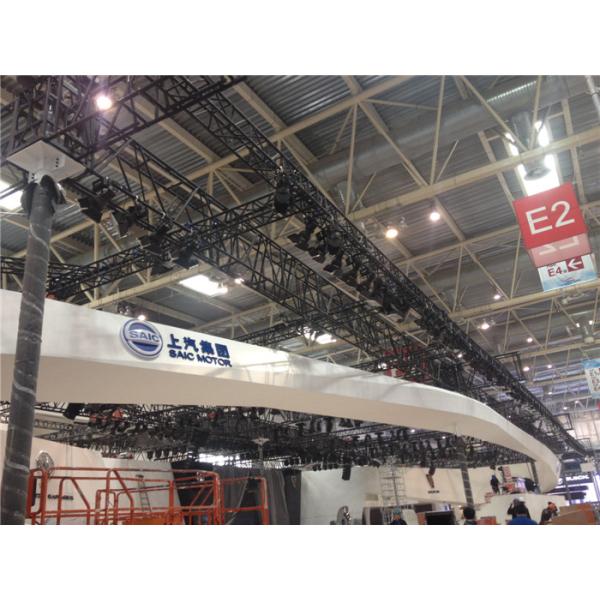

Auto show is held in Shanghai, Guangzhou and beijing every year, we provide rental business for that.
Specifications:
| Allowable Loading | |||||
| 6082-T6 50*4mm tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
| ( M ) | ( ft ) | ( KG ) | ( KG ) | ( KG ) | ( mm ) |
| 2.4 | 7.9 | 1898.7 | 791.1 | 1877.1 | 0.1 |
| 4.8 | 15.7 | 1866.0 | 388.8 | 1877.1 | 1.0 |
| 7.2 | 23.6 | 1832.7 | 254.5 | 1692.7 | 3.2 |
| 9.6 | 31.5 | 1800.3 | 187.5 | 1501.0 | 7.5 |
| 12.0 | 39.4 | 1767.2 | 147.3 | 1348.5 | 14.5 |
| 14.4 | 47.2 | 1734.1 | 120.4 | 1224.3 | 24.5 |
| 16.8 | 55.1 | 1701.0 | 101.3 | 1120.3 | 38.2 |
| 19.2 | 63.0 | 1668.8 | 86.9 | 1033.5 | 56.0 |
| 21.6 | 70.8 | 16634.9 | 75.7 | 958.7 | 78.1 |
| 24.0 | 78.7 | 1553.6 | 64.7 | 894.0 | 101.8 |
| 26.4 | 86.6 | 1455.8 | 55.1 | 837.5 | 127.0 |
| 28.8 | 94.5 | 1356.8 | 47.1 | 787.9 | 153.5 |
| 31.2 | 102.3 | 1253.4 | 40.2 | 743.6 | 180.4 |
| 33.6 | 110.2 | 1153.4 | 34.3 | 704.1 | 207.2 |
| 36.0 | 118.1 | 1055.1 | 29.3 | 668.6 | 233.0 |
Advantages
1. 15 years perfessional stage truss big events experience since
2001.
2. Projects case are cover to all over the world.
3. LEDIKA Brand is famous in many countries and government tender
brand.
4. OEM and R&D support.
5. We attend to prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have TUV and ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008
Beijing Olympic Games, Asian Games, Shanghai Expo and World Youth
Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working
production process.
10. Life-time after sales service.
|
