| Categories | Precision Ball Bearings |
|---|---|
| Brand Name: | UMT |
| Model Number: | SR144K |
| Certification: | ISO9001:2000 |
| Place of Origin: | China |
| MOQ: | 100 piece / pieces |
| Price: | US$ 0.01 - 50 / piece |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal |
| Supply Ability: | 100000 piece / pieces per Month |
| Delivery Time: | 2-7days After receiving deposit |
| Packaging Details: | 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets;2. plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement |
| Structure: | Miniature Bearing |
| Type: | ball bearing |
| Clearence: | C0 C2 C3 C4 C5 |
| Vibration: | Z1V1 Z2V2 Z3V3 Z4V4 |
| Sample: | Avaliable |
| Seals type: | ZZ , Open |
| Number of Row: | Single Row |
| Material: | Chrome Steel/GCr15 Stainless Steel |
| Precision Rating: | P6 P5 P4 P2 |
| Service: | OEM Customized Services |
| Cage: | Steel Cage.copper Cage.nylon Cage |

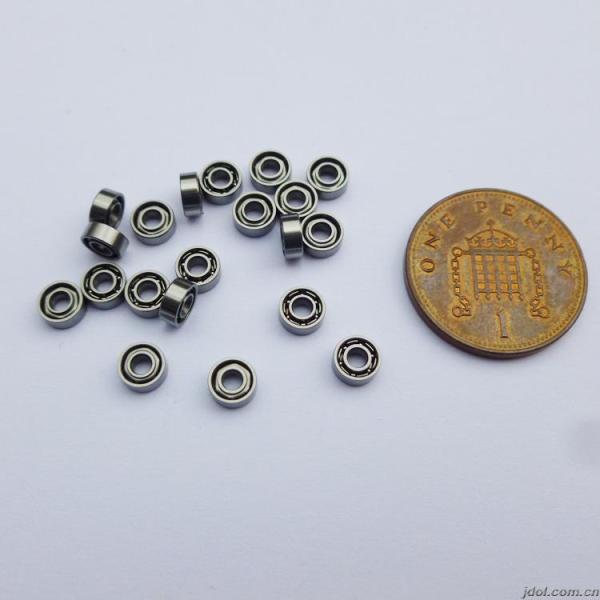

MINIATURE BEARING APPICATION
Bit is one of the most important part of the drill.It is shorter and highly durable enough to withstand very
high speed, and then produced by high temperature.Air turbine engine between two high-speed bearing,
and wrapped in a bit, directly through a series of transmission shaft and gear to drive the drill bit.The drill
bearing so as to achieve the high speed of the key factors.
Specifications:
High precision Flange ball bearing SR144K1TLW02 for dental drill engine | |
Model Number | miniature ball bearing SR144K1TLW02 |
Inside Diameter | 3.175mm |
Outside Diameter | 6.350mm |
Width | 2.380mm |
Net weight | 0.003kg |
Seals Type | ZZ , 2RS , Open |
Material | Chrome steel, Stainless steel |
Model Numbers | SR144K1TLW02 |
Certificate | ISO9001:2008, ISO/TS16949 |
Other Service | Design service, Buyer label service |
Packaging Details | Industrial Packing, Individual Boxed Packing, or OEM |
Delivery Detail | 2-7 days after receiving the payments or deposit |
Quick Detail:
1. Structure: mniature ball bearing SR144K1TLW02
2. Type: Ball Bearing
3. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO,NACHI , IKO , FAG ect.
4. Bore Size: 3.175mm
5. Outside Diameter: 6.350 mm
6. Net weight: 0.003kg
7. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
10. Place of Origin: Japan
11. Cage: Steel,Brass,Nylon
12. Clearance: C0,,C2,C3,C4,C5
13. Vibration: V1,V2,V3, V4
14. Service: OEM Service & Good Service
15. Sample available: Yes
16. Manufacturer: Yes
Different Kind Of Model Dental Bearings:
| Model | Size |
| SFR144TL | 3.175 x 6.350 x 2.380mm |
| SR144TLZW | 3.175 x 6.350 x 2.779 mm |
| SR144K1TLKZW | 3.175 x 6.350 x 2.779 mm |
| SR144K1TLW02 | 3.175 x 6.350 x 2.380 mm |
| SFR144TLN | 3.175 x 6.350 x 2.362 mm |
| SR133-5TLN | 2.350 x 5.000 x 1.500 |
| SR144TLW1.9N | 3.175 x 6.350 x 1.910 mm |
| SR144K1TLKZWN | 3.175 x 6.350 x 2.779 mm |
| SR144K1TLZWN | 3.175 x 6.350 x 2.779 mm |
Competitive Advantage:
1. Quality level: reach the same level as the Japanese and European bearings
2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)
3. Less coefficient of friction
4. High limiting speed
5. Large size range
6. variations of structure
|
