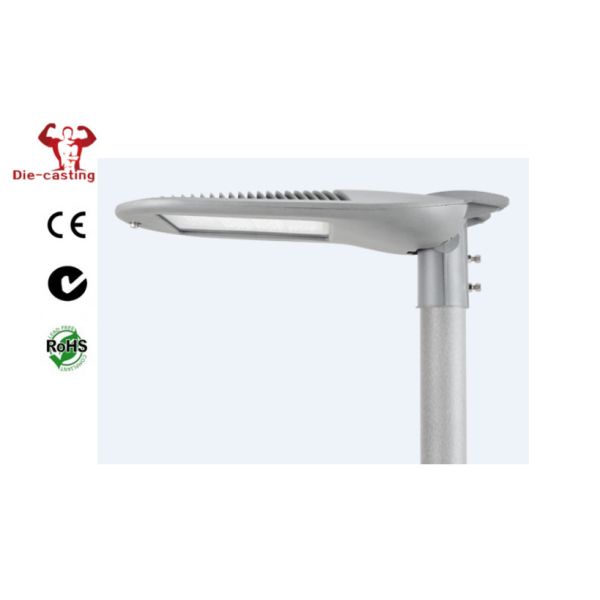

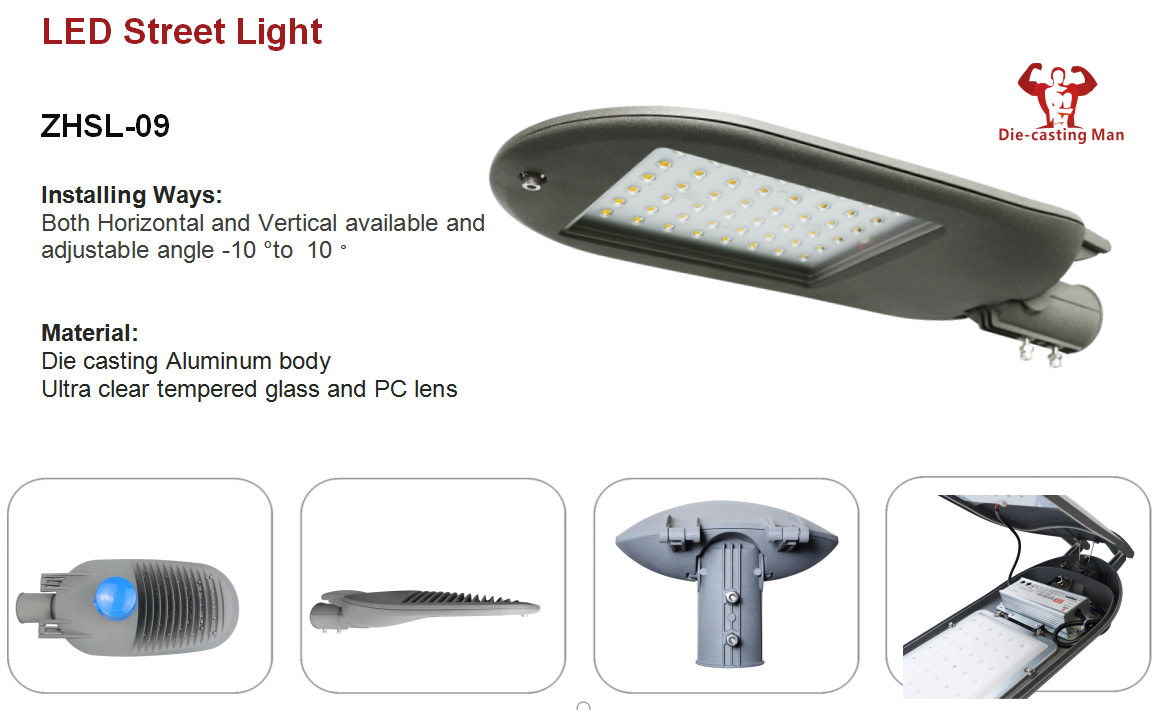

Aluminum Die Casting 60W Outdoor LED Street Light Housing / Street Lighting Fixture
Product Description:
| Code | ZHSL-09-30 | ZHSL-09-50 | ZHSL-09-100 | ZHSL-09-150 |
| Power | 40W | 60W | 100W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Efficiency | >120LM/W | >120LM/W | >120LM/W | >120LM/W |
| Voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 | 50000 | 50000 |
| IP Rate | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ50/60mm | Φ50/60mm | Φ50/60mm | Φ60/70mm |
| Installation Height | 4-7m | 6-8m | 8-10m | 10-12m |
| Net Weight | 3.4kg | 6.0kg | 3.4kg | 9.0kg |
| Gross Weight | 4.6kg | 7.0kg | 4.0kg | 10.5kg |
| Packing Size(mm) | 490*250*210/2pcs | 520*250*210/2pcs | 675*315*155/1pcs | 895*395*175/11pcs |
Product size:
| Code | ZHSL-09-40 | ZHSL-09-50 | ZHSL-09-100 | ZHSL-09-150 |
| L(mm) | 409 | 485 | 622 | 846 |
| W(mm) | 180 | 230 | 295 | 367 |
| H(mm) | 92 | 98 | 112 | 134 |
Product Advantage:
This series is a high-performance street lighting available in four
sizes.

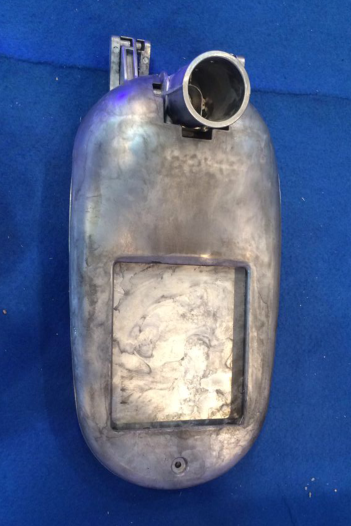

The luminaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficacy up to 120 lm/w and will be capable of producing
up to 24000 luminaire lumens at 4000K finished in Grey or black as standard.


Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
We are a professional Die casting factory for around 30years.
|
