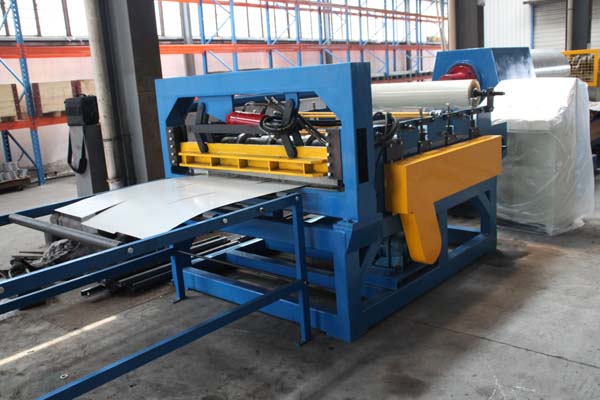

Galvznized Roof Panel Metal Slitting Line For Cold - Rolled Metal Plates

Categories Metal Slitting Line
Brand Name: bluesteel
Model Number: slitting line
Certification: ce
Place of Origin: China
MOQ: 1
Price: negotiable
Payment Terms: T/T or L/C
Supply Ability: 20sets /month
Delivery Time: 100days
Packaging Details: spare partsin wooden box,other plastic film cover
Thickness of coiled plate:: 1.δ=0.3—3mm;
Width of coiled plate:: slitting 1800mm
Precision of slitting:: width tolerance: ±0.1mm;
Slitting speed:: 0—50m/min(adjustable)
Loading capacity of uncoiler:: 20T
Coil I.D:: ф508mm—ф610mm; two-step pattern
Coil O.D:: ≤ф1600mm;
Main shaft diameter of slitter:: ф240mm; material 40Cr
Width of slitting steel:: ≥35mm
Slitting blade:: ф240×ф350×15; 28 pcs, cutting strips: 13 pcs;
Material of slitting blade:: 6CrW2Si;
Hardness of blade:: HRC58—60;
Recoiler I.D:: ф508mm, loading capacity: 15T
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Galvznized Roof Panel Metal Slitting Line For Cold - Rolled Metal Plates

Galvznized Steel Panel Slitting Line Machine For Metal Roof Panel Stainless Cutting Machine


Specifications:



Technical data of steel corrgated roll forming machine

Suitable material

color steel sheet;0.3-0.7mm,

Working speed

about10-16m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 3 Kw(Depend on final design)

Hydraulic station power: 7.5Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)


Description:


Fashionable design BLFM.


producing process:


Product:


We can also customize the products according to customer ' s requirements


Competitive Advantage:

1), Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We

need your machines running in order to keep your business running.

2), Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly

3), Q: How does your factory do regarding quality control?
A: Quality is priority.bluesteel People always attach great importance to quality control from the very

beginning to the end of the production. Every product will be fully assembled and carefully tested before

it's packed for shipment.

4), Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name
