| Categories | marine environment equipment |
|---|---|
| Place of Origin: | China |
| Brand Name: | Gathering |
| Model Number: | XH-S1 |
| Certification: | CCS,EC |
| Price: | $1 |
| Packaging Details: | Plywood or as your request |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, LC,western union |
| Supply Ability: | 10 sets/month |
| MOQ: | 1 set |

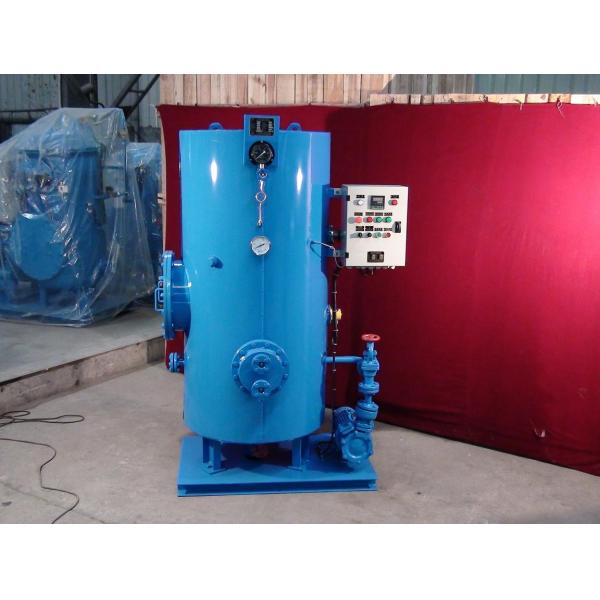

Electric Steam Heating Hot Water Tank for Sale
1.Highquality.
2.Competitive price.
3.Latest technology
4.Ample supply and prompt delivery.
| Type | ZDR Series | |||||
| Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 |
| Working pressure(Mpa) | 0.4 | |||||
| Design Pressure(Mpa) | 0.45 | |||||
| Test Pressure(Mpa) | 0.3 | |||||
| Water inlet Temp.(ºC) | 15 | |||||
| Water outlet Temp.(ºC) | 65 | |||||
| Steam consumption(kg/h) | 27.5 | 45 | 75 | 120 | 325 | 325 |
| Steam hot water capacity(kg/h) | 275 | 450 | 750 | 1200 | 3250 | 3259 |
| Steam hot water area(m2) | 0.24 | 0.38 | 0.6 | 1.0 | 2.6 | 3.5 |
| Electric heatng water(kg/h) | 90 | 140 | 180 | 280 | 360 | 540 |
| Electric heating power(kw) | 6 | 9 | 12 | 18 | 24 | 36 |
Composition of stainless steam electric heating hot water tank
-Pressure Gauge: showing the pressure in tank
-Thermometer: showing the water temperature in tank.
-Main Body
-Temperature Controller: controlling electric heater to begin or
stop heating when water temperature changes
-Safety Valve: releasing the pressure in tank when pressure more
than 0.42MPa
-Electric Control Box
-Liquid Level Relay
-Electric Heater
-Steam Heater
-Discharge Valve
-Bolt
-Nut
-name plate
|
