Stainless steel cryogenic air separation process Petroleum and natural gas

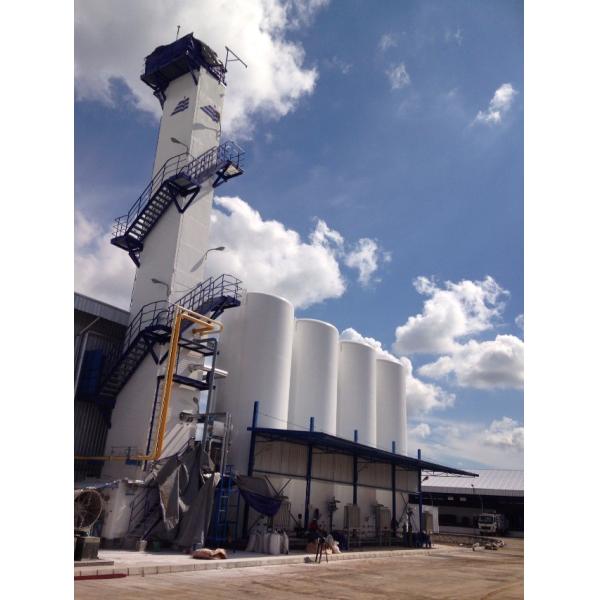

Cryogenic Air Separation Plant KDON-400/2500 Nm3/h Petroleum and natural gas


Specifications:

Standard Product Sheet for the Cryogenic Air Separation Plant KDON – 350~500 Nm3/h

Typical Product: KDON-400/2500 Cryogenic Air Separation Plant

Output, purity and pressure

Description:

The process of this KDON-400/2500 Cryogenic Air Separation Plant utilizes turbine expansion with fan braking, and utilizes reflux expansion double column to produce oxygen and nitrogen.

A small part of purified process air is extracted out as instrument air; the rest flows to the bottom of nitrogen column to participate in rectification, in such way the nitrogen gas is obtained at the top of nitrogen column, while the oxygen enriched liquid air from the bottom is throttled and flows into the condensation side of condenser evaporator, which is used to condense the gas nitrogen at the top of nitrogen column. Part of the nitrogen gas from the top of nitrogen column is extracted as product, and the other part is sent to the condenser evaporator of oxygen column to be condensed, and then it is sent back to the top of lower column to follow rectification. The liquid air from extracted from the lower part of condenser evaporator of nitrogen column is subcooled by subcooler, and then throttled to the top of oxygen column to follow rectification. Oxygen gas extracted from the lower part of oxygen column is sent to the client after rewarmed by heat exchanger. Waste nitrogen extracted from the bottom of main condenser evaporator is fed to the expander for expansion refrigeration through rewarmed in main heat exchanger.

Applications:

1. Chemicals
2. Pharmaceutical and biotechnology
3. Petroleum and natural gas
4. Animal husbandry
5. Electronic Gas
6. Spectroscope Gas

Competitive Advantage:

1. Good quality materials
2. Widely sales around the world
3. Engineers available to service machinery overseas
4. Economization of energy,
5. Up-to-date international advanced air separation technology is incorporated
6. Our company owns the national enterprise technical center

       Hangyang Cryogenic Liquefaction Equipment Co., Ltd. is one of the holding subsidiaries of Hangyang Co.,Ltd.(stock code:002430), it is organized on the basis of the original Small Scale of ASU Company of Hangzhou Hangyang Co,.Ltd. It is the major engineering, research and manufacturing base for small size of ASU and liquefaction plants in China, It is located in Hangyang Manufacturing Base in Lin'an Economic Development Zone, the address of sales office is No. 592, Zhongshan North Road, Hangzhou. It undertakes engineering consulting, design and manufacture, assembled construction design, installation and commissioning and supply of parts for medium and small size of ASU with its professional quality. It is the main base of design, research and manufacture for the domestic medium and small size of oxygen/nitrogen generating plants, liquid oxygen/liquid nitrogen plants, oxygen/nitrogen liquefiers, high-purity nitrogen generators, vacuum pipes and Pressure Swing Adsorption (PSA) for oxygen/nitrogen generating, etc.; Meanwhile, it is also the professional manufacturer for integrated assembly or skid type of medium size of ASU for leaving workshop by Hangyang, its abilities of design and manufacture for integrated assembly of medium size of ASU reach the leading domestic level. Our company has the independent import and export trade qualification.

      Our company possesses professional technical personnel teams of design and EPC engineering of ASU and also possesses design ability of product such as independent process calculation, project design, unit design, project EPC. The manufacture base of our company was relocated to new site in 2009. Recently, the floor area is 40.34 acres. Combinating with relocation, the imported and set-up professional manufacture production tools, moulds and equipment forms the manufacture ability for manufacture ASU whose capacity is below 30,000Nm3/h. Our company carries out the international administration concept and obtains authentication certificates of management system such as ISO9001, ISO14001 and OHSAS18001 of DET NORSKE VERITAS. Meanwhile, we obtains manufacturing license for pressure vessels manufacture D1 and D2, Zhejiang new high-tech enterprise certificate and small and medium-sized technology-based enterprise certificate, our company possesses impeccably professional manufacturing credentials for medium and small size of ASU.

     Our company sets product research, manufacture, marketing and service in one to elaborately provide general customers superiorly coordinated service on the basis of decades experience in design and manufacture and administration concept by Hangyang. Products involve aspects such as metallurgy, petrifaction, electron, machinery, building materials and aerospace. Our products are not only sold well throughout China, but also sold to the West, and our company becomes the designated supplier for several well-known gases investment companies abroad. In the cooperation with transnational large gases companies, our company absorbs and imports the advanced design concept, strict administration program, exquisite manufacturing technology so as to lead our company to develop in the direction of diversification, exquisite products and large-scale. Hangzhou Hangyang Cryogenic Liquefaction Engineering Co., Ltd. undertakes EPC works of ASU under our company.
