FDA Approved Cabinet X Ray Baggage Inspection System Ease Use

Categories Baggage And Parcel Inspection
Brand Name: SECUSCAN
Model Number: AT5030C
Certification: CE, ISO, US.FDA, Inida AERB certificate
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/month
Delivery Time: 7 days
Packaging Details: Wooden Packing
Material: stainless steel frame
Image: color
Display: 17 inch LCD monitor
Computer CPU: Core i5
Hard driver: 500GB
TIP: threat image training
Software: multi-language support
Film Safety:: ISO1600 Film
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FDA Approved Cabinet X Ray Baggage Inspection System Ease Use

FDA Approved Cabinet X Ray Baggage Inspection System Ease Use

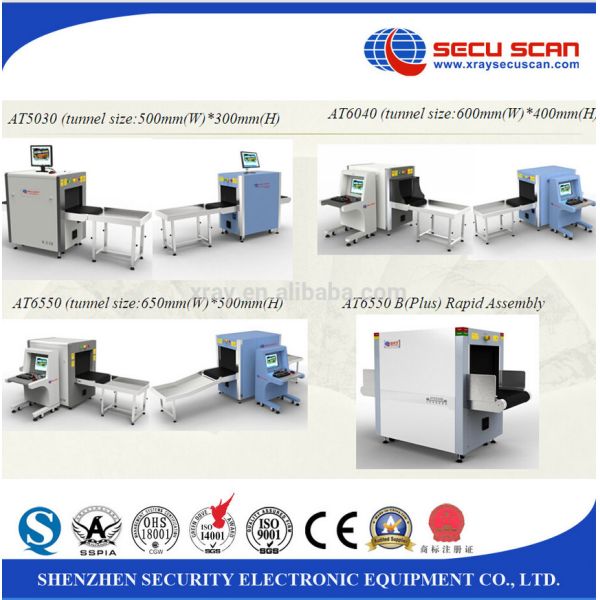

SECUSCAN different size x ray system :


1) AT5030 : 500 width * 300 height mm

2) AT6040: 600 width * 400 height mm

3) AT6550: 650 width * 500 height mm

4) AT8065: 800 width * 650 heigh mm

5) AT10080: 1000 width * 800 height mm

6) AT100100: 1000 width * 1000 height mm


Specifications:


Conveyor Speed:

0.22m/s

Wire Resolution:

40AWG

Penetration:

34 mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward or downward

Generate angle:

80 degree

Anode Voltage:

140~160Kv

Anode power:

0.2 to 1.2 mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic), 16bit Deep

Monitor:

High Resolution Color, LCD Accord, 17 inch

Image Processing:

Edge enhancement, image strengthening, image lightening,

reducing darkening, image returning, image retrieval.

Image Grey Level:

65536

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 100,000 pictures in real time

Zones & Zoom:

1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen

continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

187~ 240VAC, 50/60Hz

Power Consumption:

1.0 KW

Noise:

<58db


Applications:


Airports,

Transport terminals,

Buildings,

Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,

Prisons,
Hotels,
Schools ,

Convention centers,
Security checkpoints,

Special events location


Competitive Advantage:


Integrated, cost Effective, Turn-Key Security

Fit for small Baggage and Parcel Security Inspection.

Increased detection capability

Friendly interface for ease-of-use

Reliable performance and uncompromising value

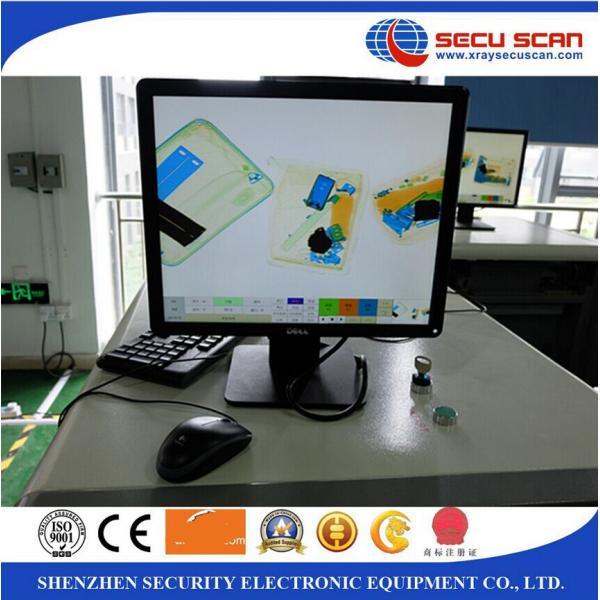

High resolution monitor :



Multi-function keyboard with touch screen function :
