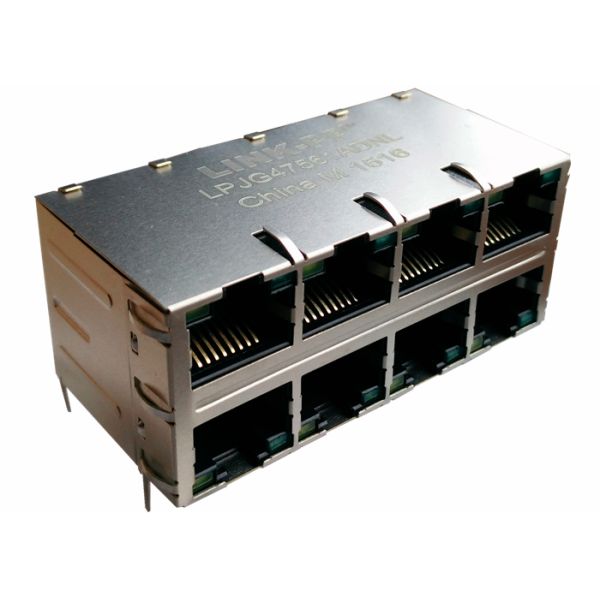

85727-1004 Stacked RJ45 85727-1006 2X4 Gigabit Magnetic Jack Molex 85727-1008

85727-1004 Stacked RJ45 85727-1006 2X4 Gigabit Magnetic Jack Molex 85727-1008

85727-1004 Stacked RJ45 85727-1006 2X4 Gigabit Magnetic Jack Molex 85727-1008
85727-1004 Stacked RJ45 85727-1006 2X4 Gigabit Magnetic Jack Molex 85727-1008
Categories RJ45 Multi Port Jack
Brand Name: LINK-PP
Model Number: 85727-1004
Certification: UL,RoHS,Reach,ISO
Place of Origin: GuangDong, China
MOQ: 50/500/1000/60K
Price: $0.11-$24
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Delivery Time: Stock
Packaging Details: Tray
Part Number: 85727-1004 / 85727-1006 / 85727-1008
Connector Type: Gigabit Magnetic Jack
Ports: 2X4
Mounting Type: Through Hole-Solder
Orientation: 90～ Angle (Right)
Shielding: Shielded, EMI Finger
Contact Now
Company Info.
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

85727-1004 Stacked RJ45 85727-1006 2X4 Gigabit Magnetic Jack Molex 85727-1008

85727-1004 / 85727-1006 / 85727-1008 Gigabit Magnetic Jack 2X4, LEDs Green and Orange/Green and Orange


General Specifications


ParameterValue
CategoryModular Jacks and Plugs
DescriptionGigabit Magnetic Jack 2x4, LEDs Green and Orange/Green and Orange
CommentsWith LED
Component TypePCB Jack
MagneticYes
Performance CategoryCat 5, Cat 5e
Power over Ethernet (PoE)Non-PoE
Product NameMagnetic Jack, RJ45

Materials Specifications

ComponentMaterialPlating / Notes
ShieldBrassNickel pre-plating
Plastic HousingPolyester (PBT), Black, 30% Glass ReinforcedUL 94V-0 flame retardant rating
RJ45 TerminalsCopper AlloyContact Area: 0.76 μm Gold over 1.9 μm Nickel
PHY Terminals—Tin plated

Electrical Specifications

ParameterValue
Current - Max per Contact1.5 A
Voltage - Maximum125V AC (RMS)
Grounding to PanelPanel Ground Tab
Grounding to PCBYes
Shielded

Yes


Physical Specifications


ParameterValue
Durability (Mating Cycles Max)750
Inverted / Top LatchYes
Jack Height25.43 mm
Lightpipes / LEDsLEDs
Net Weight42.060 g
OrientationRight Angle (Side Entry)
Packaging TypeTray
PCB RetentionN/A
PCB Thickness - Recommended2.20 mm
Pitch - Mating Interface1.02 mm
Plating Min - Mating0.762 µm
Port Configuration2x4
Positions / Loaded Contacts8/8
Temperature Range - Operating0°C to +70°C
Termination Interface StyleThrough Hole
Wire / Cable Type

CAT 5, CAT 6

Other Compatible List

LINK-PP RJ45 Connectors cross the following part number. Please contact us for details
85510-512685727-100385728-100285728-1012
85510-512785727-100485728-100385728-1014
85510-512885727-100685728-100485793-1006
85543-700385727-100885728-100685727-1002
85586-100385727-101285728-100885727-1001
85586-100585727-101385728-100185719-0003
