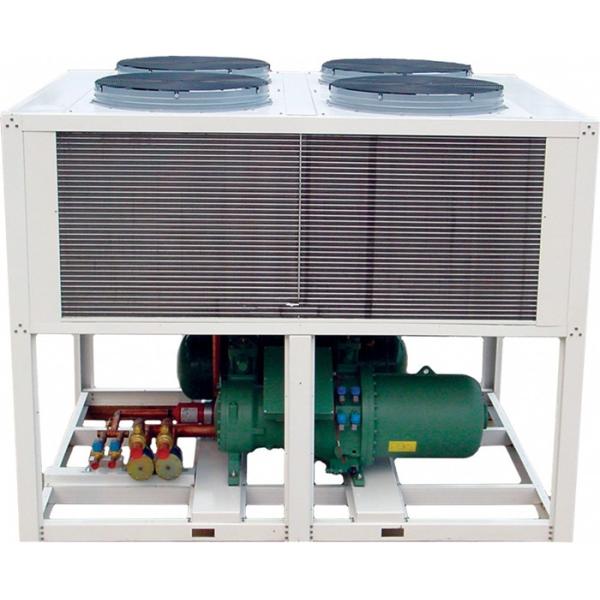

50 Ton Eco-friendly Air Cooled Screw Water Chiller

50 Ton Eco-friendly Air Cooled Screw Water Chiller

1.Main data

Cooling capacity: 50Ton

Input power: 198kw

Compressor:Bitzer(60kw)

Chilled pump:38m3/h

Application industry:Plastic injection, Plastic molding,Chemical and etc.

2.Parameter

Model	Unit	MG-80AS
Nominal cooling capacity	kcal/h	171672
Nominal cooling capacity	KW	198
Input power	KW	72
Set temp. range	3ºC~35ºC
Power supply	3PH-380V-50HZ
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Semi Hermetic screw
Compressor	Power(kw)	90
Condenser	Type	Finned copper tube+low noise outer rotor fan
Condenser	Cooling air flow(m3/h)	80000
Evaporator	Type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	38
	Inlet and outlet pipe diameter	DN800
Dimension	Length(mm)	2500
	Wide(mm)	2100
	High(mm)	2400
Weight	kg	2310
Safety protection	Compressor over temperature, over current, high and low pressure, Phase sequence, phase-missing

Note:

Design Cooling Condition: Chilled Water In/Out 12°C/7°C;Ambient 35°C

Models: MG-AS Cooling Capacity: 109KW-566KW

-Semi-Hermetic Screw Compressors

-Tube in Tube Type Heat Exchanger for Evaporator

-V Type Fin Air Cooled Condenser

-Water Pump and Water Tank are an optional to built in the chiller

-Chilled Water Inlet/Outlet Temperature 12°C/7°C,Ambient 35°C

-Mostly Used for Central Air Conditioning Cooling

3.Components

No	Parts	Number	Brand	Qty	Warranty (Year)
1	Semi-hermetic screw compressor	-----	Hanbell(Taiwan)	1	1
2	Expansion valve	T series/POS	Danfoss(Denmark)	1	1
3	Filter	A Series	ALCO(USA)	1	1
4	Pressure gage	DN63 Series	Fuco(Italy)	2	1
5	Shell and tube condenser(Copper Kobe, Japan)	MG-120W	MGREENBELT	1	1
6	Shell and tube Evaporator(Copper Kobe, Japan)	MG-120D	MGREENBELT	1	1
7	Pressure controller	606XMM	Saginomiya	1	1
8	Controller	Microcomputer control	Punp(USA)	1	1
9	A.C.contactor	220V	LG	1	1
10	Electrical accessory	— —	Schneider or Omron	1	1
11	Reservoir	— —	— —	1	1
12	Refrigerant	R407C	Dupont	1	3

4.Details of chiller
