JH21-125 Hydraulic Press Metal Shelf Rack Roll Forming Machine Chain Drive 1.5-2.5mm Galanized Steel

125 Ton Hydraulic Press Metal Shelf Rack Roll Forming Machine Chain Drive 1.5-2.5mm Galanized Steel

Technical Parameter

1. Suitable Plate Material: thickness 1.5-2.5mm, Galvanized steel

2. Working Speed: 12-15meters / min

3. Forming machine: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts

7. Main Power with reducer: 11KW

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW

11. The whole machine is controlled by Panasonic PLC

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

14. Encoder--Omron, Japan

15. Electric parts--Schneider

16. Outline of main about 7500mm*800mmm*800mm

17. Weight : about 5 tons

Main Components

1. 5 ton hydraulic decoiler-------------------------------- 1Set

2. Leveling device------------------------------------------ 1Set

3. Servo feeding device---------------------------------- 1Set

4. Punching machine-------------------------------------- 1Set

5. Main roll forming machine---------------------------- 1Set

6. Hydraulic station----------------------------------------- 1Set

7 Cutting device-------------------------------------------- 1Set

8 Finished products tabel--------------------------------- 2Set

9 PLC control system-------------------------------------- 1Set

7. Spare parts------------------------------------------------ 1Set

Applications

Storage rack, storage shelf, Steel rack,steel shelf, rack beam

Working Flow

Decoiler ---- Servo Feeding --- Punching--- Levelling--- Roll Forming ---- Cutting ---- Run out table

Profiles Of Rack Shelf

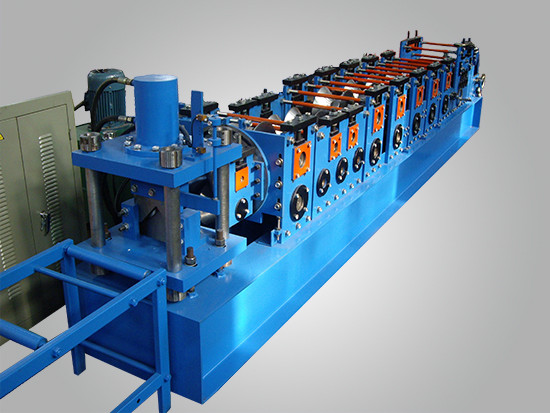

Forming Machine Pictures
