Filtration Solutions Parts Diaphragm Pneumatic Pulse Valve CA35T RCA35T

Filtration Solutions Parts Diaphragm Pneumatic Pulse Valve CA35T RCA35T

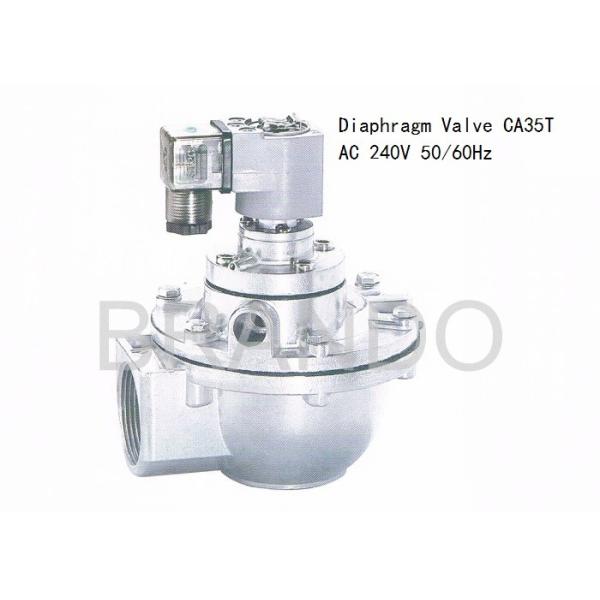

The diaphragm pulse valve BGZ35, similar as CA35T type, is specially designed for cleaning dust, with high performance of cleaning ability. The diaphragm valve is made of copper wiring solenoid coil, USA original 430FR armature assemblies, and precison machined die casting ADC12 alimininum. We highly welcome customer to send us enquiry, and we also can produce as your drawing.

Our pulse jet valve is suitable for:

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters and envelope filters.

Features of 1 1/4" Diaphragm Pulse Jet Valve:

1, Class leading performance coupled with extremely rapid response
2, Cleans more filter area per valve than before
3, NO spring failures
4, 1 MILLION CYCLES guaranteed
5, Proprietary engineering thermoplastic elastomer blend for consistent performance throughout the temperature and pressure range
6, Environmentally endurance tested at the extremes

Air Clean System Diaphragm Pulse Jet Valve Construction:

Pulse Jet Valve Maintenance:

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

Diaphragm and pilot inspection should be conducted annually.

Detailes of G1 1/4" Nominal Port Size Diaphragm Pulse Jet Valve and It's Overall Dimensions:

Half Inch Port Size Pulse Jet Valve Technical Parameters:

Pulse Valve Characteriestic And Performance

Pulse Jet Valve Installation:

1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

2, Ensure tank and pipes are free from dirt, rust or other particulate.

3, Ensure supply air is clean and dry.

4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

5, Apply moderate pressure to system and check for installation leaks.

6, Fully pressurise system.

7, Test fire and listen for proper actuation and crisp pulse noise.

We Alse Sell Solenoid Coil and Armature Assembly, Welcome Your Enquiry:

Welcome your any question, we will response at once.

Pls contact us: brandon.bao@brandopneumatic.com

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
