| Categories | Intelligent Valve Positioner |
|---|---|
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Place of Origin: | CHINA |
| MOQ: | Negotiation |
| Price: | US $333 - 777 / Piece |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Delivery Time: | according to order |
| Packaging Details: | carton box |
| Model Number: | C-TOP |
| Item: | Intelligent valve position / controller |
| Menu: | Bilingual menu |
| Manual operation: | Optional |
| Availability: | For each kind of valve |
| Input: | 0 / 4 - 20mA |
| Output: | 0 / 4 - 20mA |
| BUS: | AS-I BUS |
| Company Info. |
| DONJOY TECHNOLOGY CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

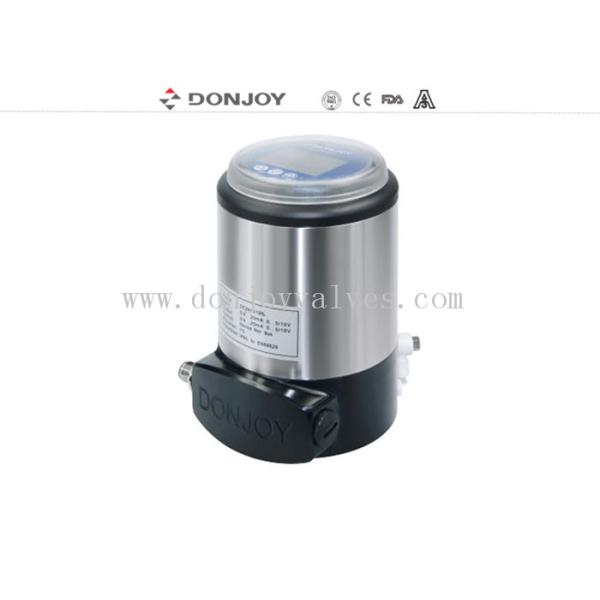

Stainless steel Intelligent electric control unit support manual operation
Specification
Product Name: | Stainless steel Intelligent electric control unit support manual operation |
Valve Body Material: | SS304 / 316L |
Seal Material: | EPDM (standard) FPM / SILICON / NBR, FDA177.2600 |
Available size: | DN25 - DN100 |
Available connection: | Clamp connection etc. |
Available standard: | 3A / DIN / SMS / RJT / ISO / IDF |
Operated: | Electric power |
Structure | With actuator |
Certificate: | 3A, CE, FDA, ISO |
Feature: | bilingual menu |
Structure: | With electric control unit |
BUS: | BUS RS485 |
Availability: | For each kind of valve |
Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
Pressure: 10bar
Structure
With the electric control unit.
Operation
By electric power
BUS
AS-I BUS (optional)
Availability
Suitable for each kind of valve
Display


|
