Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS

Quick Details:

Payment & Shipping Terms:

1. Specifications

(1) Technical Parameters

Accessories List

2. Applications

The DDTE073 Integrated Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

3. Description

The cabinet is two compartments cabinet. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.

3.1 Wire Routing Design

Feeder cable and other external cables all use bottom wiring method.

3.2 Grounding Protection

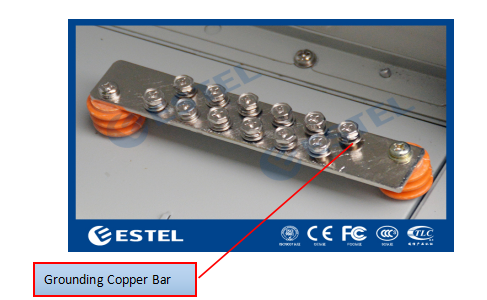

• The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
• The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
• Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

3.3 Door lock theft proof design

(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

(2) Three point lock

3.4 Connection and Fastening

• Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hinges use inner hinge mode.

3.5 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

4. Features

• The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
• Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
• All the cables used in the cabinet are made from flame retardant materials.

5. Packing and Shipping

Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
