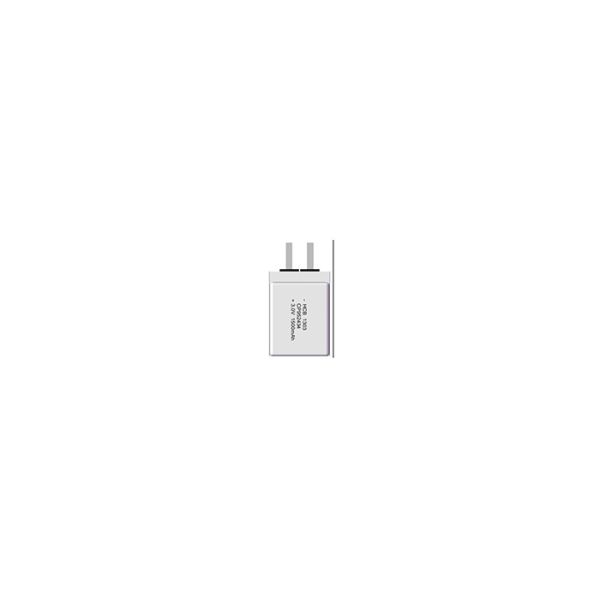

CP952434 1500mAh LiMnO2 Lithium Flat Battery

Categories Lithium Pouch Cell
Brand Name: HCB
Model Number: CP952434
Certification: UN/CE/UL
Place of Origin: Hubei Wuhan
Price: negotiable
MOQ: 1K pcs
Payment Terms: T/T, L/C
Supply Ability: two million unit per month
Delivery Time: 35 work days
Packaging Details: Special design for Air/Sea/Courier transportation
Type: Non-Rechargeable
Cellpacking: Aluminum Laminated Film
Energy Density: 346Wh/Kg
Nominal Voltage(V): 3.0
Max Pulse Current(mA): 1000
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CP952434 1500mAh LiMnO2 Lithium Flat Battery

High Pulse 1500mAh Soft LiMnO2 Battery Non Rechargeable Long Shelf Life

Nominal Capacity1500mAh
Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage3.0 V
Maximum Continuous Current600mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current1000mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH

Operating Temperature-40℃ to +60℃
Battery DimensionSee drawing on pag
Max Weight13.0g
Self-discharge Rate2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life10 years
Ambient temperature 23±2℃

1. Battery Characteristic


  • High Voltage

We provide the rated voltage is 3.0V

  • High Energy Density

The specific energy density of each battery is 346Wh/kg, more than 50% higher than steel shell lithium battery under the condition of the same weight

  • Wide Operating Temperature Range

We provide a wide operating temperature range, from -40℃ to +60℃

  • Long Shelf Life

Under the condition of normal temperature, the battery self -discharge rate of no more than 2% per year


There is no voltage passivation problem, also need not activated after long time storage, install-and-play, ultra-high maintenance-free features


To meet the requirements of modern light & handy electronic products


Overall dimensions can be customized according to different demands, short new product development cycle, fully meeting customers personalized needs


The best safety and reliability of lithium battery, in the case of without any protection measures to withstand short-circuit and piercing severe test, etc.


2. Main Applications


  • Telecommunications

Wireless telecommunication devices

  • Infrastructures

Automatic meters (water meter, electric meter, gas meter), conventional meters, etc.

  • Tracking

RFID products, road toll transponder, IC cards, etc.


3. Manufacturing Advantages


  • Since 2007,HCB has started to produce Soft Pack Li-MnO2 Battery;
  • There are eight patents applied by HCB in Soft Pack Li-MnO2 Battery;
  • OEM is workable for HCB and there are varies available models for customers' choice;
  • More than 15 million pieces Soft Pack Li-MnO2 Battery are made and sold by HCB until now;
  • Most of HCB customers are terminal users, so we experienced in both civil and industrial applications.

4. Company Advantages


  • HCB has passed Quality Management System with the standard GB/T19001-2008/ISO9001:2008;
  • HCB Environment Management System meets the standard GB/T24001-2004/ISO14001:2004;
  • The drop test is workable of HCB battery;
  • The goods can be transported very safely because we can provide the report for the customers' reference;
  • CE test is available for HCB Battery;
  • We can provide you with the Rosh certificate if you need;
  • UL Standard is workable for HCB Battery;

5. FAQS of General Safety Instructions


  • In order to keep the battery safely, what should we do?

In order to store the battery, the environment should be dry enough.


  • Is it ok to continue to use the battery when the abnormal heat release or leakage occurs?

We need to stop using the battery when the abnormal heat release or leakage occurs.


  • What should you do if the children swallow the battery?

Keep battery out of the children. If swallowed, please contact a physician at once.


  • What the danger is if the battery is closed to the fire?

The batteries may be incinerated or mutilated if they are closed to the fire and it leads a possible burst or they may release the toxic materials.


  • If the positive and negative polarity of a battery is directly connected, what will happen?

If + and - polarity of battery is connected directly, it causes a short circuit and this may lead toxic gas and materials leakage or a big rupture.


  • If the batteries are soldered directly, what will happen?

The batteries can not be soldered directly. If they are directly soldered, it will cause short circuit and a gas and toxic material leakage or big rupture.


  • What will happen if the primary batteries are charged?

The primary batteries can’t be charged. This can cause gas leakage and will lead to violent rupture or fire.
