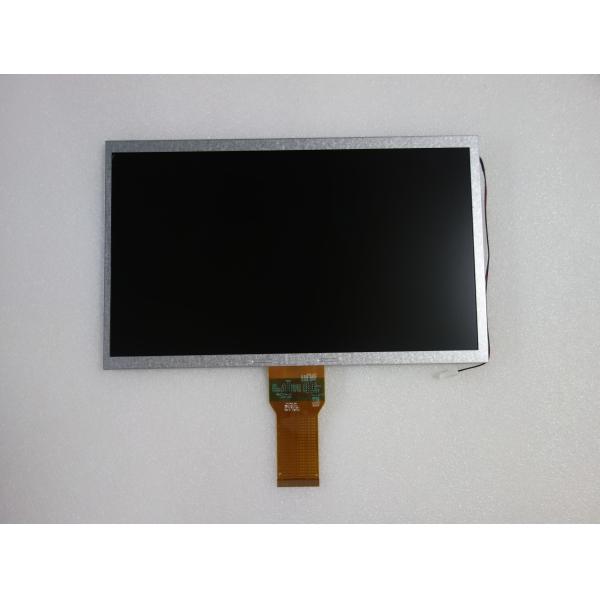

10.1 Inch a-Si TFT-LCD G101STN01.5 1024*600 Original Grade A For Industrial

Categories	AUO LCD Panel
Brand Name:	AUO
Model Number:	G101STN01.5
Certification:	ISO9001
Place of Origin:	Japan
MOQ:	1
Payment Terms:	T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability:	500PCS
Delivery Time:	1-3 Working Days
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size:	10.1 Inch
Resolution:	1024×600
Pixel Number:	1024(RGB)×600 (WSVGA)
Arrangement:	RGB Vertical Stripe
Active Area(mm):	222.72 × 125.28 (H×V)
Outline(mm):	235 × 143 × 5.5 (H×V×D)
Bezel Area(mm):	226.43 × 128.1 (H×V)
Treatment:	Antiglare, Hard coating (3H)
Luminance:	350 (Typ.)(cd/m²)
Viewing Angle:	70/70/60/60 (Typ.)(CR≥10)

Contact Now

Add to Cart

Company Info.

N&S ELECTRONIC CO., LIMITED

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1.AUO G101STN01.5 Mechanical Details

Pixel Features :	Resolution:1024(RGB)×600, WSVGA Dot Pitch(mm):0.0725×0.2088 (H×V) Pixel Format:RGB Vertical Stripe Pixel Pitch(mm):0.2175×0.2088 (H×V)
Mechanical Size :	Active Area(mm):222.72(H) × 125.28(V) Bezel Area(mm):226.43(H) × 128.1(V) Outline Dim.(mm):235(H) × 143(V) Depth(mm):5.0±0.5
Outline Features :	Form Style:Flat Rectangle Shape Style:- Aspect Ratio:16:9 (H:V) Orientation:Landscape type
Mounting :	Without
Other Spec :	Weight:340g (Max.) Treatment:Antiglare, Hard coating (3H)

2.AUO G101STN01.5 Optical Details

Basic Information :	Luminance(cd/m²) 350 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 70/70/60/60 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 7/9 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.310; Wy:0.330 Display Colors 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6638K White Uniformity 1.25/1.33 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 46% sRGB 65% coverage Adobe RGB 48% coverage DCI-P3 48% coverage Rec.2020 35% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.AUO G101STN01.5 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 15K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 9.3/9.6V (Typ./Max.) Current Supply 32.5mA (Typ.) Consumption 2.50W (Typ.)
Interface Features :	Position Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHSR-02VS-1 3.5 mm 2 pins 1 pcs BLE-2PINS-AC
Backlight Driver :	No

4.Service

5.FAQ

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
